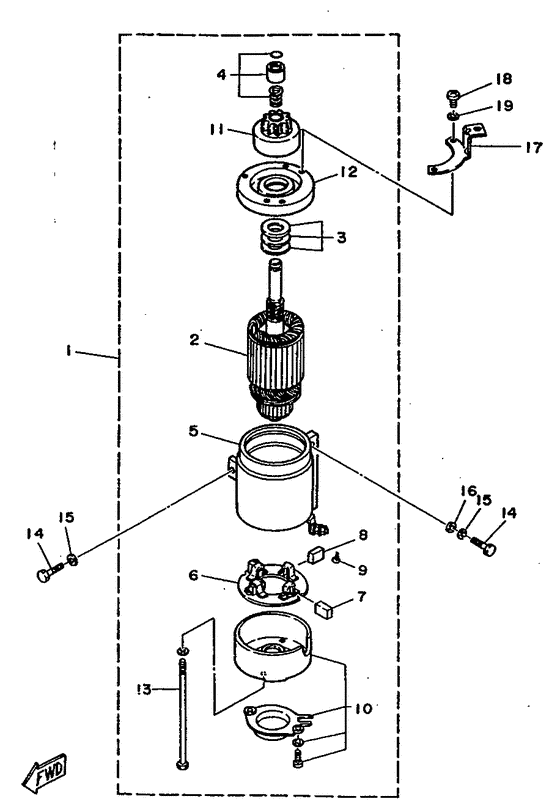

Electric starter Diagram Yamaha 90 ETOL/XL
- Year
- 1985
- Model
- 90A
- Model code
- 6H1
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Europe (General) (999)
- Colour
- White (WW; 0036)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
688-81800-10-00 Starting Motor AssyElectric motor assy |
688-81800-10-00 |
US $1,302.84 |
||
| replacement | |||||
|
01
|
01
688-81800-12-00 Starting Motor Assy |
688-81800-12-00 |
US $1,302.84 |
||
|
02
|
02
676-81850-10-00
Armature Assy
|
676-81850-10-00 |
— | ||
| replacements | |||||
|
02
|
02
676-81850-A9-00
Armature Assembly
|
676-81850-A9-00 |
— | ||
|
02
|
02
676-81850-11-00 Armature Assy |
676-81850-11-00 |
from US $524.27 |
||
|
03
|
03
676-81809-10-00 Washer Kit |
676-81809-10-00 |
from US $13.46 |
||
|
04
|
04
676-81857-10-00 Pinion Stopper Set |
676-81857-10-00 |
from US $12.12 |
||
|
05
|
05
688-81810-10-00
Stator Assembly
|
688-81810-10-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
663-81840-10-00 Brush Holder Assy |
663-81840-10-00 |
US $95.61 |
||
| replacement | |||||
|
06
|
06
663-81840-11-00 Brush Holder Assy |
663-81840-11-00 |
from US $76.08 |
||
|
07
|
07
663-81811-11-00 Brush 1 |
663-81811-11-00 |
from US $13.82 |
||
|
08
|
08
663-81812-11-00 Brush 2 |
663-81812-11-00 |
from US $13.14 |
||
|
09
|
09
663-81813-10-00 Spring, Brush |
663-81813-10-00 |
from US $7.23 |
||
|
10
|
10
663-81820-11-00
Rear Bracket Assembly
|
663-81820-11-00 |
— | ||
|
11
|
11
663-81832-11-00 Pinion Assy |
663-81832-11-00 |
from US $290.50 |
||
|
12
|
12
688-81830-10-00 Front Bracket Assembly |
688-81830-10-00 |
US $254.21 |
||
|
13
|
13
663-81826-10-00 Bolt |
663-81826-10-00 |
from US $9.35 |
||
|
14
|
14
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
14
|
14
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
14
|
14
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
14
|
14
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
15
|
15
92903-08100-00 Washer, Spring |
92903-08100-00 |
from US $1.63 |
||
| replacement | |||||
|
15
|
15
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
16
|
16
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
17
|
17
6H1-15771-00-00 Stay 1 |
6H1-15771-00-00 |
from US $17.71 |
||
|
18
|
18
978-03040-10-00
Screw, Pan Head
|
978-03040-10-00 |
— | ||
| replacement | |||||
|
18
|
18
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
19
|
19
92903-04600-00 Washer |
92903-04600-00 |
US $1.21 |
||
| replacement | |||||
|
19
|
19
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
