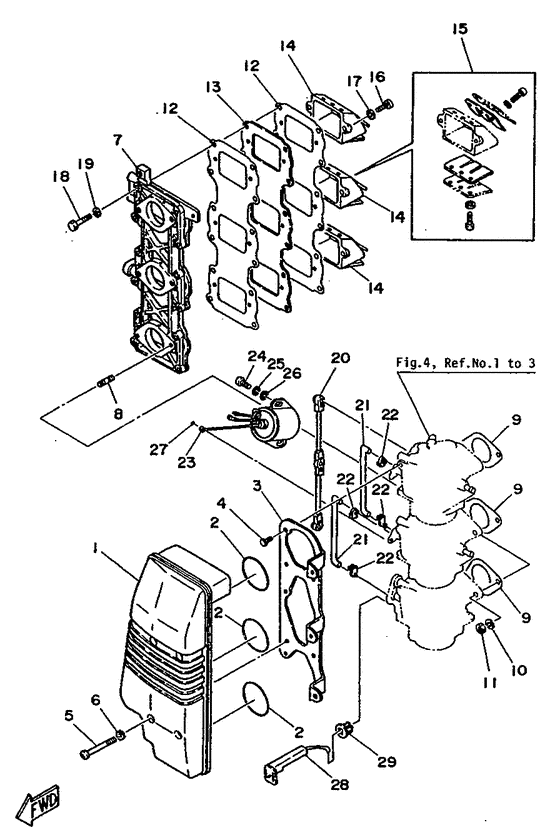

Intake 1 Diagram Yamaha 90 ETOL/XL
- Year
- 1985
- Model
- 90A
- Model code
- 6H1
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Europe (General) (999)
- Colour
- White (WW; 0036)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6H1-14440-00-00 Silencer Assy, IntakeSilencer comp. |
6H1-14440-00-00 |
US $76.82 |
||
| replacement | |||||
|
01
|
01
6H1-14440-02-00 Silencer Assy, Intake |
6H1-14440-02-00 |
from US $76.82 |
||
|
02
|
02
932-10460-44-00 O-Ring |
932-10460-44-00 |
from US $2.77 |
||
|
03
|
03
6H1-14413-00-00
Stay 1
|
6H1-14413-00-00 |
— | ||
|
04
|
04
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
04
|
04
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
04
|
04
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
05
|
05
97803-06055-00 Screw, Pan Head |
97803-06055-00 |
US $3.40 |
||
| replacement | |||||
|
05
|
05
985-80065-55-00 Screw, Panhed (Gc2) |
985-80065-55-00 |
from US $3.74 |
||
|
06
|
06
90209-06M05-00 Washer |
90209-06M05-00 |
from US $2.69 |
||
|
07
|
07
688-13641-00-94 Manifold, Intake 1 |
688-13641-00-94 |
US $126.28 |
||
| replacement | |||||
|
07
|
07
688-13641-01-00 CARBURETOR ASY 1 |
688-13641-01-00 |
from US $98.01 |
||
|
08
|
08
90116-06122-00 Bolt, Stud |
90116-06122-00 |
US $1.98 |
||
| replacement | |||||
|
08
|
08
90116-06M30-00 Bolt, Stud |
90116-06M30-00 |
from US $1.98 |
||
|
09
|
09
688-14198-00-00 Gasket |
688-14198-00-00 |
US $4.11 |
||
| replacement | |||||
|
09
|
09
688-14198-A2-00 Gasket |
688-14198-A2-00 |
from US $4.11 |
||
|
10
|
10
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
12
|
12
688-13621-00-00 Gasket, Valve Seat |
688-13621-00-00 |
US $11.76 |
||
| replacement | |||||
|
12
|
12
688-13621-A1-00 Gasket, Valve Seat |
688-13621-A1-00 |
from US $5.74 |
||
|
13
|
13
688-13624-00-00 Plate,reed Valve |
688-13624-00-00 |
from US $14.48 |
||
|
14
|
14
688-13610-00-00 Reed Valve Assy |
688-13610-00-00 |
from US $81.48 |
||
|
15
|
15
688-W0004-00-00 Reed Set |
688-W0004-00-00 |
from US $55.26 |
||
|
16
|
16
978-03050-20-00 Screw, Pan Head |
978-03050-20-00 |
US $1.56 |
||
| replacements | |||||
|
16
|
16
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
16
|
16
97885-05020-00 Screw, Pan Head |
97885-05020-00 |
from US $2.13 |
||
|
17
|
17
92903-05100-00 Washer, Spring |
92903-05100-00 |
US $1.21 |
||
| replacement | |||||
|
17
|
17
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
18
|
18
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
18
|
18
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
19
|
19
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
20
|
20
688-41217-00-00 Rod, Accel. Lever |
688-41217-00-00 |
US $14.59 |
||
| replacement | |||||
|
20
|
20
688-41217-01-00 Rod, Accel. Lever |
688-41217-01-00 |
from US $14.59 |
||
|
21
|
21
688-41257-00-00 Rod, Choke 2 |
688-41257-00-00 |
US $3.68 |
||
| replacement | |||||
|
21
|
21
688-41257-01-00 Rod, Choke 2 |
688-41257-01-00 |
from US $2.36 |
||
|
22
|
22
661-41262-02-00 Joint, Choke Lever |
661-41262-02-00 |
from US $7.93 |
||
|
23
|
23
688-86110-00-00 SolenoidSolenoid coil assy |
688-86110-00-00 |
US $137.33 |
||
| replacement | |||||
|
23
|
23
688-86110-01-00 Solenoid Coil Assembly |
688-86110-01-00 |
from US $137.33 |
||
|
24
|
24
97803-06014-00 Screw, Pan Head |
97803-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
24
|
24
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
25
|
25
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
26
|
26
92903-06200-00 Washer, Plain |
92903-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
26
|
26
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
27
|
27
93210-03261-00 O-Ring |
93210-03261-00 |
from US $2.02 |
||
|
28
|
28
692-41256-00-00
Rod, Choke 1
|
692-41256-00-00 |
— | ||
| replacement | |||||
|
28
|
28
692-41256-01-00 Rod, Choke 1 |
692-41256-01-00 |
from US $23.58 |
||
|
29
|
29
689-41273-00-00 Grommet |
689-41273-00-00 |
from US $3.38 |
||
