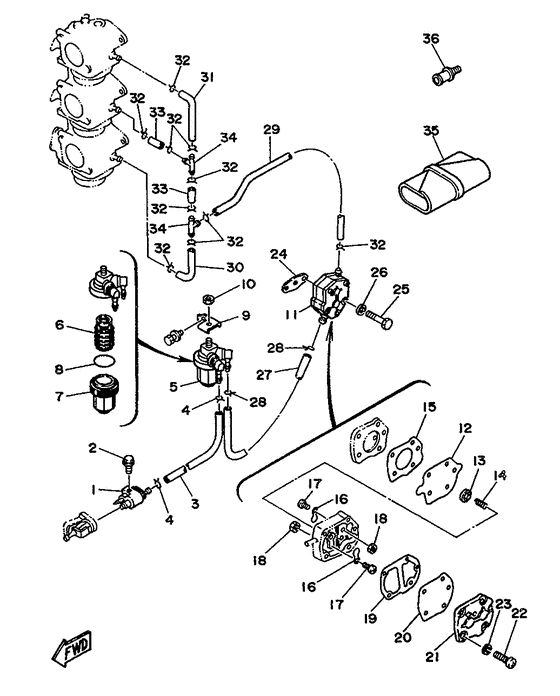

Fuel Diagram Yamaha 90 ETOL/XL
- Year
- 1994
- Model
- 90A
- Model code
- 6H1
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G1-24304-02-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-02-00 |
US $29.47 |
||
| replacements | |||||
|
01
|
01
6G1-24304-10-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-10-00 |
US $32.74 |
||
|
01
|
01
6G1-24304-11-00 FUEL PIPE JOINT COMP 1 |
6G1-24304-11-00 |
from US $26.03 |
||
|
02
|
02
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
02
|
02
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
02
|
02
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
03
|
03
90445-09105-00 Hose (L300) |
90445-09105-00 |
from US $6.52 |
||
| replacement | |||||
|
03
|
03
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
04
|
04
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
05
|
05
61N-24560-00-00 Filter Assy |
61N-24560-00-00 |
US $41.86 |
||
| replacement | |||||
|
05
|
05
61N-24560-10-00 Filter Assy |
61N-24560-10-00 |
from US $25.92 |
||
|
06
|
06
61N-24563-00-00 Element, Filter |
61N-24563-00-00 |
from US $7.49 |
||
| replacement | |||||
|
06
|
06
61N-24563-10-00 Element, Filter |
61N-24563-10-00 |
from US $7.49 |
||
|
07
|
07
61N-24521-00-00 Cup, Filter |
61N-24521-00-00 |
from US $13.46 |
||
|
08
|
08
93210-32738-00 O-Ring |
93210-32738-00 |
from US $1.39 |
||
|
09
|
09
6H1-24566-00-00 Bracket, Filter |
6H1-24566-00-00 |
US $11.90 |
||
|
10
|
10
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
10
|
10
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
10
|
10
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
11
|
11
6A0-24410-05-00 Fuel Pump Assembly |
6A0-24410-05-00 |
US $131.67 |
||
| replacements | |||||
|
11
|
11
692-24410-00-00 Fuel Pump Assy |
692-24410-00-00 |
US $131.67 |
||
|
11
|
11
692-24410-01-00 FUEL PUMP ASSY |
692-24410-01-00 |
from US $67.03 |
||
|
12
|
12
648-24411-00-00 Diaphragm |
648-24411-00-00 |
from US $22.56 |
||
|
13
|
13
648-24424-00-00 Seat, Spring |
648-24424-00-00 |
from US $3.68 |
||
|
14
|
14
648-24423-00-00 Spring, Diaphragm |
648-24423-00-00 |
from US $3.68 |
||
|
15
|
15
648-24434-01-00 Gasket, Body |
648-24434-01-00 |
from US $4.72 |
||
|
16
|
16
6A0-24421-01-00 Valve,check |
6A0-24421-01-00 |
US $20.69 |
||
| replacement | |||||
|
16
|
16
62Y-24421-01-00 Valve, Check |
62Y-24421-01-00 |
from US $8.08 |
||
|
17
|
17
6A0-14325-00-00 Screw, Pan Head |
6A0-14325-00-00 |
from US $4.11 |
||
|
18
|
18
95380-03600-00 Nut |
95380-03600-00 |
from US $1.56 |
||
|
19
|
19
648-24435-02-00 Gasket, Body 2 |
648-24435-02-00 |
from US $13.32 |
||
|
20
|
20
663-24411-00-00 Diaphragm |
663-24411-00-00 |
from US $9.44 |
||
|
21
|
21
648-24413-01-00 Cover, Pump |
648-24413-01-00 |
from US $17.65 |
||
|
22
|
22
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
23
|
23
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
24
|
24
650-24431-A0-00 Gasket, Fuel Pump 1 |
650-24431-A0-00 |
from US $1.70 |
||
|
25
|
25
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.39 |
||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
27
|
27
6H1-24314-00-00 Pipe 4 |
6H1-24314-00-00 |
from US $8.22 |
||
|
28
|
28
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
29
|
29
904-45091-00-00
Hose (L420)
|
904-45091-00-00 |
— | ||
| replacements | |||||
|
29
|
29
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
29
|
29
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
30
|
30
688-24313-00-00
Pipe 3
|
688-24313-00-00 |
— | ||
| replacement | |||||
|
30
|
30
6A4-24312-00-00 Pipe, Fuel 2 |
6A4-24312-00-00 |
from US $10.96 |
||
|
31
|
31
688-24314-00-00
Pipe 4
|
688-24314-00-00 |
— | ||
| replacement | |||||
|
31
|
31
6A4-24312-00-00 Pipe, Fuel 2 |
6A4-24312-00-00 |
from US $10.96 |
||
|
32
|
32
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
33
|
33
904-45092-20-00
Hose (L420)
|
904-45092-20-00 |
— | ||
| replacement | |||||
|
33
|
33
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
34
|
34
688-24378-00-00 Pipe, Joint 3 |
688-24378-00-00 |
from US $7.36 |
||
|
35
|
35
656-W2810-02-00 Tool Kit |
656-W2810-02-00 |
US $40.62 |
||
| replacements | |||||
|
35
|
35
656-W2810-03-00 Tool Kit |
656-W2810-03-00 |
from US $40.62 |
||
|
35
|
35
656-W2810-03-00 Tool Kit |
656-W2810-03-00 |
from US $40.62 |
||
|
36
|
36
6E0-28193-00-94 Plug, Water CheckD:12.5 |
6E0-28193-00-94 |
US $9.35 |
||
| replacement | |||||
|
36
|
36
6E0-28193-00-00 Plug, Water CheckD:12.5 |
6E0-28193-00-00 |
from US $9.35 |
||
