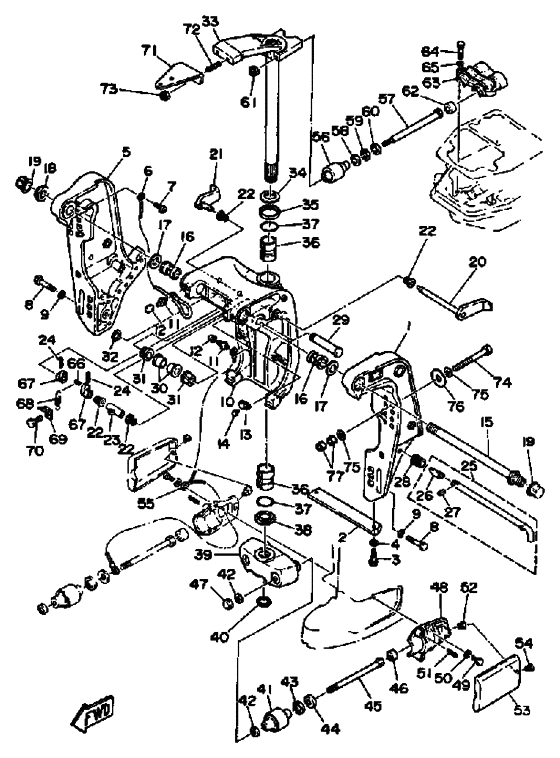

Bracket Diagram Yamaha 90 ETL/XL
- Year
- 1989
- Model
- 90
- Year
- 1989
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H1-43111-00-EK
Bracket, Clamp 1
|
6H1-43111-00-EK |
— | ||
| replacement | |||||
|
1
|
1
6H1-43111-01-EK
Clamp Bracket
|
6H1-43111-01-EK |
— | ||
|
2
|
2
6H1-45251-01-00 Anode |
6H1-45251-01-00 |
US $35.85 |
||
| replacement | |||||
|
2
|
2
999-99039-35-00 Anode Set |
999-99039-35-00 |
from US $35.69 |
||
|
3
|
3
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
3
|
3
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
5
|
5
6H1-43112-00-EK
Bracket, Clamp 2
|
6H1-43112-00-EK |
— | ||
|
6
|
6
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $6.06 |
||
|
7
|
7
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
7
|
7
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
8
|
8
97395-10045-00 Bolt |
97395-10045-00 |
US $7.51 |
||
| replacements | |||||
|
8
|
8
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
8
|
8
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.74 |
||
|
9
|
9
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
10
|
10
6H1-43311-01-EK
Bracket, Swivel 1
|
6H1-43311-01-EK |
— | ||
|
11
|
11
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
12
|
12
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.89 |
||
|
13
|
13
90464-11M18-00 Clamp |
90464-11M18-00 |
from US $1.84 |
||
|
14
|
14
90338-05M03-00 Plug |
90338-05M03-00 |
from US $1.84 |
||
|
15
|
15
688-43131-03-00 Bolt, Clamp Bracket |
688-43131-03-00 |
from US $106.38 |
||
|
16
|
16
90386-22M15-00 Bush |
90386-22M15-00 |
from US $6.06 |
||
|
17
|
17
90201-22M67-00 Washer, Plate |
90201-22M67-00 |
from US $1.70 |
||
|
18
|
18
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
18
|
18
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $29.77 |
||
|
19
|
19
6G5-43145-00-00 Cap, Clamp Bracket |
6G5-43145-00-00 |
US $7.07 |
||
| replacement | |||||
|
19
|
19
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $7.07 |
||
|
20
|
20
6H1-43181-01-00 Lever, Tilt Stop 1 |
6H1-43181-01-00 |
from US $57.47 |
||
|
21
|
21
6H1-43185-01-00 Lever, Tilt Stop 2 |
6H1-43185-01-00 |
from US $48.77 |
||
|
22
|
22
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2.36 |
||
|
23
|
23
90387-10M02-00 Collar |
90387-10M02-00 |
from US $4.11 |
||
|
24
|
24
91690-30020-00 Pin, Spring |
91690-30020-00 |
from US $1.70 |
||
|
25
|
25
688-43160-01-00 Tilt Rod Assy |
688-43160-01-00 |
from US $26.94 |
||
|
26
|
26
688-43165-00-00 Plate, Tilt Lock |
688-43165-00-00 |
from US $7.23 |
||
|
27
|
27
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
28
|
28
90502-16M02-00 Spring, Conical |
90502-16M02-00 |
from US $3.68 |
||
|
29
|
29
6E5-43126-02-00 Pin, Upper Shock Mount |
6E5-43126-02-00 |
from US $23.94 |
||
|
30
|
30
90386-18M63-00 Bush |
90386-18M63-00 |
from US $4.03 |
||
|
31
|
31
90386-18M35-00 Bush |
90386-18M35-00 |
from US $11.12 |
||
|
32
|
32
93410-18M02-00 Circlip |
93410-18M02-00 |
US $3.12 |
||
| replacement | |||||
|
32
|
32
93410-18M05-00 Circlip (6F2) |
93410-18M05-00 |
from US $3.26 |
||
|
33
|
33
688-42510-02-EK
Steering Bracketassembly
|
688-42510-02-EK |
— | ||
| replacements | |||||
|
33
|
33
688-42510-03-8D Steering Bracket Assy |
688-42510-03-8D |
from US $351.44 |
||
|
33
|
33
688-42510-03-EK
element
|
688-42510-03-EK |
— | ||
|
34
|
34
90201-30M00-00 Washer, Plate |
90201-30M00-00 |
from US $5.06 |
||
|
35
|
35
90386-30M78-00 Bush |
90386-30M78-00 |
from US $3.04 |
||
|
36
|
36
90386-30M77-00 Bush |
90386-30M77-00 |
from US $10.44 |
||
|
37
|
37
93210-29M94-00 O-Ring |
93210-29M94-00 |
from US $2.36 |
||
|
38
|
38
90386-30M60-00 Bush |
90386-30M60-00 |
from US $3.04 |
||
|
39
|
39
663-44551-01-EK
Housing, Lwr, Mountmount Rubber
|
663-44551-01-EK |
— | ||
| replacement | |||||
|
39
|
39
663-44551-02-EK
Housing, Lower Mount
|
663-44551-02-EK |
— | ||
|
40
|
40
93410-28M06-00 Circlip |
93410-28M06-00 |
from US $7.23 |
||
|
41
|
41
687-44555-00-94 Mount Damper, Lower Side |
687-44555-00-94 |
US $73.22 |
||
| replacement | |||||
|
41
|
41
687-44555-00-00 Mount Damper, Lower Side |
687-44555-00-00 |
from US $73.22 |
||
|
42
|
42
90201-12M16-00 Washer, Plate |
90201-12M16-00 |
from US $2.70 |
||
|
43
|
43
90202-25M04-00 Washer, Plate |
90202-25M04-00 |
from US $3.04 |
||
|
44
|
44
90201-13M19-00 Washer, Plate |
90201-13M19-00 |
from US $6.74 |
||
|
45
|
45
901-09122-61-00 Bolt |
901-09122-61-00 |
from US $20.54 |
||
|
46
|
46
663-44575-00-00 Damper, Lower Mount Rubber |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
46
|
46
663-44575-01-00 Damper, lower mount rubber |
663-44575-01-00 |
from US $10.48 |
||
|
47
|
47
95380-12800-00 Nut, Crown |
95380-12800-00 |
from US $4.04 |
||
|
48
|
48
687-44552-01-94 Housing, Lower Mount Rubber 2 |
687-44552-01-94 |
US $70.88 |
||
| replacement | |||||
|
48
|
48
687-44552-02-00 Housing, Lower Mount Rubber |
687-44552-02-00 |
from US $40.39 |
||
|
49
|
49
97395-08025-00 Bolt |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
49
|
49
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.68 |
||
|
49
|
49
97095-08025-00 Bolt |
97095-08025-00 |
from US $3.38 |
||
|
50
|
50
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
51
|
51
90501-14236-00 Spring, Compression |
90501-14236-00 |
US $4.53 |
||
| replacement | |||||
|
51
|
51
90501-14M08-00 Spring, Compression(64J) |
90501-14M08-00 |
from US $4.53 |
||
|
52
|
52
90179-06066-00 Nut |
90179-06066-00 |
from US $4.96 |
||
|
53
|
53
663-44553-00-EK
Cover, Lwr.mount
|
663-44553-00-EK |
— | ||
| replacement | |||||
|
53
|
53
663-44553-01-EK
Cover, Lower Unit
|
663-44553-01-EK |
— | ||
|
54
|
54
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
55
|
55
688-82127-02-00 Wire, Lead 2 |
688-82127-02-00 |
from US $25.64 |
||
|
56
|
56
688-44514-00-94 Mount Damper, Upper Side |
688-44514-00-94 |
US $60.93 |
||
| replacement | |||||
|
56
|
56
688-44514-00-00 Mount Damper, Upper Side |
688-44514-00-00 |
from US $60.93 |
||
|
57
|
57
90101-10M49-00 Bolt |
90101-10M49-00 |
from US $19.26 |
||
| replacement | |||||
|
57
|
57
90101-10041-00 Bolt |
90101-10041-00 |
from US $19.27 |
||
|
58
|
58
90201-20M21-00 Washer, Plate |
90201-20M21-00 |
from US $4.04 |
||
|
59
|
59
90202-20M06-00 Washer, Plate |
90202-20M06-00 |
from US $3.04 |
||
|
60
|
60
90201-11M22-00 Washer, Plate |
90201-11M22-00 |
from US $4.38 |
||
|
61
|
61
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
61
|
61
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
62
|
62
663-44575-00-00 Damper, Lower Mount Rubber |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
62
|
62
663-44575-01-00 Damper, lower mount rubber |
663-44575-01-00 |
from US $10.48 |
||
|
63
|
63
688-44511-00-94 Cover, Upper Mount |
688-44511-00-94 |
US $40.62 |
||
| replacement | |||||
|
63
|
63
688-44511-00-00 Cover, Upper Mount |
688-44511-00-00 |
from US $40.62 |
||
|
64
|
64
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
64
|
64
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
64
|
64
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.53 |
||
|
65
|
65
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
66
|
66
90249-06M19-00 Pin |
90249-06M19-00 |
from US $3.26 |
||
|
67
|
67
6G5-43148-00-00 Collar, Distance |
6G5-43148-00-00 |
from US $2.91 |
||
|
68
|
68
90506-14M24-00 Spring, Tension |
90506-14M24-00 |
from US $4.03 |
||
|
69
|
69
6G5-43144-00-00 Hook, Spring |
6G5-43144-00-00 |
from US $3.26 |
||
|
70
|
70
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
70
|
70
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
71
|
71
688-48511-11-EK Hook Steering |
688-48511-11-EK |
US $75.85 |
||
| replacement | |||||
|
71
|
71
688-48511-12-00 Hook, Steering |
688-48511-12-00 |
from US $75.85 |
||
|
72
|
72
90116-10175-00 Bolt, Stud |
90116-10175-00 |
from US $5.38 |
||
| replacements | |||||
|
72
|
72
901-16100-62-00 Bolt, Stud |
901-16100-62-00 |
from US $5.97 |
||
|
72
|
72
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.81 |
||
|
73
|
73
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
73
|
73
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
74
|
74
90101-12M65-00 Bolt |
90101-12M65-00 |
US $18.99 |
||
|
75
|
75
92995-12200-00 Washer |
92995-12200-00 |
from US $2.09 |
||
| replacement | |||||
|
75
|
75
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
76
|
76
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
77
|
77
95380-12600-00 Nut |
95380-12600-00 |
from US $5.40 |
||
