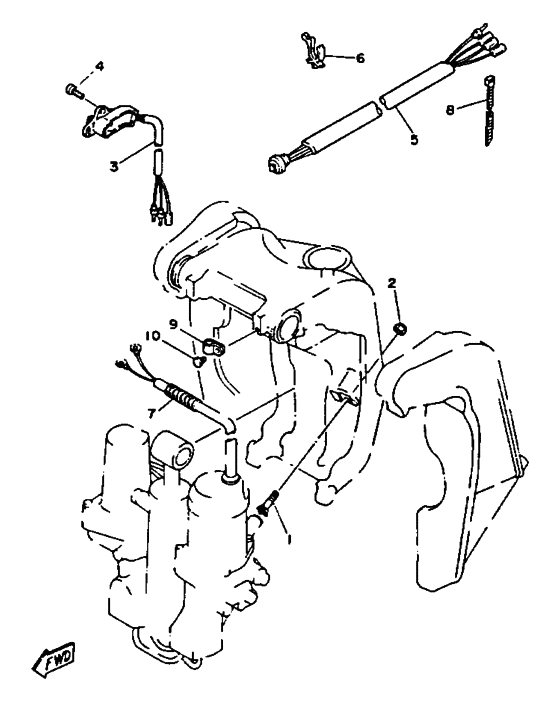

Bracket Diagram Yamaha 90 TL/XLR
- Year
- 1993
- Model
- 90
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- U.S.A.
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H1-43376-00-00 Bolt, Thrust Receiver |
6H1-43376-00-00 |
from US $22.39 |
||
|
2
|
2
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
3
|
3
6H1-83672-10-00
Trim Sender
|
6H1-83672-10-00 |
— | ||
|
4
|
4
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
5
|
5
6E5-82553-10-00
Extension, Wire Harness
|
6E5-82553-10-00 |
— | ||
|
6
|
6
90464-15M08-00 Clamp |
90464-15M08-00 |
from US $1.94 |
||
|
7
|
7
90440-14M00-00 Pipe |
90440-14M00-00 |
from US $2.55 |
||
|
8
|
8
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
8
|
8
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
8
|
8
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
9
|
9
90464-11M18-00 Clamp |
90464-11M18-00 |
from US $1.84 |
||
|
10
|
10
90338-05M03-00 Plug |
90338-05M03-00 |
from US $1.84 |
||
