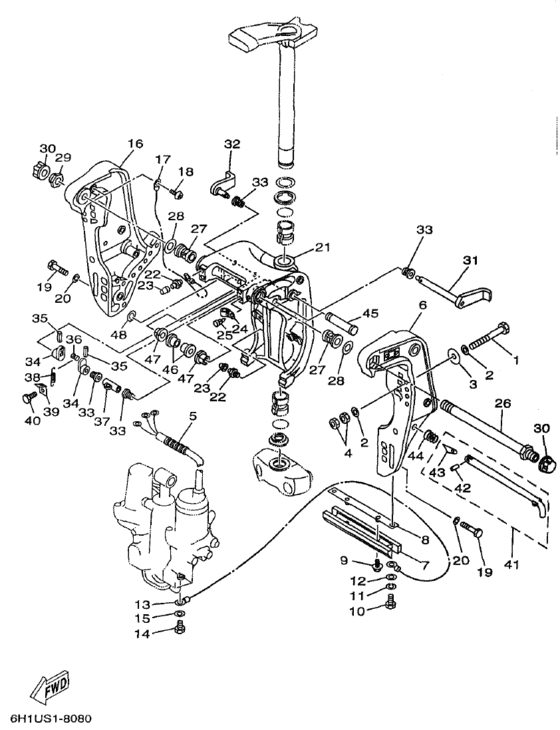

Bracket Diagram Yamaha 90 TL/XLR
- Year
- 1999
- Model
- C90
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90101-12M65-00 Bolt |
90101-12M65-00 |
US $18.99 |
||
|
2
|
2
929-55122-00-00
Washer
|
929-55122-00-00 |
— | ||
|
3
|
3
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
4
|
4
95380-12600-00 Nut |
95380-12600-00 |
from US $5.40 |
||
|
5
|
5
90440-14M00-00 Pipe |
90440-14M00-00 |
from US $2.55 |
||
|
6
|
6
6H1-43111-01-4D Bracket, Clamp 1 |
6H1-43111-01-4D |
US $167.17 |
||
| replacement | |||||
|
6
|
6
6H1-43111-01-8D Bracket, Clamp 1 |
6H1-43111-01-8D |
from US $167.17 |
||
|
7
|
7
6H1-45251-02-00 Anode |
6H1-45251-02-00 |
US $22.24 |
||
| replacement | |||||
|
7
|
7
6H1-45251-03-00 Anode |
6H1-45251-03-00 |
from US $21.77 |
||
|
8
|
8
6H1-44526-00-00 Plate |
6H1-44526-00-00 |
from US $11.93 |
||
| replacement | |||||
|
8
|
8
6EK-44536-00-00 Plate 2 |
6EK-44536-00-00 |
from US $12.18 |
||
|
9
|
9
90119-06M29-00 Bolt, With Washer(6 |
90119-06M29-00 |
from US $2.77 |
||
| replacement | |||||
|
9
|
9
90119-06274-00 |
90119-06274-00 |
from US $2.74 |
||
|
10
|
10
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
10
|
10
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
13
|
13
6H1-82148-00-00 Wire, Lead 4 |
6H1-82148-00-00 |
US $10.63 |
||
| replacement | |||||
|
13
|
13
6T4-82117-00-00 Wire, Lead |
6T4-82117-00-00 |
from US $10.44 |
||
|
14
|
14
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
14
|
14
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
15
|
15
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
16
|
16
6H1-43112-00-4D Bracket, Clamp 2 |
6H1-43112-00-4D |
US $167.17 |
||
| replacement | |||||
|
16
|
16
6H1-43112-00-8D Bracket, Clamp 2 |
6H1-43112-00-8D |
from US $167.17 |
||
|
17
|
17
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $6.06 |
||
|
18
|
18
97880-06012-00 Screw, Pan Head |
97880-06012-00 |
US $1.56 |
||
| replacement | |||||
|
18
|
18
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
19
|
19
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.74 |
||
| replacement | |||||
|
19
|
19
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
20
|
20
92995-10100-00 Washer |
92995-10100-00 |
from US $1.66 |
||
| replacement | |||||
|
20
|
20
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
21
|
21
6H1-43311-01-4D Bracket, Swivel 1 |
6H1-43311-01-4D |
US $287.37 |
||
| replacement | |||||
|
21
|
21
6H1-43311-02-8D Bracket, Swivel 1 |
6H1-43311-02-8D |
from US $287.37 |
||
|
22
|
22
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
23
|
23
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.89 |
||
|
24
|
24
90464-11M18-00 Clamp |
90464-11M18-00 |
from US $1.84 |
||
|
25
|
25
90338-05M03-00 Plug |
90338-05M03-00 |
from US $1.84 |
||
|
26
|
26
688-43131-03-00 Bolt, Clamp Bracket |
688-43131-03-00 |
from US $106.38 |
||
|
27
|
27
90386-22M15-00 Bush |
90386-22M15-00 |
from US $6.06 |
||
|
28
|
28
90201-22M67-00 Washer, Plate |
90201-22M67-00 |
from US $1.70 |
||
|
29
|
29
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
29
|
29
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $29.77 |
||
|
30
|
30
6G5-43145-00-00 Cap, Clamp Bracket |
6G5-43145-00-00 |
US $7.07 |
||
| replacement | |||||
|
30
|
30
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $7.07 |
||
|
31
|
31
6H1-43181-01-00 Lever, Tilt Stop 1 |
6H1-43181-01-00 |
from US $57.47 |
||
|
32
|
32
6H1-43185-01-00 Lever, Tilt Stop 2 |
6H1-43185-01-00 |
from US $48.77 |
||
|
33
|
33
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2.36 |
||
|
34
|
34
6G5-43148-00-00 Collar, Distance |
6G5-43148-00-00 |
from US $2.91 |
||
|
35
|
35
91690-30020-00 Pin, Spring |
91690-30020-00 |
from US $1.70 |
||
|
36
|
36
90249-06M19-00 Pin |
90249-06M19-00 |
from US $3.26 |
||
|
37
|
37
90387-10M02-00 Collar |
90387-10M02-00 |
from US $4.11 |
||
|
38
|
38
90506-14M24-00 Spring, Tension |
90506-14M24-00 |
from US $4.03 |
||
|
39
|
39
6G5-43144-00-00 Hook, Spring |
6G5-43144-00-00 |
from US $3.26 |
||
|
40
|
40
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
40
|
40
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
41
|
41
688-43160-01-00 Tilt Rod Assy |
688-43160-01-00 |
from US $26.94 |
||
|
42
|
42
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
43
|
43
688-43165-00-00 Plate, Tilt Lock |
688-43165-00-00 |
from US $7.23 |
||
|
44
|
44
90502-16M02-00 Spring, Conical |
90502-16M02-00 |
from US $3.68 |
||
|
45
|
45
6E5-43126-02-00 Pin, Upper Shock Mount |
6E5-43126-02-00 |
from US $23.94 |
||
|
46
|
46
90386-18M63-00 Bush |
90386-18M63-00 |
from US $4.03 |
||
|
47
|
47
90386-18M35-00 Bush |
90386-18M35-00 |
from US $11.12 |
||
|
48
|
48
93410-18M02-00 Circlip |
93410-18M02-00 |
US $3.12 |
||
| replacement | |||||
|
48
|
48
93410-18M05-00 Circlip (6F2) |
93410-18M05-00 |
from US $3.26 |
||
