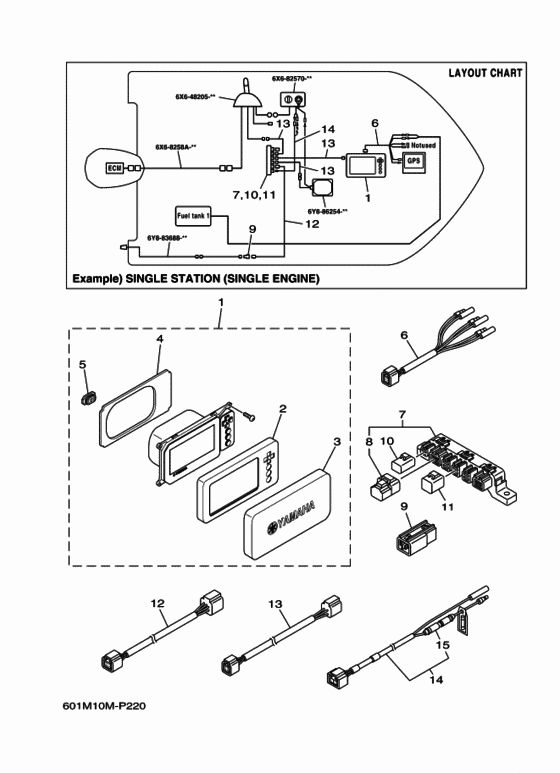

6yc multifunction meter Diagram Yamaha Accessories
- Year
- 2016
- Model
- RIGGING METER
- Model code
- 601M
- Year
- 2016
- Sales region
- Finland (010)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6YC-83710-00-00 Multi Display Assy |
6YC-83710-00-00 |
US $2,125.20 |
||
| replacements | |||||
|
1
|
1
6YC-83710-01-00 MULTI DISPLAY ASSY |
6YC-83710-01-00 |
US $2,125.20 |
||
|
1
|
1
6YC-83710-02-00 6YC MULTI DISPLAY ASSY |
6YC-83710-02-00 |
US $2,125.20 |
||
|
1
|
1
6YC-83710-03-00 6YC Multi Display Assy |
6YC-83710-03-00 |
from US $1,421 |
||
|
2
|
2
6YC-83512-00-00 Ring, Speed Meter |
6YC-83512-00-00 |
from US $158.88 |
||
|
3
|
3
6YC-87278-00-00 Cover, Meter |
6YC-87278-00-00 |
from US $125.55 |
||
|
4
|
4
6YC-12223-00-00 Seal |
6YC-12223-00-00 |
US $85.86 |
||
|
5
|
5
6YC-82532-00-00 Cap |
6YC-82532-00-00 |
US $48.10 |
||
|
6
|
6
6Y8-8356N-01-00 Lead, Fuel Tank & Gps Sender |
6Y8-8356N-01-00 |
from US $53.66 |
||
|
7
|
7
6Y8-81920-01-00 Multi Hub Assy |
6Y8-81920-01-00 |
from US $76.45 |
||
|
8
|
8
6Y8-85371-01-00 End Of Line Resister |
6Y8-85371-01-00 |
from US $18.23 |
||
|
9
|
9
6Y8-81920-11-00 In-Line Hub Assy |
6Y8-81920-11-00 |
from US $22.22 |
||
|
10
|
10
6Y8-82582-01-00 Cap 1 (2Pin) |
6Y8-82582-01-00 |
from US $7.08 |
||
|
11
|
11
6Y8-82582-11-00 Cap 1 (4Pin) |
6Y8-82582-11-00 |
from US $8.22 |
||
|
12
|
12
6Y8-82553-01-00 1Ft Main BusUR |
6Y8-82553-01-00 |
from US $61.94 |
||
|
12
|
12
6Y8-82553-11-00 15Ft Main BusUR |
6Y8-82553-11-00 |
from US $172.13 |
||
|
12
|
12
6Y8-82553-21-00 20Ft Main BusUR |
6Y8-82553-21-00 |
from US $184.28 |
||
|
12
|
12
6Y8-82553-31-00 25Ft Main BusUR |
6Y8-82553-31-00 |
from US $198.45 |
||
|
12
|
12
6Y8-82553-41-00 30Ft Main BusUR |
6Y8-82553-41-00 |
from US $222.75 |
||
|
12
|
12
6Y8-82553-50-00 10Ft Main BusUR |
6Y8-82553-50-00 |
from US $157.95 |
||
|
13
|
13
6Y8-82521-01-00 1Ft Pigtail BusUR |
6Y8-82521-01-00 |
from US $44.35 |
||
|
13
|
13
6Y8-82521-11-00 2Ft Pigtail BusUR |
6Y8-82521-11-00 |
from US $72.40 |
||
|
13
|
13
6Y8-82521-21-00 3Ft Pigtail BusUR |
6Y8-82521-21-00 |
from US $81.50 |
||
|
13
|
13
6Y8-82521-31-00 6Ft Pigtail BusUR |
6Y8-82521-31-00 |
from US $75.20 |
||
|
13
|
13
6Y8-82521-41-00 9Ft Pigtail BusUR |
6Y8-82521-41-00 |
from US $106.81 |
||
|
13
|
13
6Y8-82521-51-00 12Ft Pigtail BusUR |
6Y8-82521-51-00 |
from US $125.55 |
||
|
14
|
14
6Y8-83553-01-00 8Ft Power Wire |
6Y8-83553-01-00 |
US $105 |
||
| replacement | |||||
|
14
|
14
6Y8-83553-02-00 8FT POWER WIRE |
6Y8-83553-02-00 |
from US $68.68 |
||
|
15
|
15
6G1-82151-00-00 Fuse (10A) |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
15
|
15
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $2.02 |
||
