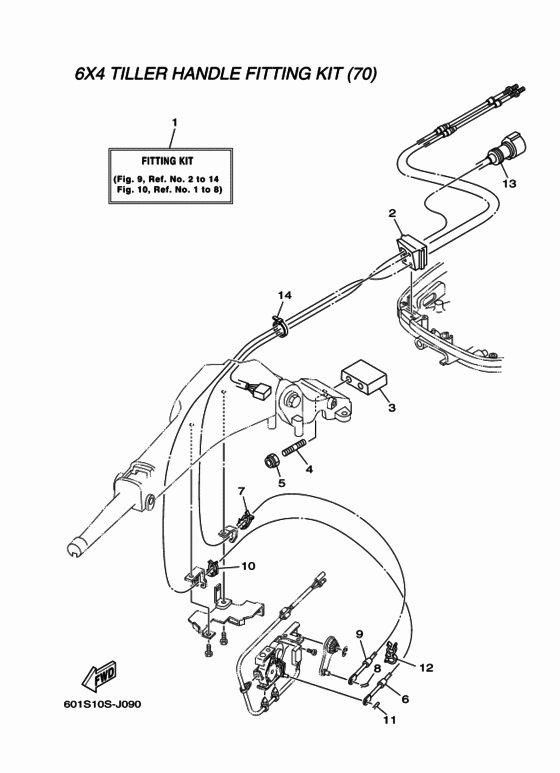

Fitting kit 5 Diagram Yamaha Accessories
- Year
- 2010
- Model
- RIGGING STEERING
- Model code
- 601S
- Year
- 2010
- Sales region
- Finland (010)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6X4-42102-51-00
Fitting Kit
LM |
6X4-42102-51-00 |
— | ||
| replacements | |||||
|
1
|
1
6X4-42102-52-00
Fitting Kit
LM |
6X4-42102-52-00 |
— | ||
|
1
|
1
6X4-42102-53-00 Fitting KitLM |
6X4-42102-53-00 |
US $228.83 |
||
|
2
|
2
6H3-42725-30-00 Grommet |
6H3-42725-30-00 |
US $13.32 |
||
|
3
|
3
6X4-42121-00-8D Bracket |
6X4-42121-00-8D |
from US $81.79 |
||
|
4
|
4
90116-10031-00 Bolt, Stud |
90116-10031-00 |
from US $25.64 |
||
|
5
|
5
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
5
|
5
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
6
|
6
6H3-48321-11-00 Cable |
6H3-48321-11-00 |
from US $89.67 |
||
|
7
|
7
63D-48538-00-00 Clamp, Cable 1 |
63D-48538-00-00 |
from US $4.08 |
||
|
8
|
8
90468-10005-00 Clip |
90468-10005-00 |
from US $3.40 |
||
|
9
|
9
6H3-26301-01-00 Throttle Cable Assy |
6H3-26301-01-00 |
from US $90.49 |
||
|
10
|
10
63D-48538-00-00 Clamp, Cable 1 |
63D-48538-00-00 |
from US $4.08 |
||
|
11
|
11
90468-10005-00 Clip |
90468-10005-00 |
from US $3.40 |
||
|
12
|
12
90464-09M42-00 Clamp |
90464-09M42-00 |
from US $3.68 |
||
|
13
|
13
6X4-82586-30-00 Extension, Wire Harness |
6X4-82586-30-00 |
from US $316.39 |
||
|
14
|
14
90465-13M36-00 Clamp |
90465-13M36-00 |
US $1.98 |
||
| replacement | |||||
|
14
|
14
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
