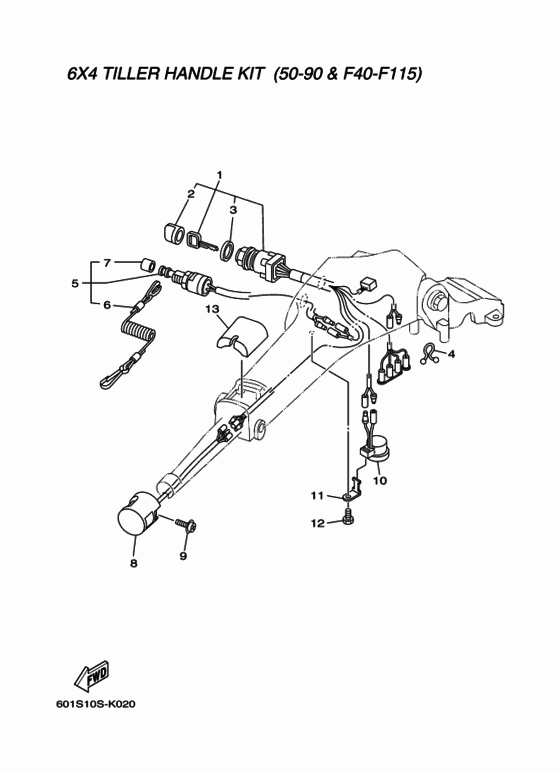

Base handle electrical Diagram Yamaha Accessories
- Year
- 2011
- Model
- RIGGING STEERING
- Model code
- 601S
- Year
- 2011
- Sales region
- Finland (010)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6X4-82510-00-00
Main Switch Assy
|
6X4-82510-00-00 |
— | ||
| replacements | |||||
|
1
|
1
6X4-82510-01-00 Main Switch Assy |
6X4-82510-01-00 |
US $140.92 |
||
|
1
|
1
6X4-82510-02-00 Main Switch Assy |
6X4-82510-02-00 |
from US $140.92 |
||
|
2
|
2
676-82577-00-00
Cap, Key
|
676-82577-00-00 |
— | ||
| replacement | |||||
|
2
|
2
676-82577-01-00 Cap, Key |
676-82577-01-00 |
from US $4.82 |
||
|
3
|
3
703-82532-00-00 Cap |
703-82532-00-00 |
from US $6.23 |
||
|
4
|
4
904-6408M-07-00
Clamp
|
904-6408M-07-00 |
— | ||
| replacement | |||||
|
4
|
4
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
5
|
5
69W-82575-00-00 Engine Stop Switch Assy |
69W-82575-00-00 |
from US $71.43 |
||
|
6
|
6
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
7
|
7
689-8257Y-00-00 Cap |
689-8257Y-00-00 |
from US $4.82 |
||
|
8
|
8
6X4-82563-00-00
Trim & Tilt Switch Assy
|
6X4-82563-00-00 |
— | ||
| replacement | |||||
|
8
|
8
6X4-82563-01-00 TRIM & TILT SWITCH |
6X4-82563-01-00 |
from US $103.76 |
||
|
9
|
9
979-80062-16-00
Screw, With Washer
|
979-80062-16-00 |
— | ||
| replacement | |||||
|
9
|
9
97985-06216-00 Screw, With Washer |
97985-06216-00 |
from US $1.42 |
||
|
10
|
10
6X4-83383-00-00 Buzzer |
6X4-83383-00-00 |
from US $52.50 |
||
|
11
|
11
6X4-83386-00-00 Stay, Buzzer |
6X4-83386-00-00 |
from US $2.69 |
||
|
12
|
12
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
| replacement | |||||
|
12
|
12
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
13
|
13
6X4-81942-00-00 Cover |
6X4-81942-00-00 |
US $13.32 |
||
| replacement | |||||
|
13
|
13
6X4-81942-01-00 Cover |
6X4-81942-01-00 |
from US $13.32 |
||
