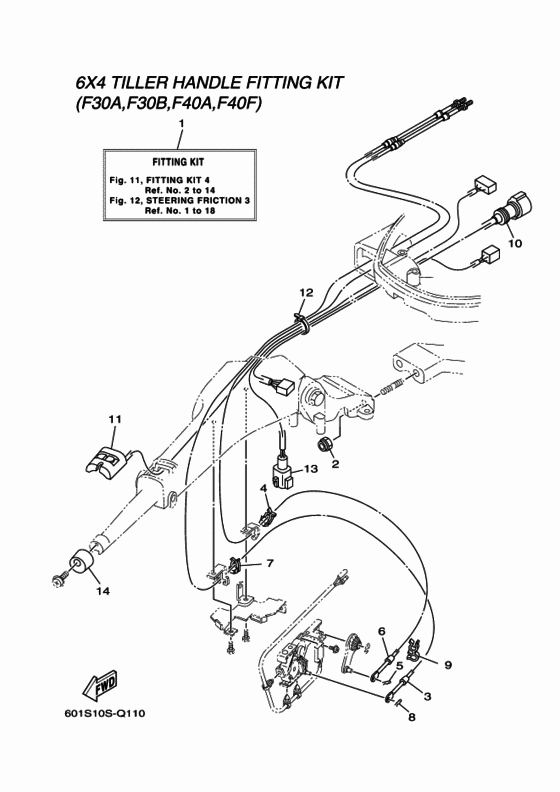

Fitting kit 4 Diagram Yamaha Accessories
- Year
- 2016
- Model
- RIGGING STEERING
- Model code
- 601S
- Year
- 2016
- Sales region
- Finland (010)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6X4-42102-71-00 Fitting KitLM FOR US |
6X4-42102-71-00 |
US $344.01 |
||
| replacement | |||||
|
1
|
1
6X4-42102-72-00 F40La Tiller Fitting Kit - EfiLM FOR US |
6X4-42102-72-00 |
US $376.65 |
||
|
1
|
1
6X4-42102-81-00
Fitting Kit
LM FOR EU & ANZ |
6X4-42102-81-00 |
— | ||
|
2
|
2
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
3
|
3
67C-48321-11-00 Cable |
67C-48321-11-00 |
from US $67.05 |
||
|
4
|
4
63D-48538-00-00 Clamp, Cable 1 |
63D-48538-00-00 |
from US $4.08 |
||
|
5
|
5
90468-10005-00 Clip |
90468-10005-00 |
from US $3.40 |
||
|
6
|
6
69W-26301-00-00 Throttle Cable Assy |
69W-26301-00-00 |
from US $70.88 |
||
|
7
|
7
63D-48538-00-00 Clamp, Cable 1 |
63D-48538-00-00 |
from US $4.08 |
||
|
8
|
8
90468-10005-00 Clip |
90468-10005-00 |
from US $3.40 |
||
|
9
|
9
90464-09M42-00 Clamp |
90464-09M42-00 |
from US $3.68 |
||
|
10
|
10
6X4-82586-10-00 Ext., Wire Harness (L:950Mm) |
6X4-82586-10-00 |
US $316.39 |
||
|
11
|
11
6X4-81860-00-00 Switch Assy |
6X4-81860-00-00 |
from US $149.21 |
||
|
12
|
12
90465-13M36-00 Clamp |
90465-13M36-00 |
US $1.98 |
||
| replacement | |||||
|
12
|
12
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
13
|
13
6X4-83653-20-00 Wire, Lead (L:700Mm)FOR EU & ANZ |
6X4-83653-20-00 |
from US $62.17 |
||
|
14
|
14
6X4-42728-00-00 CapFOR EU & ANZ |
6X4-42728-00-00 |
from US $11.66 |
||
