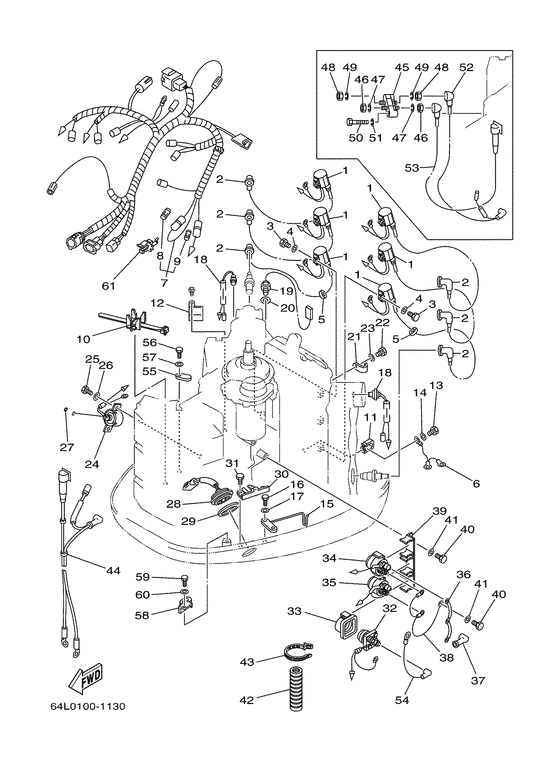

Electrical 2 Diagram Yamaha D150 ETOL
- Year
- 2002
- Model
- D150H
- Model code
- 65N
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 150
- Sales region
- Europe (General) (030)
- Colour
- Shiny Black (SBL; 00NA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6R3-85570-01-00 Ignition Coil Assy |
6R3-85570-01-00 |
from US $70.70 |
||
|
02
|
02
6E3-82370-21-00 Plug Cap Assy |
6E3-82370-21-00 |
from US $15.53 |
||
|
03
|
03
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
03
|
03
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
04
|
04
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
04
|
04
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
05
|
05
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
06
|
06
6E5-82531-10-00 Wire, Lead |
6E5-82531-10-00 |
from US $10.34 |
||
|
07
|
07
64D-82590-00-00 Wire Harness Assy |
64D-82590-00-00 |
US $467.85 |
||
|
08
|
08
663-82151-00-00 Fuse (12V-20A) |
663-82151-00-00 |
US $1.81 |
||
| replacements | |||||
|
08
|
08
682-82151-01-00 Fuse (20A) |
682-82151-01-00 |
US $1.81 |
||
|
08
|
08
682-82151-02-00 FUSE |
682-82151-02-00 |
from US $1.81 |
||
|
09
|
09
705-82151-00-00 Fuse (30A) |
705-82151-00-00 |
US $3.97 |
||
| replacement | |||||
|
09
|
09
705-82151-01-00 FUSE 30A |
705-82151-01-00 |
from US $3.97 |
||
|
10
|
10
688-82594-00-00 Clamp |
688-82594-00-00 |
from US $6.52 |
||
|
11
|
11
90465-05M87-00 Clamp |
90465-05M87-00 |
from US $5.67 |
||
|
12
|
12
90465-08M89-00 Clamp |
90465-08M89-00 |
from US $10.91 |
||
|
13
|
13
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
13
|
13
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
14
|
14
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
15
|
15
6K7-82588-00-00 Plate |
6K7-82588-00-00 |
from US $22.67 |
||
|
16
|
16
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
16
|
16
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
17
|
17
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
18
|
18
688-82560-10-00 Thermo Switch Assy |
688-82560-10-00 |
from US $50.50 |
||
|
19
|
19
61A-85790-00-00 Thermosensor Assy |
61A-85790-00-00 |
from US $107.28 |
||
| replacement | |||||
|
19
|
19
61A-85790-01-00 THERMOSENSOR ASSY |
61A-85790-01-00 |
from US $107.28 |
||
|
20
|
20
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
21
|
21
90465-06M86-00 Clamp |
90465-06M86-00 |
from US $4.82 |
||
|
22
|
22
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
22
|
22
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
23
|
23
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
24
|
24
64E-86110-00-00 Solenoid |
64E-86110-00-00 |
US $176.84 |
||
| replacement | |||||
|
24
|
24
64E-86110-01-00 Solenoid |
64E-86110-01-00 |
from US $176.84 |
||
|
25
|
25
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
| replacement | |||||
|
25
|
25
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
26
|
26
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
27
|
27
93210-03261-00 O-Ring |
93210-03261-00 |
from US $2.02 |
||
|
28
|
28
6R3-82563-00-00 Trim & Tilt Switch Assy |
6R3-82563-00-00 |
US $124.07 |
||
| replacement | |||||
|
28
|
28
6R3-82563-01-00 Trim & Tilt Switch Assy |
6R3-82563-01-00 |
from US $78.10 |
||
|
29
|
29
6E5-82587-00-00 Gasket |
6E5-82587-00-00 |
US $5.58 |
||
|
30
|
30
6R3-83614-00-00 Bracket |
6R3-83614-00-00 |
from US $9.07 |
||
|
31
|
31
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
31
|
31
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
32
|
32
61A-81941-00-00 Starter Relay Assy |
61A-81941-00-00 |
from US $107.06 |
||
|
33
|
33
689-81952-10-00 Holder, Relay |
689-81952-10-00 |
from US $17.71 |
||
|
34
|
34
6E5-81950-00-00 Relay Assy |
6E5-81950-00-00 |
US $171.32 |
||
| replacement | |||||
|
34
|
34
6E5-81950-01-00 Relay Assy |
6E5-81950-01-00 |
from US $171.32 |
||
|
35
|
35
6E5-8195A-00-00 Relay Assy |
6E5-8195A-00-00 |
US $219.67 |
||
| replacement | |||||
|
35
|
35
6E5-8195A-01-00 Relay Assy |
6E5-8195A-01-00 |
from US $219.67 |
||
|
36
|
36
6G5-87149-10-00 Connector |
6G5-87149-10-00 |
from US $8.42 |
||
|
37
|
37
6G5-82119-00-00 Cover, Lead Wire |
6G5-82119-00-00 |
US $5.53 |
||
| replacement | |||||
|
37
|
37
6G5-82119-10-00 Cover, Lead Wire |
6G5-82119-10-00 |
from US $5.53 |
||
|
38
|
38
6E5-82116-00-00 Wire, Minus Lead |
6E5-82116-00-00 |
US $16.72 |
||
|
39
|
39
6G5-81948-11-00 Bracket |
6G5-81948-11-00 |
from US $21.22 |
||
|
40
|
40
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
| replacement | |||||
|
40
|
40
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
41
|
41
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
41
|
41
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
42
|
42
6E9-83557-70-00 Tube |
6E9-83557-70-00 |
US $4.11 |
||
| replacement | |||||
|
42
|
42
6N7-83557-00-00 Tube (I.dia:22Mm) |
6N7-83557-00-00 |
from US $4.11 |
||
|
43
|
43
90465-13M18-00 Clamp |
90465-13M18-00 |
from US $1.35 |
||
| replacements | |||||
|
43
|
43
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
43
|
43
90465-13M30-00 Clamp |
90465-13M30-00 |
from US $1.90 |
||
|
44
|
44
64D-82105-00-00 Battery Cable |
64D-82105-00-00 |
US $255.60 |
||
| replacements | |||||
|
44
|
44
64D-82105-01-00 element |
64D-82105-01-00 |
US $173.54 |
||
|
44
|
44
64D-82105-02-00 Battery Cable |
64D-82105-02-00 |
US $224.26 |
||
|
45
|
45
64D-81920-01-00 Terminal Assy |
64D-81920-01-00 |
from US $35.70 |
||
|
46
|
46
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
47
|
47
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
48
|
48
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
48
|
48
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
49
|
49
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
49
|
49
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
50
|
50
97095-06035-00 Bolt(6R8) |
97095-06035-00 |
from US $2.69 |
||
| replacement | |||||
|
50
|
50
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $2.02 |
||
|
51
|
51
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
52
|
52
64D-82117-00-00 Wire, Lead |
64D-82117-00-00 |
from US $38.68 |
||
|
53
|
53
64D-82116-00-00 Wire, Minus Lead |
64D-82116-00-00 |
from US $83.03 |
||
|
54
|
54
6E5-82117-01-00 Wire, Lead |
6E5-82117-01-00 |
US $26.35 |
||
| replacement | |||||
|
54
|
54
6E5-82117-02-00 Wire, Lead |
6E5-82117-02-00 |
US $19.33 |
||
|
55
|
55
6E5-82588-00-00 Plate |
6E5-82588-00-00 |
from US $5.97 |
||
|
56
|
56
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
56
|
56
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
57
|
57
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
57
|
57
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
58
|
58
90465-12M25-00 Clamp |
90465-12M25-00 |
from US $7.37 |
||
|
59
|
59
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
59
|
59
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
60
|
60
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
60
|
60
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
61
|
61
6G5-82152-00-00 Holder, Fuse |
6G5-82152-00-00 |
from US $2.36 |
||
