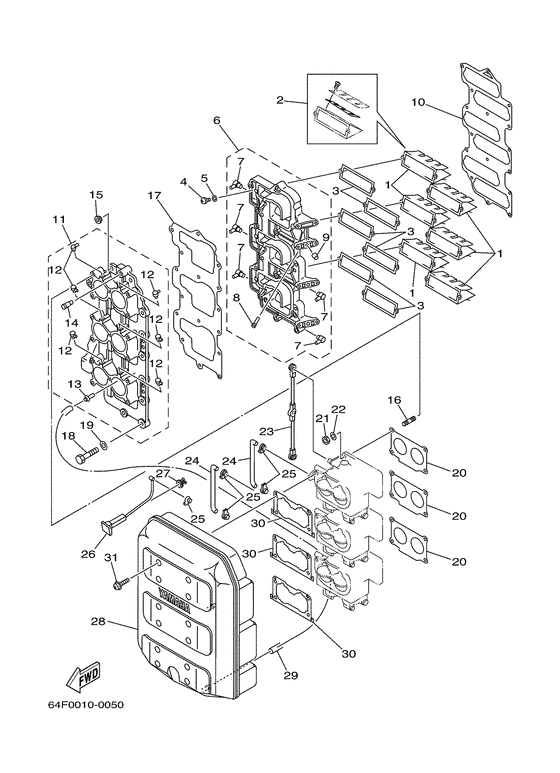

Intake Diagram Yamaha D150 ETOL
- Year
- 2002
- Model
- D150H
- Model code
- 65N
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 150
- Sales region
- Europe (General) (030)
- Colour
- Shiny Black (SBL; 00NA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6K7-13610-00-00 1082 Reed Valve Assy |
6K7-13610-00-00 |
from US $287.37 |
||
|
02
|
02
6E5-W0004-00-00 Reed Set |
6E5-W0004-00-00 |
from US $52.78 |
||
|
03
|
03
6K7-13621-A1-00 Gasket, Valve Seat |
6K7-13621-A1-00 |
from US $3.53 |
||
|
04
|
04
97880-05016-00 Screw, Pan Head |
97880-05016-00 |
US $1.42 |
||
| replacement | |||||
|
04
|
04
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
05
|
05
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
06
|
06
64E-13624-00-1S Plate,reed Valve |
64E-13624-00-1S |
from US $221.06 |
||
|
07
|
07
688-11372-00-00 Nipple, Hose |
688-11372-00-00 |
US $8.08 |
||
| replacement | |||||
|
07
|
07
6H4-11372-01-00 Nipple, Hose |
6H4-11372-01-00 |
from US $8.08 |
||
|
08
|
08
6R5-14485-00-00 Pipe, Joint J |
6R5-14485-00-00 |
from US $7.37 |
||
|
09
|
09
90336-08M06-00 Plug, Taper(64F) |
90336-08M06-00 |
from US $25.36 |
||
|
10
|
10
6K7-13646-A2-00 Gasket, Manifold 2 |
6K7-13646-A2-00 |
from US $17.99 |
||
|
11
|
11
64E-13641-00-1S Manifold, Intake 1 |
64E-13641-00-1S |
from US $467.48 |
||
|
12
|
12
6E5-13552-00-00 Nozzle |
6E5-13552-00-00 |
US $5.95 |
||
| replacement | |||||
|
12
|
12
6E5-13552-01-00 Nozzle |
6E5-13552-01-00 |
from US $3.38 |
||
|
13
|
13
624-14485-00-00 Pipe, Joint |
624-14485-00-00 |
from US $5.24 |
||
|
14
|
14
6K7-81338-01-00 Stay |
6K7-81338-01-00 |
from US $7.37 |
||
|
15
|
15
90480-10M28-00 1082 Grommet (6K7) |
90480-10M28-00 |
from US $1.84 |
||
|
16
|
16
90116-06M30-00 Bolt, Stud |
90116-06M30-00 |
from US $1.98 |
||
|
17
|
17
64E-13645-A0-00 Gasket, Manifold 1 |
64E-13645-A0-00 |
from US $33.58 |
||
|
18
|
18
97013-06050-00 Bolt |
97013-06050-00 |
from US $1.57 |
||
|
19
|
19
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
20
|
20
6E5-14198-A2-00 Gasket |
6E5-14198-A2-00 |
from US $6.74 |
||
|
21
|
21
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
23
|
23
6G5-41217-01-00 Rod, Accel. Lever |
6G5-41217-01-00 |
from US $8.76 |
||
|
24
|
24
6E5-41256-01-00 Rod, Choke 1 |
6E5-41256-01-00 |
from US $5.67 |
||
|
25
|
25
661-41262-02-00 Joint, Choke Lever |
661-41262-02-00 |
from US $7.93 |
||
|
26
|
26
61H-41271-10-00 Knob, Choke |
61H-41271-10-00 |
US $25.79 |
||
| replacement | |||||
|
26
|
26
61H-41271-11-00 Knob, Choke |
61H-41271-11-00 |
from US $25.79 |
||
|
27
|
27
689-41273-00-00 Grommet |
689-41273-00-00 |
from US $3.38 |
||
|
28
|
28
64D-14440-00-00 Silencer Assy, Intake |
64D-14440-00-00 |
from US $263.89 |
||
|
29
|
29
90445-07MA3-00 Hose (L200) |
90445-07MA3-00 |
from US $3.83 |
||
|
30
|
30
6K7-14483-00-00 Gasket |
6K7-14483-00-00 |
from US $2.36 |
||
|
31
|
31
90159-06M08-00 Screw, With Washer |
90159-06M08-00 |
from US $2.91 |
||
