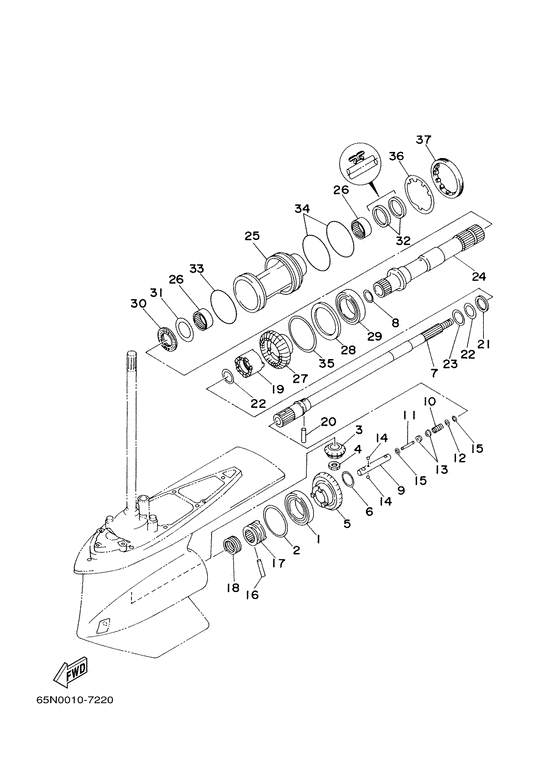

Lower casing. drive 2 Diagram Yamaha D150 ETOL
- Year
- 2002
- Model
- D150H
- Model code
- 65N
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 150
- Sales region
- Europe (General) (030)
- Colour
- Shiny Black (SBL; 00NA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
93332-00048-00 Bearing |
93332-00048-00 |
from US $120.52 |
||
|
02
|
02
6G5-45567-01-15
Shim (T:0.15Mm)
Ur |
6G5-45567-01-15 |
— | ||
| replacement | |||||
|
02
|
02
6G5-45567-20-00 Shim (T:0.15Mm)Ur |
6G5-45567-20-00 |
from US $7.65 |
||
|
02
|
02
6G5-45567-01-18
Shim (T:0.18Mm)
Ur |
6G5-45567-01-18 |
— | ||
| replacement | |||||
|
02
|
02
6G5-45567-30-00 Shim (T:0.18Mm)Ur |
6G5-45567-30-00 |
from US $2.70 |
||
|
02
|
02
6G5-45567-01-30
Shim (T:0.30Mm)
Ur |
6G5-45567-01-30 |
— | ||
| replacement | |||||
|
02
|
02
6G5-45567-40-00 Shim (T:0.30Mm)Ur |
6G5-45567-40-00 |
from US $8.05 |
||
|
02
|
02
6G5-45567-01-40 Shim (T:0.40Mm)Ur |
6G5-45567-01-40 |
US $7.65 |
||
| replacement | |||||
|
02
|
02
6G5-45567-50-00 Shim (T:0.40Mm)Ur |
6G5-45567-50-00 |
from US $8.05 |
||
|
02
|
02
6G5-45567-01-50 Shim (T:0.50Mm)Ur |
6G5-45567-01-50 |
US $7.65 |
||
| replacement | |||||
|
02
|
02
6G5-45567-60-00 Shim (T:0.50Mm)Ur |
6G5-45567-60-00 |
from US $7.65 |
||
|
02
|
02
6G5-45567-01-10
Shim (T:0.10Mm)
Ur |
6G5-45567-01-10 |
— | ||
| replacement | |||||
|
02
|
02
6G5-45567-01-00 Shim (T:0.10Mm)Ur |
6G5-45567-01-00 |
from US $3.38 |
||
|
02
|
02
6G5-45567-01-12
Shim (T:0.12Mm)
Ur |
6G5-45567-01-12 |
— | ||
| replacement | |||||
|
02
|
02
6G5-45567-10-00 Shim (T:0.12Mm)Ur |
6G5-45567-10-00 |
from US $7.65 |
||
|
03
|
03
65N-45551-00-00 Pinion (13T) |
65N-45551-00-00 |
US $631.96 |
||
|
04
|
04
90170-16M01-00 Nut |
90170-16M01-00 |
from US $5.74 |
||
|
05
|
05
65N-45560-00-00 Gear 1 (26T) |
65N-45560-00-00 |
US $1,501.03 |
||
|
06
|
06
90201-35M02-00 Washer, Plate |
90201-35M02-00 |
from US $31.57 |
||
|
07
|
07
65N-45611-00-00 Shaft, Propeller |
65N-45611-00-00 |
from US $473.31 |
||
|
08
|
08
90201-28M03-00
Washer, Plate
|
90201-28M03-00 |
— | ||
|
09
|
09
65N-45634-00-00
Slide, Shift
|
65N-45634-00-00 |
— | ||
|
10
|
10
90501-10M77-00 Spring, Compression |
90501-10M77-00 |
from US $2.98 |
||
|
11
|
11
6H1-45668-00-00 Shaft, Free 1 |
6H1-45668-00-00 |
from US $9.07 |
||
|
12
|
12
90201-02M00-00 Washer, Plate |
90201-02M00-00 |
from US $2.69 |
||
|
13
|
13
61A-45635-00-00 Plunger, Shift |
61A-45635-00-00 |
from US $9.10 |
||
|
14
|
14
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
15
|
15
90183-02M03-00 Nut, Spring |
90183-02M03-00 |
from US $1.60 |
||
|
16
|
16
90250-08M07-00 Pin, Straight |
90250-08M07-00 |
from US $4.39 |
||
|
17
|
17
65N-45631-00-00 Clutch, Dog |
65N-45631-00-00 |
from US $241.78 |
||
|
18
|
18
6E5-45633-01-00 Ring, Cross Pin |
6E5-45633-01-00 |
from US $10.78 |
||
|
19
|
19
65N-45631-10-00
Clutch, Dog
|
65N-45631-10-00 |
— | ||
|
20
|
20
93606-42M22-00
Pin, Dowel
|
93606-42M22-00 |
— | ||
|
21
|
21
90387-32M00-00 Collar |
90387-32M00-00 |
US $85.34 |
||
|
22
|
22
90201-36M00-00 Washer, Plate |
90201-36M00-00 |
from US $55.54 |
||
|
23
|
23
93440-36M09-00 Circlip |
93440-36M09-00 |
US $6.31 |
||
|
24
|
24
65N-45611-50-00 Shaft, Propeller |
65N-45611-50-00 |
from US $473.31 |
||
|
25
|
25
65N-45332-00-94
Housing, Bearing
|
65N-45332-00-94 |
— | ||
|
26
|
26
93317-445U9-00 Bearing |
93317-445U9-00 |
from US $81.58 |
||
|
27
|
27
65N-45570-00-00
Gear 2 (26T)
|
65N-45570-00-00 |
— | ||
|
28
|
28
65N-45576-00-00 Washer, Thrust 2 |
65N-45576-00-00 |
from US $19.09 |
||
|
29
|
29
93332-00048-00 Bearing |
93332-00048-00 |
from US $120.52 |
||
|
30
|
30
93341-445V3-00 Bearing |
93341-445V3-00 |
from US $163.50 |
||
|
31
|
31
65N-45578-00-30
Shim (T:0.30Mm)
Ur |
65N-45578-00-30 |
— | ||
| replacement | |||||
|
31
|
31
65N-45578-40-00
Shim (T:0.30Mm)
Ur |
65N-45578-40-00 |
— | ||
|
31
|
31
65N-45578-00-40
Shim (T:0.40Mm)
Ur |
65N-45578-00-40 |
— | ||
|
31
|
31
65N-45578-00-50
Shim (T:0.50Mm)
Ur |
65N-45578-00-50 |
— | ||
|
31
|
31
65N-45578-00-10
Shim (T:0.10Mm)
Ur |
65N-45578-00-10 |
— | ||
| replacement | |||||
|
31
|
31
65N-45578-00-00
Shim (T:0.10Mm)
Ur |
65N-45578-00-00 |
— | ||
|
31
|
31
65N-45578-00-12
Shim (T:0.12Mm)
Ur |
65N-45578-00-12 |
— | ||
|
31
|
31
65N-45578-00-15
Shim (T:0.15Mm)
Ur |
65N-45578-00-15 |
— | ||
| replacement | |||||
|
31
|
31
65N-45578-20-00
Shim (T:0.15Mm)
Ur |
65N-45578-20-00 |
— | ||
|
31
|
31
65N-45578-00-18
Shim (T:0.18Mm)
Ur |
65N-45578-00-18 |
— | ||
|
32
|
32
93101-45M59-00 Oil Seal |
93101-45M59-00 |
from US $23.18 |
||
|
33
|
33
93210-98M33-00 O-Ring |
93210-98M33-00 |
from US $10.48 |
||
|
34
|
34
93211-03MH9-00 O-Ring |
93211-03MH9-00 |
from US $15.89 |
||
|
35
|
35
65N-45577-00-10
Shim (T:0.10Mm)
Ur |
65N-45577-00-10 |
— | ||
| replacement | |||||
|
35
|
35
65N-45577-00-00 Shim (T:0.10Mm)Ur |
65N-45577-00-00 |
US $17.62 |
||
|
35
|
35
65N-45577-00-12 Shim (T:0.12Mm)Ur |
65N-45577-00-12 |
US $10.02 |
||
| replacement | |||||
|
35
|
35
65N-45577-10-00 Shim (T:0.12Mm)Ur |
65N-45577-10-00 |
from US $7.04 |
||
|
35
|
35
65N-45577-00-15
Shim (T:0.15Mm)
Ur |
65N-45577-00-15 |
— | ||
| replacement | |||||
|
35
|
35
65N-45577-20-00
Shim (T:0.15Mm)
Ur |
65N-45577-20-00 |
— | ||
|
35
|
35
65N-45577-00-18 Shim (T:0.18Mm)Ur |
65N-45577-00-18 |
US $10.02 |
||
| replacement | |||||
|
35
|
35
65N-45577-30-00 Shim (T:0.18Mm)Ur |
65N-45577-30-00 |
from US $7.04 |
||
|
35
|
35
65N-45577-00-30
Shim (T:0.30Mm)
Ur |
65N-45577-00-30 |
— | ||
| replacement | |||||
|
35
|
35
65N-45577-40-00 Shim (T:0.30Mm)Ur |
65N-45577-40-00 |
US $14.69 |
||
|
35
|
35
65N-45577-00-40
Shim (T:0.40Mm)
Ur |
65N-45577-00-40 |
— | ||
| replacement | |||||
|
35
|
35
65N-45577-50-00
Shim (T:0.40Mm)
Ur |
65N-45577-50-00 |
— | ||
|
35
|
35
65N-45577-00-50
Shim (T:0.50Mm)
Ur |
65N-45577-00-50 |
— | ||
| replacement | |||||
|
35
|
35
65N-45577-60-00 Shim (T:0.50Mm)Ur |
65N-45577-60-00 |
US $18.13 |
||
|
36
|
36
65N-45383-00-00 Washer, Claw |
65N-45383-00-00 |
from US $20.71 |
||
|
37
|
37
65N-45384-00-00 Nut |
65N-45384-00-00 |
from US $76.96 |
||
