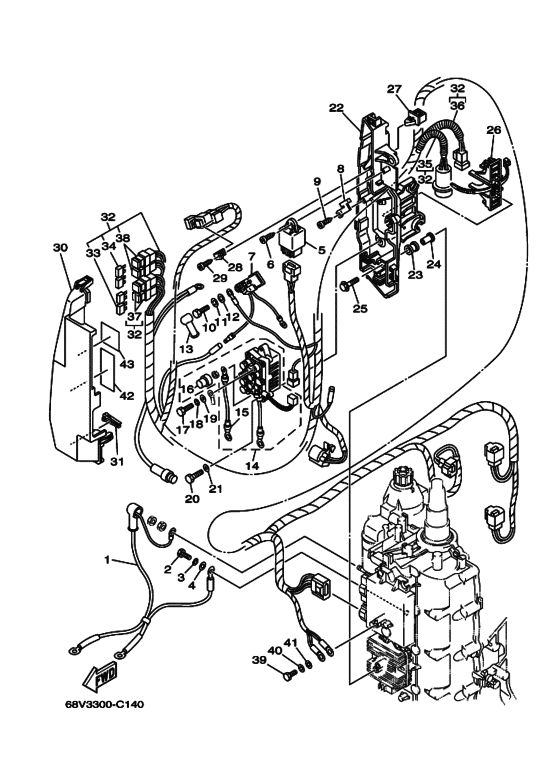

Electrical 2 Diagram Yamaha F115 ETL/X
- Year
- 2004
- Model
- F115A
- Model code
- 68V
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 115
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68V-82105-J0-00 Battery Cableワイヤハーネス; |
68V-82105-J0-00 |
US $196.19 |
||
| replacements | |||||
|
1
|
1
68V-82105-J1-00 Battery Cableワイヤハーネス; |
68V-82105-J1-00 |
US $196.19 |
||
|
1
|
1
68V-82105-J2-00 BATTERY CABLEワイヤハーネス; |
68V-82105-J2-00 |
from US $203.18 |
||
|
2
|
2
97013-06020-00 Boltボルト; |
97013-06020-00 |
from US $1.42 |
||
|
3
|
3
92903-06100-00 Washer, Springワツシヤ，スプリング; |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
3
|
3
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
929-03066-00-00
Washer, Plate
ワツシヤ，プレート; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
4
|
4
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
5
|
5
68V-81950-00-00 Relay Assyリレーアセンブリ; |
68V-81950-00-00 |
from US $81.14 |
||
|
6
|
6
97780-60625-00 Screw, Tapping(65J) |
97780-60625-00 |
from US $2.22 |
||
|
7
|
7
68V-8194A-00-00 Relay |
68V-8194A-00-00 |
from US $83.48 |
||
|
8
|
8
68V-81953-00-00 Stay, Relayステー，リレー; |
68V-81953-00-00 |
from US $3.68 |
||
|
9
|
9
97780-60620-00 Screw, Tapping |
97780-60620-00 |
from US $2.41 |
||
| replacement | |||||
|
9
|
9
97780-60520-00 Screw, Tapping |
97780-60520-00 |
from US $2.02 |
||
|
10
|
10
970-95060-10-00
Bolt
ボルト; |
970-95060-10-00 |
— | ||
| replacement | |||||
|
10
|
10
97085-06010-00 Boltボルト; |
97085-06010-00 |
from US $1.28 |
||
|
11
|
11
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
13
|
13
6G5-82119-00-00 Cover, Lead Wireカバー，リードワイヤ; |
6G5-82119-00-00 |
US $5.53 |
||
| replacement | |||||
|
13
|
13
6G5-82119-10-00 Cover, Lead Wireカバー，リードワイヤ; |
6G5-82119-10-00 |
from US $5.53 |
||
|
14
|
14
68V-8195B-01-00 Relay Assyリレーアセンブリ; |
68V-8195B-01-00 |
from US $223.82 |
||
|
15
|
15
68V-81949-00-00 Wire, Lead．ワイヤ，リード; |
68V-81949-00-00 |
from US $25.79 |
||
|
16
|
16
68V-82532-00-00 Cap．キヤツプ; |
68V-82532-00-00 |
from US $2.83 |
||
|
17
|
17
970-95060-10-00
Bolt
ボルト; |
970-95060-10-00 |
— | ||
| replacement | |||||
|
17
|
17
97085-06010-00 Boltボルト; |
97085-06010-00 |
from US $1.28 |
||
|
18
|
18
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
20
|
20
97013-06020-00 Boltボルト; |
97013-06020-00 |
from US $1.42 |
||
|
21
|
21
929-03066-00-00
Washer, Plate
ワツシヤ，プレート; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
21
|
21
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
22
|
22
68V-81948-01-00 Bracket |
68V-81948-01-00 |
US $45.45 |
||
| replacement | |||||
|
22
|
22
68V-81948-03-00 Bracket |
68V-81948-03-00 |
from US $45.45 |
||
|
23
|
23
6A0-82317-00-00 Damper, Ignition Coilダンパ，イグニツシヨンコイル; |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
23
|
23
6A0-82317-01-00 DAMPER IGNITION COILダンパ，イグニツシヨンコイル; |
6A0-82317-01-00 |
from US $2.36 |
||
|
24
|
24
624-42542-00-00 Collarパイプ; |
624-42542-00-00 |
US $6.23 |
||
| replacement | |||||
|
24
|
24
90387-06119-00 Collarパイプ; |
90387-06119-00 |
from US $3.26 |
||
|
25
|
25
90119-06M59-00 Bolt, With Washer |
90119-06M59-00 |
US $2.83 |
||
| replacement | |||||
|
25
|
25
901-19062-89-00 BOLT WITH WASHER |
901-19062-89-00 |
from US $2.70 |
||
|
26
|
26
68V-82594-00-00 Clamp |
68V-82594-00-00 |
from US $6.80 |
||
|
27
|
27
90464-12M58-00 Clamp |
90464-12M58-00 |
from US $2.41 |
||
|
28
|
28
68V-85548-00-00 Holder |
68V-85548-00-00 |
US $3.12 |
||
| replacement | |||||
|
28
|
28
68V-85548-01-00 Holder |
68V-85548-01-00 |
from US $3.12 |
||
|
29
|
29
97780-60620-00 Screw, Tapping |
97780-60620-00 |
from US $2.41 |
||
| replacement | |||||
|
29
|
29
97780-60520-00 Screw, Tapping |
97780-60520-00 |
from US $2.02 |
||
|
30
|
30
68V-81942-01-00 Coverカバー; |
68V-81942-01-00 |
from US $43.66 |
||
| replacement | |||||
|
30
|
30
68V-81942-03-00 Coverカバー; |
68V-81942-03-00 |
from US $43.66 |
||
|
31
|
31
67F-2812A-00-00 Puller, Fuse |
67F-2812A-00-00 |
from US $3.12 |
||
|
32
|
32
68V-82590-10-00 Wire Harness Assyワイヤハーネスアセンブリ; |
68V-82590-10-00 |
US $732.60 |
||
| replacement | |||||
|
32
|
32
68V-82590-11-00
Wire Harness Assy
ワイヤハーネスアセンブリ; |
68V-82590-11-00 |
— | ||
|
33
|
33
67F-82151-00-00
Fuse (20A-Bl)
．フユーズ ; ２０Ａ |
67F-82151-00-00 |
— | ||
| replacement | |||||
|
33
|
33
5JJ-82151-20-00 Fuse (20A-Bl)．フユーズ ; ２０Ａ |
5JJ-82151-20-00 |
from US $3.74 |
||
|
34
|
34
67F-82151-10-00
Fuse (30A-Bl)
．フユーズ ; ３０Ａ |
67F-82151-10-00 |
— | ||
| replacement | |||||
|
34
|
34
5JJ-82151-60-00 Fuse (30A-Bl)．フユーズ ; ３０Ａ |
5JJ-82151-60-00 |
from US $2.83 |
||
|
35
|
35
90447-10003-00 Tube．ホース，ウイズスプリング; |
90447-10003-00 |
from US $2.83 |
||
|
36
|
36
90447-07007-00 Tube．ホース，ウイズスプリング; |
90447-07007-00 |
from US $2.83 |
||
|
37
|
37
67F-8215B-10-00 Cap (Yellow)．キヤツプ ; イエロー |
67F-8215B-10-00 |
from US $10.20 |
||
|
38
|
38
67F-8215B-20-00 Cap (Green)．キヤツプ ; グリーン |
67F-8215B-20-00 |
from US $10.20 |
||
|
39
|
39
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
39
|
39
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.66 |
||
|
40
|
40
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
41
|
41
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
41
|
41
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
42
|
42
68V-81919-00-00 Graphic, Regulatorグラフイツク， レギユレータ; |
68V-81919-00-00 |
from US $8.19 |
||
|
43
|
43
68V-81919-10-00 Graphic, Regulatorグラフイツク， レギユレータ; |
68V-81919-10-00 |
from US $7.11 |
||
