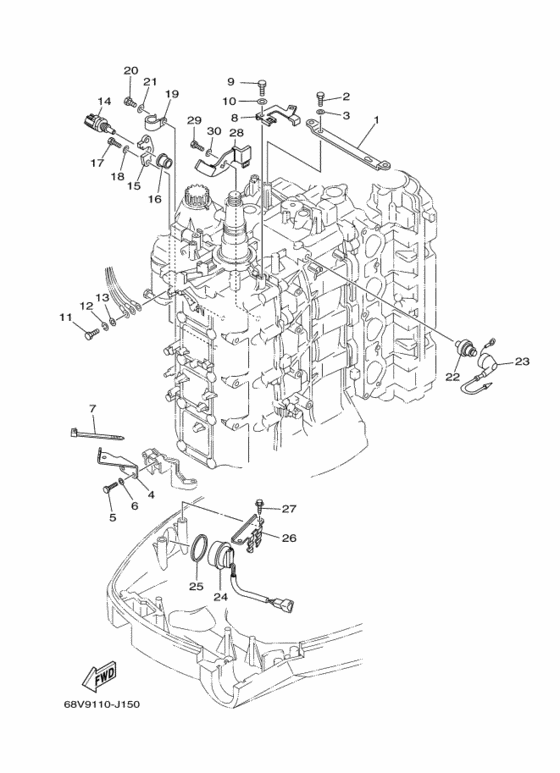

Electrical 3 Diagram Yamaha F115 ETL/X
- Year
- 2011
- Model
- F115A
- Model code
- 68VA
- Year
- 2011
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 115
- Sales region
- Finland (030)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67F-8132G-01-00 Plate |
67F-8132G-01-00 |
from US $21.68 |
||
|
2
|
2
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
2
|
2
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
3
|
3
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
3
|
3
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
4
|
4
68V-81528-00-00 Clamp 1 |
68V-81528-00-00 |
from US $25.36 |
||
|
5
|
5
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
5
|
5
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
6
|
6
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
7
|
7
90465-13M18-00 Clamp |
90465-13M18-00 |
from US $1.35 |
||
| replacements | |||||
|
7
|
7
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
7
|
7
90465-13M30-00 Clamp |
90465-13M30-00 |
from US $1.90 |
||
|
8
|
8
68V-82588-11-00 Plate |
68V-82588-11-00 |
from US $15.16 |
||
|
9
|
9
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
9
|
9
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
10
|
10
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
11
|
11
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
11
|
11
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
67F-85790-00-00 Thermosensor Assy |
67F-85790-00-00 |
from US $72.40 |
||
|
15
|
15
67F-85757-00-00 Retainer |
67F-85757-00-00 |
from US $12.61 |
||
|
16
|
16
68V-85753-00-00 Gasket, Sender Unit |
68V-85753-00-00 |
US $2.55 |
||
|
17
|
17
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
17
|
17
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
18
|
18
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
19
|
19
90465-06M86-00 Clamp |
90465-06M86-00 |
from US $4.82 |
||
|
20
|
20
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
20
|
20
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
21
|
21
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
21
|
21
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
22
|
22
68V-82504-00-00 Oil Pressure Switch Assy |
68V-82504-00-00 |
from US $34.41 |
||
|
23
|
23
68V-81315-00-00 Lead Wire Assy |
68V-81315-00-00 |
US $12.33 |
||
|
24
|
24
63D-82563-10-00
Trim & Tilt Switch Assy
|
63D-82563-10-00 |
— | ||
| replacements | |||||
|
24
|
24
6R3-82563-01-00 Trim & Tilt Switch Assy |
6R3-82563-01-00 |
from US $78.10 |
||
|
24
|
24
63D-82563-11-00 Trim & Tilt Switch Assy |
63D-82563-11-00 |
from US $76.40 |
||
|
25
|
25
6E5-82587-00-00 Gasket |
6E5-82587-00-00 |
US $5.58 |
||
|
26
|
26
67F-83614-00-00 Bracket |
67F-83614-00-00 |
from US $12.75 |
||
|
27
|
27
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
28
|
28
6D8-8252H-01-00 Plate, Holder |
6D8-8252H-01-00 |
from US $43.80 |
||
|
29
|
29
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
29
|
29
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
30
|
30
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
30
|
30
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
