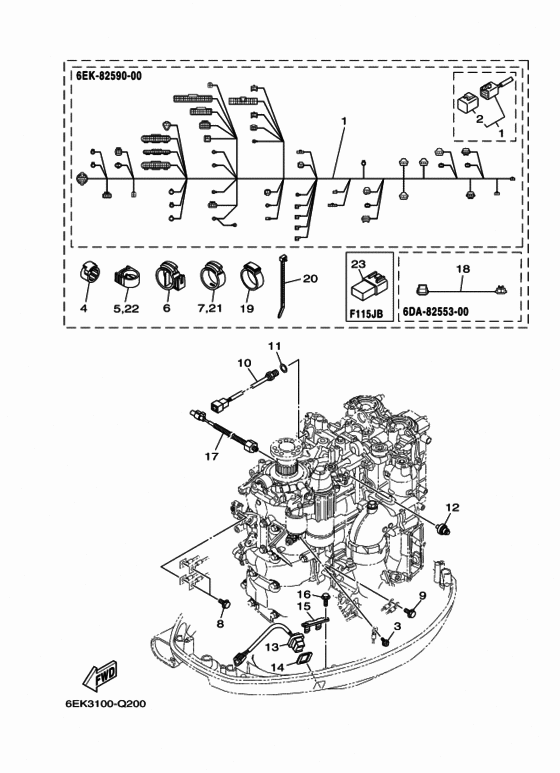

Electrical 5 Diagram Yamaha F115 ETL/X
- Year
- 2016
- Model
- F115B
- Model code
- 6EK3
- Year
- 2016
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 115
- Sales region
- Canada (020)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6EK-82590-00-00 Wire Harness Assy |
6EK-82590-00-00 |
US $760.93 |
||
|
2
|
2
6Y8-82582-11-00 Cap 1 (4Pin) |
6Y8-82582-11-00 |
from US $8.22 |
||
|
3
|
3
979-85043-08-00 Screw, With Washer |
979-85043-08-00 |
from US $1.28 |
||
|
4
|
4
90464-13227-00 Clamp |
90464-13227-00 |
from US $1.81 |
||
|
5
|
5
90464-18004-00 Clamp |
90464-18004-00 |
from US $2.69 |
||
|
6
|
6
90464-22005-00 Clamp |
90464-22005-00 |
from US $1.28 |
||
|
7
|
7
90464-16001-00 Clamp |
90464-16001-00 |
from US $1.84 |
||
|
8
|
8
97595-06516-00 Bolt, With Washer |
97595-06516-00 |
US $3.05 |
||
| replacement | |||||
|
8
|
8
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
9
|
9
97595-06516-00 Bolt, With Washer |
97595-06516-00 |
US $3.05 |
||
| replacement | |||||
|
9
|
9
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
10
|
10
6CJ-85790-00-00 Thermosensor Assy |
6CJ-85790-00-00 |
from US $61.09 |
||
|
11
|
11
904-30141-15-00 Gasket |
904-30141-15-00 |
from US $2.08 |
||
|
12
|
12
68V-82504-00-00 Oil Pressure Switch Assy |
68V-82504-00-00 |
from US $34.41 |
||
|
13
|
13
69J-82563-01-00 Trim & Tilt Switch Assy |
69J-82563-01-00 |
from US $72.38 |
||
|
14
|
14
69J-82587-00-00 Gasket |
69J-82587-00-00 |
US $5.38 |
||
|
15
|
15
69J-83614-00-00 Bracket |
69J-83614-00-00 |
from US $12.61 |
||
|
16
|
16
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
17
|
17
6CJ-85780-00-00 Sensor, Knock |
6CJ-85780-00-00 |
from US $232.98 |
||
| replacement | |||||
|
17
|
17
6CJ-85780-02-00 Sensor, Knock |
6CJ-85780-02-00 |
US $511.11 |
||
|
18
|
18
6DA-82553-00-00 Extension, Wire Lead |
6DA-82553-00-00 |
from US $23.38 |
||
|
19
|
19
90464-26001-00 Clamp |
90464-26001-00 |
from US $1.70 |
||
|
20
|
20
90465-13M18-00 Clamp |
90465-13M18-00 |
from US $1.35 |
||
| replacements | |||||
|
20
|
20
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
20
|
20
90465-13M30-00 Clamp |
90465-13M30-00 |
from US $1.90 |
||
|
21
|
21
90464-16001-00 Clamp |
90464-16001-00 |
from US $1.84 |
||
|
22
|
22
90464-18004-00 Clamp |
90464-18004-00 |
from US $2.69 |
||
