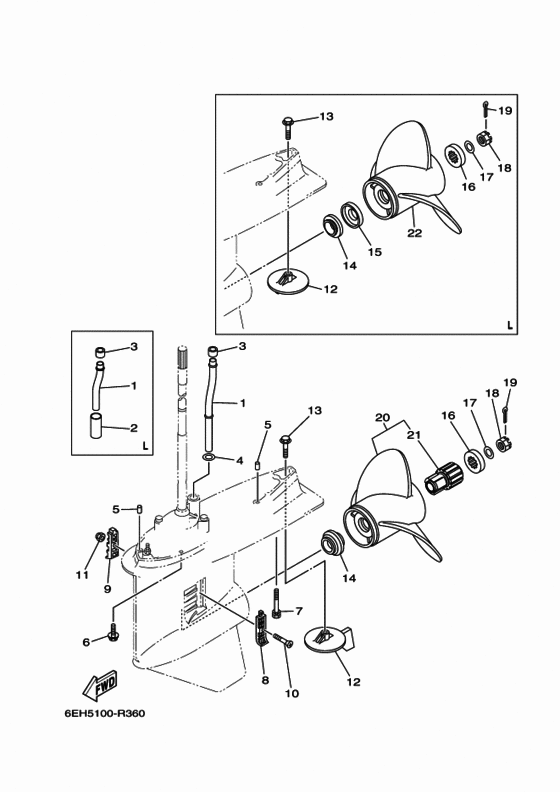

Lower casing & drive 2 Diagram Yamaha F150 XA
- Year
- 2017
- Model
- F150C/VF150A, (V-Max)
- Model code
- 6EH5
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 150
- Sales region
- Canada (320)
- Colour
- Shiny Black (SBL; 00NA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6DA-44361-00-00 Tube, Water 1X(25.3") |
6DA-44361-00-00 |
from US $34.57 |
||
|
3
|
3
6E5-44365-00-00
Damper, Water Seal 1
|
6E5-44365-00-00 |
— | ||
| replacement | |||||
|
3
|
3
6E5-44365-01-00 DAMPER, WATER SEAL 1 |
6E5-44365-01-00 |
from US $2.93 |
||
|
4
|
4
90202-16061-00 Washer, PlateX(25.3") |
90202-16061-00 |
from US $2.69 |
||
|
5
|
5
936-0816M-16-00 Pin, Dowel |
936-0816M-16-00 |
from US $4.72 |
||
|
6
|
6
97595-10645-00 Bolt, With Washer |
97595-10645-00 |
US $5.81 |
||
| replacement | |||||
|
6
|
6
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
7
|
7
90119-10MA2-00 Bolt, With Washer |
90119-10MA2-00 |
from US $9.07 |
||
| replacement | |||||
|
7
|
7
90119-10M89-00 Bolt, With Washer |
90119-10M89-00 |
from US $9.07 |
||
|
8
|
8
6J9-45214-00-00 Cover, Water Inlet 1 |
6J9-45214-00-00 |
from US $5.06 |
||
|
9
|
9
6J9-45215-00-00 Cover, Water Inlet 2 |
6J9-45215-00-00 |
from US $5.06 |
||
|
10
|
10
90152-05M08-00 Screw, Countersunk |
90152-05M08-00 |
from US $3.04 |
||
|
11
|
11
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
11
|
11
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2.36 |
||
|
12
|
12
6J9-45371-01-00 Tab-TrimX(25.3") |
6J9-45371-01-00 |
from US $28.17 |
||
|
13
|
13
90105-10M00-00 Bolt, Flange |
90105-10M00-00 |
from US $6.40 |
||
|
14
|
14
63P-45987-00-00 Spacer 1X(25.3") |
63P-45987-00-00 |
from US $69.77 |
||
|
16
|
16
688-45997-01-00 Spacer 2 |
688-45997-01-00 |
from US $27.28 |
||
|
17
|
17
92990-18200-00 Washer |
92990-18200-00 |
from US $3.69 |
||
|
18
|
18
90171-18M04-00 Nut, Castle |
90171-18M04-00 |
from US $12.46 |
||
|
19
|
19
914-90400-30-00 Pin. Cotter |
914-90400-30-00 |
from US $2.36 |
||
|
20
|
20
68F-45970-20-00 PROP 14 1/2X15R RELIUR SDS PROP. |
68F-45970-20-00 |
from US $1,195.32 |
||
|
20
|
20
68F-45972-20-00 PROP 14 1/4X17R RELIUR SDS PROP. |
68F-45972-20-00 |
from US $1,195.32 |
||
|
20
|
20
68F-45978-20-00 PROP 14 1/4X18R RELIUR SDS PROP. |
68F-45978-20-00 |
from US $1,195.32 |
||
|
20
|
20
68F-45974-20-00 PROP 13 3/4X19R RELIUR SDS PROP. |
68F-45974-20-00 |
from US $1,195.32 |
||
|
20
|
20
68F-45976-20-00 PROP 13 3/4X21R RELIUR SDS PROP. |
68F-45976-20-00 |
from US $1,195.32 |
||
|
21
|
21
6CE-45C81-10-00 DAMPER FOR 6CE/F PRO |
6CE-45C81-10-00 |
from US $117.45 |
||
