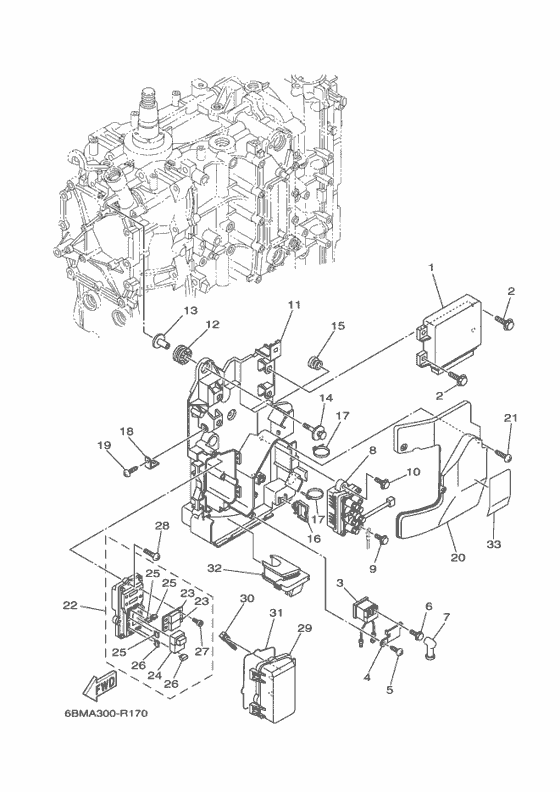

Electrical 2 Diagram Yamaha F150 ETL/X
- Year
- 2017
- Model
- F150F
- Model code
- 6BMA
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 150
- Sales region
- Europe (090)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6BM-8591A-04-00 Engine Control Unit Assy |
6BM-8591A-04-00 |
US $1,795.20 |
||
|
2
|
2
97595-06516-00 Bolt, With Washer |
97595-06516-00 |
US $2.55 |
||
| replacement | |||||
|
2
|
2
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
3
|
3
68V-8194A-00-00 Relay |
68V-8194A-00-00 |
from US $83.48 |
||
|
4
|
4
68V-81953-00-00 Stay, Relay |
68V-81953-00-00 |
from US $3.68 |
||
|
5
|
5
97780-60620-00 Screw, Tapping |
97780-60620-00 |
from US $2.41 |
||
| replacement | |||||
|
5
|
5
97780-60520-00 Screw, Tapping |
97780-60520-00 |
from US $2.02 |
||
|
6
|
6
97595-06610-00 Bolt, With Washer |
97595-06610-00 |
US $1.07 |
||
|
7
|
7
6G5-82119-00-00 Cover, Lead Wire |
6G5-82119-00-00 |
US $5.53 |
||
| replacement | |||||
|
7
|
7
6G5-82119-10-00 Cover, Lead Wire |
6G5-82119-10-00 |
from US $5.53 |
||
|
8
|
8
63P-81950-00-00 Relay Assy |
63P-81950-00-00 |
from US $304.04 |
||
| replacement | |||||
|
8
|
8
63P-W8195-00-00 Relay Assy |
63P-W8195-00-00 |
from US $250.46 |
||
|
9
|
9
97595-06610-00 Bolt, With Washer |
97595-06610-00 |
US $1.07 |
||
|
10
|
10
97513-06520-00 Bolt, With Washer |
97513-06520-00 |
from US $1.78 |
||
| replacement | |||||
|
10
|
10
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
11
|
11
63P-81948-00-00 Bracket |
63P-81948-00-00 |
US $68.80 |
||
| replacement | |||||
|
11
|
11
63P-81948-01-00 Bracket |
63P-81948-01-00 |
from US $68.80 |
||
|
12
|
12
68F-85516-01-00 Spacer |
68F-85516-01-00 |
from US $3.04 |
||
|
13
|
13
90387-06176-00 Collar |
90387-06176-00 |
from US $4.68 |
||
|
14
|
14
68F-85119-00-00 Bolt |
68F-85119-00-00 |
from US $3.54 |
||
|
15
|
15
90480-10627-00 Grommet |
90480-10627-00 |
from US $1.94 |
||
|
16
|
16
90464-23199-00 Clamp |
90464-23199-00 |
from US $1.84 |
||
|
17
|
17
90465-13M18-00 Clamp |
90465-13M18-00 |
from US $1.35 |
||
| replacements | |||||
|
17
|
17
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
17
|
17
90465-13M30-00 Clamp |
90465-13M30-00 |
from US $1.90 |
||
|
18
|
18
68V-85548-01-00 Holder |
68V-85548-01-00 |
from US $3.12 |
||
|
19
|
19
97780-60620-00 Screw, Tapping |
97780-60620-00 |
from US $2.41 |
||
| replacement | |||||
|
19
|
19
97780-60520-00 Screw, Tapping |
97780-60520-00 |
from US $2.02 |
||
|
20
|
20
63P-81942-00-00 Cover |
63P-81942-00-00 |
from US $13.03 |
||
|
21
|
21
90169-05M00-00 Screw, Truss Head Tapping |
90169-05M00-00 |
from US $2.08 |
||
|
22
|
22
63P-82170-02-00 Fuse Box Assy |
63P-82170-02-00 |
from US $469.48 |
||
|
23
|
23
63P-82151-00-00 Fuse (50A) |
63P-82151-00-00 |
from US $44.36 |
||
|
24
|
24
6AW-8195A-00-00 Relay Assy |
6AW-8195A-00-00 |
from US $76.95 |
||
|
25
|
25
67F-82151-00-00
Fuse (20A-Bl)
|
67F-82151-00-00 |
— | ||
| replacement | |||||
|
25
|
25
5JJ-82151-20-00 Fuse (20A-Bl) |
5JJ-82151-20-00 |
from US $3.74 |
||
|
26
|
26
67F-82151-10-00
Fuse (30A-Bl)
|
67F-82151-10-00 |
— | ||
| replacement | |||||
|
26
|
26
5JJ-82151-60-00 Fuse (30A-Bl) |
5JJ-82151-60-00 |
from US $2.83 |
||
|
27
|
27
68F-82846-00-00 Screw, Pan Head (M5) |
68F-82846-00-00 |
from US $2.55 |
||
|
28
|
28
97780-50620-00 Screw, Tapping |
97780-50620-00 |
from US $1.56 |
||
|
29
|
29
60V-85544-00-00 Case |
60V-85544-00-00 |
from US $10.20 |
||
|
30
|
30
67F-2812A-00-00 Puller, Fuse |
67F-2812A-00-00 |
from US $3.12 |
||
|
31
|
31
68F-82176-00-00 Damper |
68F-82176-00-00 |
from US $5.24 |
||
|
32
|
32
63P-81336-00-00 Grommet |
63P-81336-00-00 |
from US $16.29 |
||
|
33
|
33
63P-81919-00-00 Graphic, Regulator |
63P-81919-00-00 |
from US $3.26 |
||
