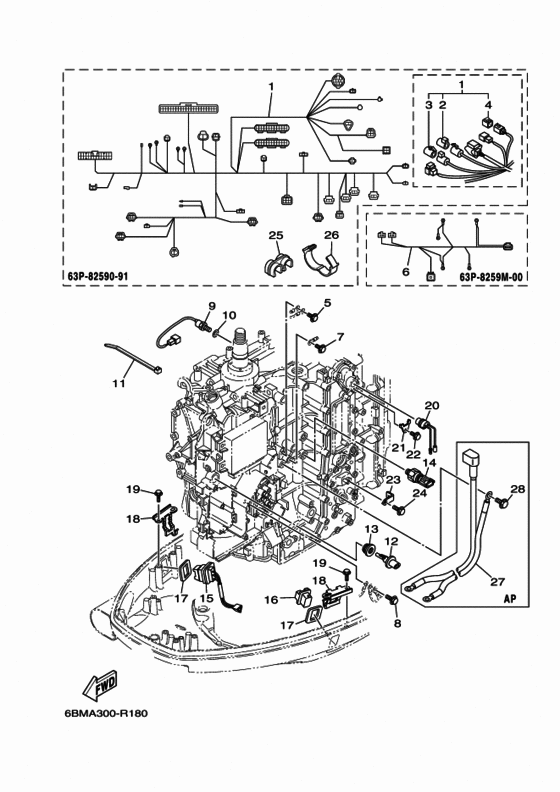

Electrical 3 Diagram Yamaha F150 ETL/X
- Year
- 2017
- Model
- F150F
- Model code
- 6BMA
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 150
- Sales region
- Europe (090)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63P-82590-91-00
Wire Harness Assy
|
63P-82590-91-00 |
— | ||
| replacement | |||||
|
1
|
1
63P-82590-92-00 Wire Harness Assy |
63P-82590-92-00 |
from US $693.08 |
||
|
2
|
2
6DA-82582-00-00 Cap 1 (Female) |
6DA-82582-00-00 |
from US $2.69 |
||
|
3
|
3
6DA-82582-10-00 Cap 1 (Male) |
6DA-82582-10-00 |
from US $3.97 |
||
|
4
|
4
6Y8-82582-11-00 Cap 1 (4Pin) |
6Y8-82582-11-00 |
from US $8.22 |
||
|
5
|
5
97595-06516-00 Bolt, With Washer |
97595-06516-00 |
US $3.05 |
||
| replacement | |||||
|
5
|
5
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
6
|
6
63P-8259M-00-00 Wire Harness Assy 2 |
63P-8259M-00-00 |
from US $193.42 |
||
|
7
|
7
97595-06516-00 Bolt, With Washer |
97595-06516-00 |
US $3.05 |
||
| replacement | |||||
|
7
|
7
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
8
|
8
975-95065-12-00
Bolt, With Washer
|
975-95065-12-00 |
— | ||
| replacements | |||||
|
8
|
8
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
8
|
8
97E95-06512-00 Bolt, Hexagon W/w De |
97E95-06512-00 |
from US $1.07 |
||
|
8
|
8
97E95-06512-00 Bolt, Hexagon W/w De |
97E95-06512-00 |
from US $1.07 |
||
|
9
|
9
61A-85790-00-00 Thermosensor Assy |
61A-85790-00-00 |
from US $107.28 |
||
| replacement | |||||
|
9
|
9
61A-85790-01-00 THERMOSENSOR ASSY |
61A-85790-01-00 |
from US $107.28 |
||
|
10
|
10
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
11
|
11
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
11
|
11
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
11
|
11
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
12
|
12
63P-85886-00-00 Sensor, Air Temperature |
63P-85886-00-00 |
from US $56.81 |
||
|
13
|
13
63P-14435-00-00 Grommet |
63P-14435-00-00 |
from US $5.53 |
||
|
14
|
14
6AW-83651-00-00 Sender, Oil Pressure |
6AW-83651-00-00 |
US $225.20 |
||
| replacement | |||||
|
14
|
14
6AW-83651-01-00 Sender, Oil Pressure |
6AW-83651-01-00 |
from US $195.22 |
||
|
15
|
15
69J-82563-01-00 Trim & Tilt Switch Assy |
69J-82563-01-00 |
from US $72.38 |
||
|
16
|
16
69J-42723-01-00 Cover, Bottom |
69J-42723-01-00 |
from US $30.46 |
||
|
17
|
17
69J-82587-00-00 Gasket |
69J-82587-00-00 |
US $5.38 |
||
|
18
|
18
63P-83614-01-00 Bracket |
63P-83614-01-00 |
from US $18.28 |
||
|
19
|
19
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
20
|
20
6P2-82560-01-00 Thermo Switch Assy |
6P2-82560-01-00 |
from US $46.32 |
||
|
21
|
21
6E9-82588-00-00 Plaque |
6E9-82588-00-00 |
from US $5.24 |
||
|
22
|
22
90109-06M80-00 Bolt |
90109-06M80-00 |
from US $2.35 |
||
|
23
|
23
63P-8366P-01-00 Bracket 4 |
63P-8366P-01-00 |
from US $4.82 |
||
|
24
|
24
975-95065-12-00
Bolt, With Washer
|
975-95065-12-00 |
— | ||
| replacements | |||||
|
24
|
24
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
24
|
24
97E95-06512-00 Bolt, Hexagon W/w De |
97E95-06512-00 |
from US $1.07 |
||
|
24
|
24
97E95-06512-00 Bolt, Hexagon W/w De |
97E95-06512-00 |
from US $1.07 |
||
|
25
|
25
90464-12224-00 Clamp |
90464-12224-00 |
from US $2.55 |
||
|
26
|
26
90464-26001-00 Clamp |
90464-26001-00 |
from US $1.70 |
||
|
27
|
27
6DA-82105-01-00 Battery CableAP |
6DA-82105-01-00 |
US $396.92 |
||
| replacement | |||||
|
27
|
27
6DA-82105-02-00 Battery CableAP |
6DA-82105-02-00 |
from US $407.15 |
||
|
28
|
28
97595-08516-00 Bolt, With WasherAP |
97595-08516-00 |
US $1.28 |
||
