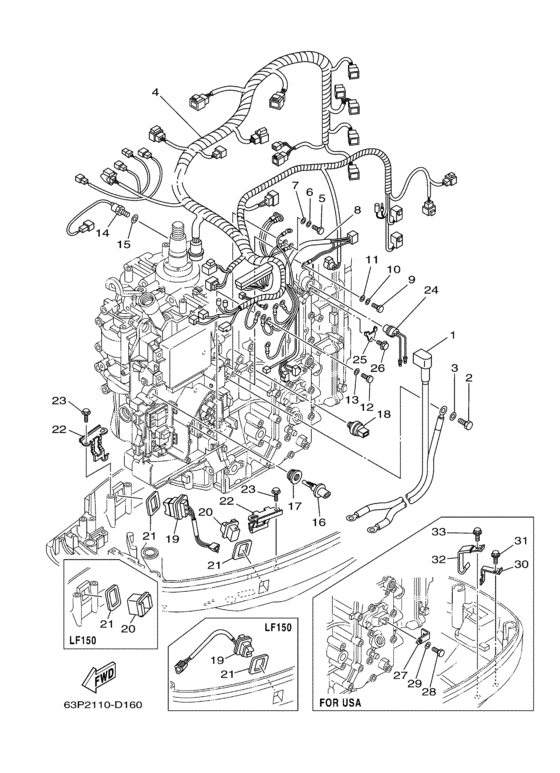

Electrical Diagram Yamaha F150 TL/XR
- Year
- 2005
- Model
- F150
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 150
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63P-82105-00-00 Battery Cable |
63P-82105-00-00 |
US $580.80 |
||
| replacement | |||||
|
1
|
1
63P-82105-01-00 Battery Cable |
63P-82105-01-00 |
from US $580.80 |
||
|
2
|
2
97095-08016-00 Bolt |
97095-08016-00 |
US $1.28 |
||
| replacements | |||||
|
2
|
2
97D95-08016-00 Bolt, Hexagon Deep Recess |
97D95-08016-00 |
from US $1.28 |
||
|
2
|
2
97D95-08016-00 Bolt, Hexagon Deep Recess |
97D95-08016-00 |
from US $1.28 |
||
|
3
|
3
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
3
|
3
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
4
|
4
63P-82590-20-00 Wire Harness Assy |
63P-82590-20-00 |
US $1,075.80 |
||
| replacement | |||||
|
4
|
4
63P-82590-22-00 WIRE HARNESS ASSY |
63P-82590-22-00 |
US $608.84 |
||
|
5
|
5
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
5
|
5
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
8
|
8
63P-8259M-00-00 Wire Harness Assy 2 |
63P-8259M-00-00 |
from US $193.42 |
||
|
9
|
9
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
9
|
9
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
12
|
12
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
12
|
12
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
13
|
13
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
14
|
14
61A-85790-00-00 Thermosensor Assy |
61A-85790-00-00 |
from US $107.28 |
||
| replacement | |||||
|
14
|
14
61A-85790-01-00 THERMOSENSOR ASSY |
61A-85790-01-00 |
from US $107.28 |
||
|
15
|
15
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
16
|
16
63P-85886-00-00 Sensor, Air Temperature |
63P-85886-00-00 |
from US $56.81 |
||
|
17
|
17
63P-14435-00-00 Grommet |
63P-14435-00-00 |
from US $5.53 |
||
|
18
|
18
69J-83651-00-00
Sender, Oil Pressure
|
69J-83651-00-00 |
— | ||
| replacements | |||||
|
18
|
18
6AW-83651-00-00 Sender, Oil Pressure |
6AW-83651-00-00 |
US $225.20 |
||
|
18
|
18
6AW-83651-01-00 Sender, Oil Pressure |
6AW-83651-01-00 |
from US $195.22 |
||
|
19
|
19
69J-82563-00-00
Trim & Tilt Switch Assy
|
69J-82563-00-00 |
— | ||
| replacement | |||||
|
19
|
19
69J-82563-01-00 Trim & Tilt Switch Assy |
69J-82563-01-00 |
from US $72.38 |
||
|
20
|
20
69J-42723-00-8D
Cover, Bottom
|
69J-42723-00-8D |
— | ||
| replacement | |||||
|
20
|
20
69J-42723-01-00 Cover, Bottom |
69J-42723-01-00 |
from US $30.46 |
||
|
21
|
21
69J-82587-00-00 Gasket |
69J-82587-00-00 |
US $5.38 |
||
|
22
|
22
63P-83614-00-00 Bracket |
63P-83614-00-00 |
US $18.28 |
||
| replacement | |||||
|
22
|
22
63P-83614-01-00 Bracket |
63P-83614-01-00 |
from US $18.28 |
||
|
23
|
23
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
24
|
24
69J-82560-00-00
Thermo Switch Assy
|
69J-82560-00-00 |
— | ||
| replacement | |||||
|
24
|
24
6P2-82560-01-00 Thermo Switch Assy |
6P2-82560-01-00 |
from US $46.32 |
||
|
25
|
25
6E9-82588-00-00 Plaque |
6E9-82588-00-00 |
from US $5.24 |
||
|
26
|
26
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
27
|
27
63P-8366P-00-00 Bracket 4 |
63P-8366P-00-00 |
US $4.82 |
||
|
28
|
28
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
28
|
28
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
29
|
29
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
29
|
29
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
30
|
30
69J-8366G-00-00 Bracket 3 |
69J-8366G-00-00 |
US $5.95 |
||
| replacements | |||||
|
30
|
30
69J-8366G-02-00 Bracket 3 |
69J-8366G-02-00 |
from US $5.95 |
||
|
30
|
30
69J-8366G-01-00 Bracket 3 |
69J-8366G-01-00 |
US $5.95 |
||
|
31
|
31
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
32
|
32
904-62080-25-00
Clamp
|
904-62080-25-00 |
— | ||
|
33
|
33
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
