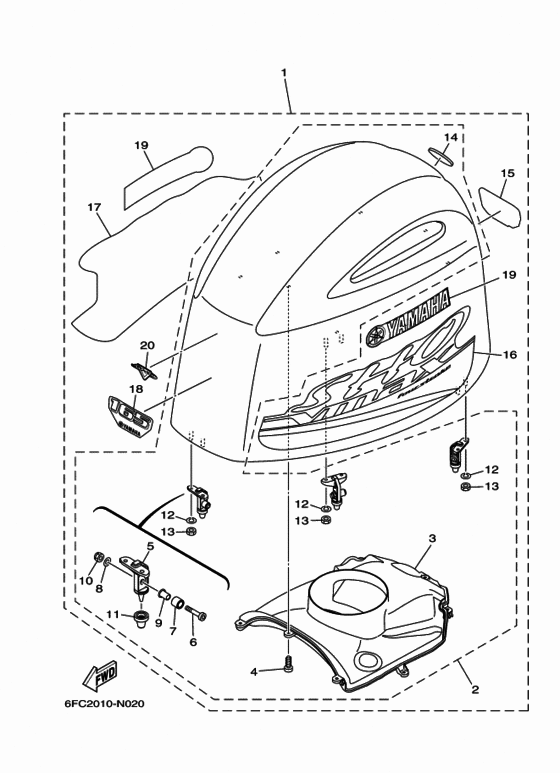

トツプカウリング Diagram Yamaha F165 ETL
- Year
- 2014
- Model
- F165A, (V-Max)
- Model code
- 6FC2
- Year
- 2014
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 165
- Sales region
- Japan (020)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6FC-42610-01-00 Top Cowling Assy |
6FC-42610-01-00 |
US $1,676.40 |
||
|
2
|
2
6EH-4261A-00-00 Top Cowling W/o Graphics |
6EH-4261A-00-00 |
from US $1,452 |
||
|
3
|
3
6DA-42613-00-00 Molding, Air Duct |
6DA-42613-00-00 |
US $85.80 |
||
|
4
|
4
901-67050-17-00 Screw, Tapping |
901-67050-17-00 |
from US $1.42 |
||
|
5
|
5
6CB-42647-00-00
Holder, Clamp Band
|
6CB-42647-00-00 |
— | ||
| replacement | |||||
|
5
|
5
6CB-42647-A0-00 Holder, Clamp Band |
6CB-42647-A0-00 |
from US $37.76 |
||
|
6
|
6
901-11080-78-00 Bolt,hex Socket Button |
901-11080-78-00 |
from US $4.39 |
||
|
7
|
7
903-87100-94-00 Collar |
903-87100-94-00 |
from US $2.77 |
||
|
8
|
8
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
9
|
9
90387-08M45-00 Collar |
90387-08M45-00 |
from US $4.43 |
||
|
10
|
10
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
11
|
11
6AW-42663-00-00 Damper |
6AW-42663-00-00 |
US $2.98 |
||
|
12
|
12
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
14
|
14
6DA-42697-00-00 Tuning Fork Mark |
6DA-42697-00-00 |
from US $35.03 |
||
|
15
|
15
6FC-42678-00-00 Graphic, Rear |
6FC-42678-00-00 |
US $16.29 |
||
|
16
|
16
6CB-42675-10-00 Graphic, Side 1 |
6CB-42675-10-00 |
from US $134.71 |
||
|
17
|
17
6CB-42676-10-00 Graphic, Side 2 |
6CB-42676-10-00 |
from US $134.71 |
||
|
18
|
18
6FC-42677-00-00 Graphic, Front |
6FC-42677-00-00 |
US $15.30 |
||
|
19
|
19
6D6-42681-00-00 Mark, Cowling |
6D6-42681-00-00 |
from US $27.74 |
||
|
20
|
20
6EH-42682-00-00 Mark, Cowling |
6EH-42682-00-00 |
from US $18.99 |
||
