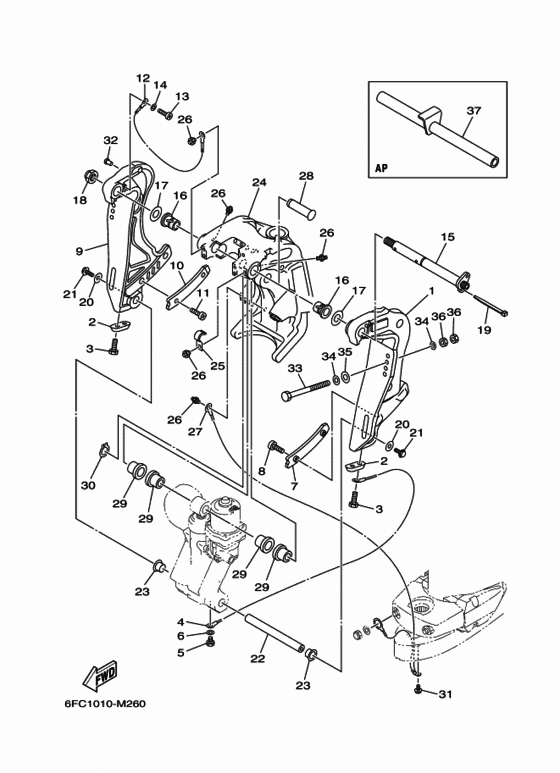

ブラケツト 1 Diagram Yamaha F165 ETL
- Year
- 2014
- Model
- F165A, (V-Max)
- Model code
- 6FC2
- Year
- 2014
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 165
- Sales region
- Japan (020)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6CB-43111-02-8D Bracket, Clamp 1 |
6CB-43111-02-8D |
US $368.28 |
||
| replacement | |||||
|
1
|
1
6CB-43111-10-8D Bracket, Clamp 1 |
6CB-43111-10-8D |
from US $368.28 |
||
|
2
|
2
65W-45251-00-00 Anode |
65W-45251-00-00 |
from US $12.35 |
||
|
3
|
3
90101-06020-00 Bolt |
90101-06020-00 |
from US $1.56 |
||
| replacement | |||||
|
3
|
3
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
4
|
4
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $6.06 |
||
|
5
|
5
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
5
|
5
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
6
|
6
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
7
|
7
61A-43132-00-00 Washer, Friction |
61A-43132-00-00 |
US $41.59 |
||
|
8
|
8
97885-06010-00 Screw, Pan Head |
97885-06010-00 |
US $1.98 |
||
| replacements | |||||
|
8
|
8
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
8
|
8
97985-06210-00 Screw Pan Head W/w (6R3) |
97985-06210-00 |
from US $1.98 |
||
|
9
|
9
6CB-43112-01-8D Bracket, Clamp 2 |
6CB-43112-01-8D |
US $368.28 |
||
| replacement | |||||
|
9
|
9
6CB-43112-10-8D Bracket, Clamp 2 |
6CB-43112-10-8D |
from US $368.28 |
||
|
10
|
10
61A-43133-00-00 Washer,friction |
61A-43133-00-00 |
US $41.59 |
||
|
11
|
11
97885-06010-00 Screw, Pan Head |
97885-06010-00 |
US $1.98 |
||
| replacements | |||||
|
11
|
11
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
11
|
11
97985-06210-00 Screw Pan Head W/w (6R3) |
97985-06210-00 |
from US $1.98 |
||
|
12
|
12
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $6.06 |
||
|
13
|
13
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
14
|
14
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
15
|
15
64E-43131-30-00 Bolt, Clamp Bracket |
64E-43131-30-00 |
from US $105.14 |
||
|
16
|
16
90386-25M31-00 Bush |
90386-25M31-00 |
from US $4.04 |
||
|
17
|
17
90201-26M59-00 Washer, Plate |
90201-26M59-00 |
from US $3.04 |
||
|
18
|
18
90185-22M11-00 Nut, Self-Locking |
90185-22M11-00 |
US $33.44 |
||
| replacement | |||||
|
18
|
18
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $29.77 |
||
|
19
|
19
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
19
|
19
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
19
|
19
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
20
|
20
90201-10060-00 Washer, Plate |
90201-10060-00 |
from US $17.57 |
||
|
21
|
21
97575-10530-00 Bolt, With Washer |
97575-10530-00 |
from US $6.52 |
||
|
22
|
22
6BC-43818-00-00 Pin, Lower Shock Mount |
6BC-43818-00-00 |
from US $103.07 |
||
|
23
|
23
90386-22M98-00 Bush |
90386-22M98-00 |
from US $3.89 |
||
|
24
|
24
64E-43311-10-8D Bracket, Swivel 1 |
64E-43311-10-8D |
from US $695.64 |
||
|
25
|
25
90465-08M63-00 Clamp |
90465-08M63-00 |
from US $6.52 |
||
|
26
|
26
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
27
|
27
66K-82149-00-00 Wire, Lead 3 |
66K-82149-00-00 |
from US $25.36 |
||
|
28
|
28
64E-43126-00-00 Pin, Upper Shock Mount |
64E-43126-00-00 |
from US $42.14 |
||
|
29
|
29
90386-22M98-00 Bush |
90386-22M98-00 |
from US $3.89 |
||
|
30
|
30
93410-22M11-00 Circlip |
93410-22M11-00 |
from US $3.68 |
||
|
31
|
31
95895-06010-00 Bolt, Flange |
95895-06010-00 |
US $2.13 |
||
| replacement | |||||
|
31
|
31
95880-06010-00 Bolt, Flange |
95880-06010-00 |
from US $1.56 |
||
|
32
|
32
90269-02M08-00 Rivet |
90269-02M08-00 |
from US $1.98 |
||
|
33
|
33
90101-12M05-00 Bolt (L:130Mm) |
90101-12M05-00 |
US $18.42 |
||
| replacement | |||||
|
33
|
33
90101-12065-00 Bolt |
90101-12065-00 |
from US $18.59 |
||
|
34
|
34
90201-13M01-00 Washer, Plate |
90201-13M01-00 |
from US $3.24 |
||
|
35
|
35
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
36
|
36
95380-12600-00 Nut |
95380-12600-00 |
from US $5.40 |
||
|
37
|
37
6CB-43611-00-00 Shaft, Tilt LockAP |
6CB-43611-00-00 |
from US $344.25 |
||
