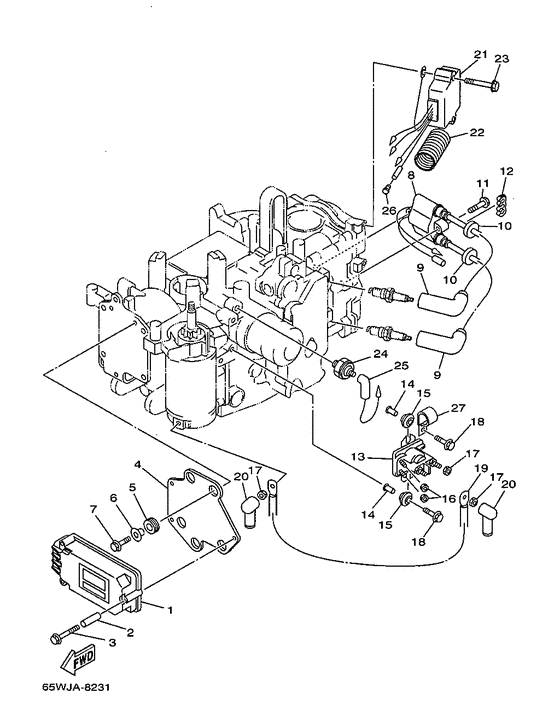

Electrical 1 Diagram Yamaha F20 M(E/T/H)S/L
- Year
- 1999
- Model
- F20A
- Model code
- 65W
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
65W-85540-10-00 C.d.i. Unit Assembly |
65W-85540-10-00 |
US $670.56 |
||
| replacement | |||||
|
01
|
01
65W-85540-20-00 C.d.i. Unit Assy |
65W-85540-20-00 |
from US $661.46 |
||
|
02
|
02
65W-86129-00-00 Collar |
65W-86129-00-00 |
from US $7.37 |
||
|
03
|
03
65W-8252V-00-00 Screw, Special |
65W-8252V-00-00 |
from US $5.53 |
||
|
04
|
04
65W-85542-00-00 Bracket |
65W-85542-00-00 |
from US $64.13 |
||
|
05
|
05
65W-85547-00-00 Damper |
65W-85547-00-00 |
from US $5.53 |
||
|
06
|
06
65W-86129-10-00 Collar |
65W-86129-10-00 |
from US $6.62 |
||
|
07
|
07
65W-8252V-10-00 Screw, Special |
65W-8252V-10-00 |
from US $5.53 |
||
|
08
|
08
65W-85570-00-00 Ignition Coil Assy |
65W-85570-00-00 |
US $140.92 |
||
| replacement | |||||
|
08
|
08
65W-85570-01-00 Ignition Coil Assy |
65W-85570-01-00 |
from US $140.92 |
||
|
09
|
09
6G8-82370-00-00 Plug Cap Assy |
6G8-82370-00-00 |
US $27.91 |
||
|
10
|
10
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
11
|
11
97595-06530-00 Bolt, With Washer |
97595-06530-00 |
US $0.79 |
||
| replacement | |||||
|
11
|
11
97E95-06530-00 Bolt, Hexagon W/w De |
97E95-06530-00 |
from US $0.79 |
||
|
12
|
12
90464-07M05-00 Clamp |
90464-07M05-00 |
from US $5.09 |
||
|
13
|
13
65W-81941-00-00 Starter Relay Assy |
65W-81941-00-00 |
from US $59.82 |
||
|
14
|
14
65W-8191C-00-00 Collar |
65W-8191C-00-00 |
from US $5.53 |
||
|
15
|
15
65W-81922-00-00 Grommet |
65W-81922-00-00 |
from US $10.94 |
||
|
16
|
16
65W-8182A-00-00 Nut |
65W-8182A-00-00 |
from US $2.83 |
||
|
17
|
17
65W-8182B-00-00 Nut, Special |
65W-8182B-00-00 |
from US $3.54 |
||
|
18
|
18
97595-06525-00 BoltUr |
97595-06525-00 |
US $1.21 |
||
| replacements | |||||
|
18
|
18
90101-06M27-00 BoltUr |
90101-06M27-00 |
from US $1.52 |
||
|
18
|
18
97E95-06525-00 Bolt, Hexagon W/w Deep RecessUr |
97E95-06525-00 |
from US $1.18 |
||
|
19
|
19
65W-82117-00-00 Wire, Lead |
65W-82117-00-00 |
from US $21.98 |
||
|
20
|
20
6G5-82119-10-00 Cover, Lead Wire |
6G5-82119-10-00 |
from US $5.53 |
||
|
21
|
21
65W-81960-00-00
Rectifier & Regulator Assy
|
65W-81960-00-00 |
— | ||
| replacement | |||||
|
21
|
21
65W-81960-10-00 Rectifier & Regulator Assy |
65W-81960-10-00 |
from US $357.37 |
||
|
22
|
22
6K3-83557-00-00
Tube
|
6K3-83557-00-00 |
— | ||
| replacement | |||||
|
22
|
22
6G1-83557-00-00 Tube |
6G1-83557-00-00 |
from US $4.11 |
||
|
23
|
23
97595-06540-00 Bolt, With Washer |
97595-06540-00 |
from US $1.07 |
||
|
24
|
24
65W-82504-00-00 Oil Pressure Switch Assy |
65W-82504-00-00 |
from US $49.88 |
||
|
25
|
25
65W-82127-00-00 Wire, Lead 2 |
65W-82127-00-00 |
from US $17.93 |
||
|
27
|
27
65W-8339X-00-00 Clamp, Cord |
65W-8339X-00-00 |
from US $2.83 |
||
