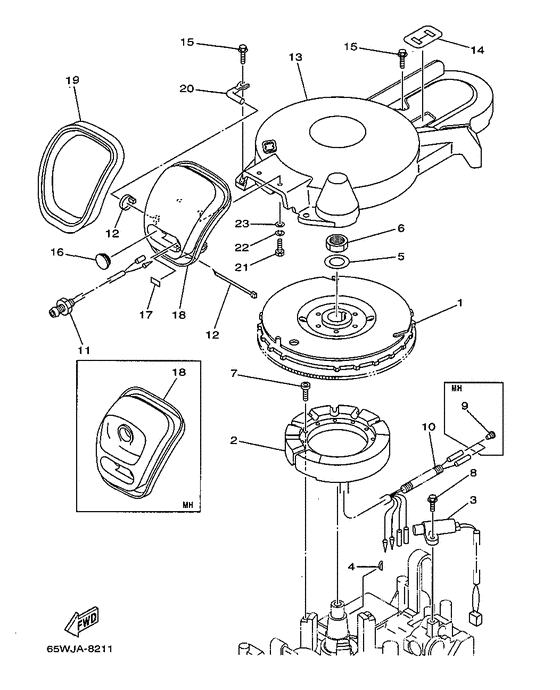

Generator Diagram Yamaha F20 M(E/T/H)S/L
- Year
- 1999
- Model
- F20A
- Model code
- 65W
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
65W-85550-00-00 Rotor AssemblyUr |
65W-85550-00-00 |
US $557.04 |
||
| replacement | |||||
|
01
|
01
65W-85550-01-00 Rotor AssyUr |
65W-85550-01-00 |
from US $557.04 |
||
|
02
|
02
65W-85510-10-00 Stator AssyUr 6a |
65W-85510-10-00 |
from US $349.81 |
||
|
03
|
03
65W-85580-00-00 Coil, Pulser |
65W-85580-00-00 |
from US $146.81 |
||
|
04
|
04
65W-11545-00-00 Key, Woodruff |
65W-11545-00-00 |
from US $4.82 |
||
|
05
|
05
90201-21M18-00 Washer, Plate |
90201-21M18-00 |
from US $7.08 |
||
|
06
|
06
90170-20137-00 Nut |
90170-20137-00 |
from US $9.44 |
||
|
07
|
07
91380-05030-00 BoltUr 15a |
91380-05030-00 |
from US $2.13 |
||
|
08
|
08
97595-05516-00 Bolt, With Washer |
97595-05516-00 |
from US $1.42 |
||
|
10
|
10
90446-10M82-00 Hose |
90446-10M82-00 |
US $3.68 |
||
| replacement | |||||
|
10
|
10
90446-10M86-00 Hose (L140) |
90446-10M86-00 |
from US $3.68 |
||
|
11
|
11
65W-85410-01-00 Emergency Signal Light Assy |
65W-85410-01-00 |
from US $47.79 |
||
|
12
|
12
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
12
|
12
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
12
|
12
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
13
|
13
65W-81337-00-00
Cover, Flywheel
|
65W-81337-00-00 |
— | ||
|
14
|
14
65W-81639-00-00 Cover |
65W-81639-00-00 |
from US $6.02 |
||
|
15
|
15
97595-06525-00 Bolt |
97595-06525-00 |
US $1.21 |
||
| replacements | |||||
|
15
|
15
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
15
|
15
97E95-06525-00 Bolt, Hexagon W/w Deep Recess |
97E95-06525-00 |
from US $1.18 |
||
|
16
|
16
6G1-42725-00-00 Passe-Fil |
6G1-42725-00-00 |
US $5.24 |
||
|
17
|
17
65W-84342-00-00 Seat, Emblem |
65W-84342-00-00 |
from US $5.24 |
||
|
18
|
18
65W-15758-10-00
Guide, Rope
|
65W-15758-10-00 |
— | ||
|
19
|
19
65W-15762-00-00 Seal, Rubber 2 |
65W-15762-00-00 |
from US $34.85 |
||
|
20
|
20
65W-15771-00-00 Stay 1 |
65W-15771-00-00 |
from US $11.32 |
||
|
21
|
21
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
21
|
21
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
23
|
23
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
