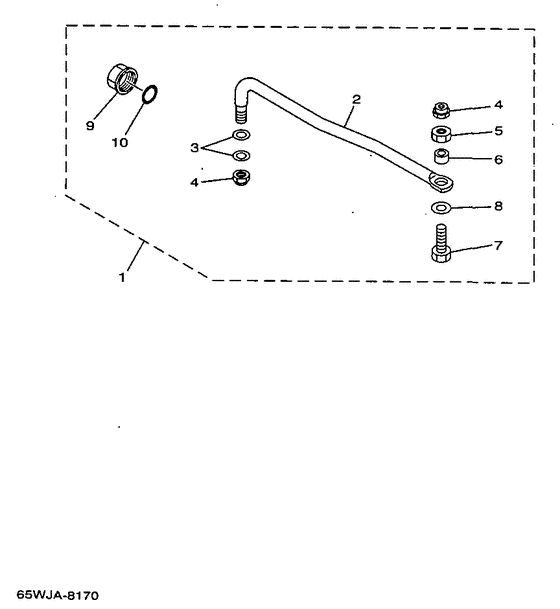

Steering guide attachment Diagram Yamaha F20 M(E/T/H)S/L
- Year
- 1999
- Model
- F20A
- Model code
- 65W
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
65W-61350-00-00 Steering Guide Attachment Kit |
65W-61350-00-00 |
from US $93.88 |
||
|
02
|
02
65W-61351-00-00 Rod, Steering Link |
65W-61351-00-00 |
from US $76.26 |
||
|
03
|
03
90201-10M20-00 Washer, Plate |
90201-10M20-00 |
from US $2.13 |
||
|
04
|
04
90185-09M01-00 Nut, Self-Locking |
90185-09M01-00 |
from US $5.74 |
||
|
05
|
05
90170-09M03-00 Nut |
90170-09M03-00 |
from US $11.48 |
||
|
06
|
06
90387-10M42-00 Collar |
90387-10M42-00 |
from US $3.54 |
||
|
07
|
07
90101-09M01-00 Bolt |
90101-09M01-00 |
from US $7.51 |
||
|
08
|
08
902-0110M-63-00
Washer, Plate
|
902-0110M-63-00 |
— | ||
| replacement | |||||
|
08
|
08
902-01100-81-00 WASHER PLATE |
902-01100-81-00 |
from US $2.69 |
||
|
09
|
09
6E5-43145-01-00 Cap, Clamp Bracket |
6E5-43145-01-00 |
from US $8.70 |
||
|
10
|
10
93210-16275-00 O-Ring |
93210-16275-00 |
from US $1.63 |
||
