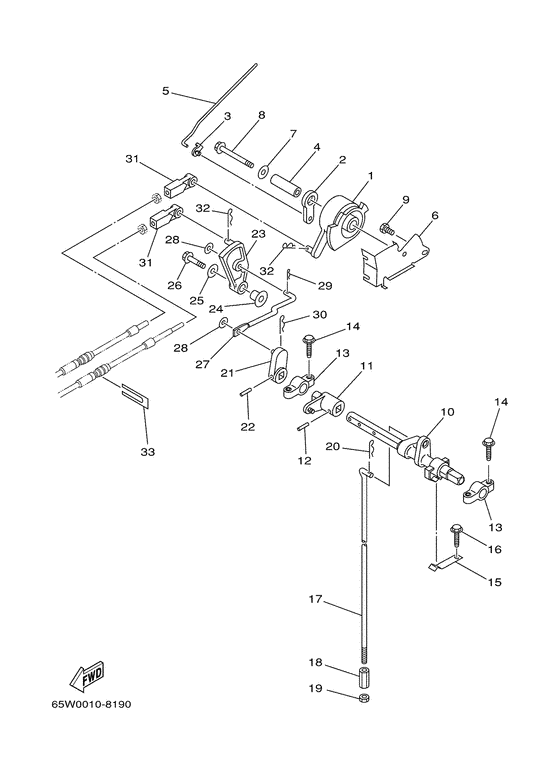

Control Diagram Yamaha F20 M(E/T/H)S/L
- Year
- 2000
- Model
- F20A
- Model code
- 65W
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- Europe (General) (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
65W-41638-00-00 Pulley |
65W-41638-00-00 |
from US $16.81 |
||
|
02
|
02
65W-41283-00-00 Lever, Free Accel |
65W-41283-00-00 |
from US $2.58 |
||
|
03
|
03
661-41262-02-00 Joint, Choke Lever |
661-41262-02-00 |
from US $7.93 |
||
|
04
|
04
90387-06M08-00 Collar |
90387-06M08-00 |
US $8.08 |
||
| replacement | |||||
|
04
|
04
90387-06064-00
Collar
|
90387-06064-00 |
— | ||
|
05
|
05
65W-41211-00-00
Link, Accel
|
65W-41211-00-00 |
— | ||
|
06
|
06
65W-14497-01-00
Stay, Throttle Wire
|
65W-14497-01-00 |
— | ||
|
07
|
07
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.81 |
||
|
08
|
08
97595-06555-00 Bolt, With Washer |
97595-06555-00 |
from US $4.11 |
||
| replacement | |||||
|
08
|
08
97E95-06555-00 Bolt, Hexagon W/w Deep Recess |
97E95-06555-00 |
from US $1.21 |
||
|
09
|
09
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
09
|
09
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
10
|
10
65W-44121-00-00 Lever, Shift Rod |
65W-44121-00-00 |
from US $64.60 |
||
|
11
|
11
65W-44122-00-00 Bushing, Shift Rod Lever |
65W-44122-00-00 |
US $4.41 |
||
|
12
|
12
90254-03M05-00 Pin, Spring |
90254-03M05-00 |
from US $2.55 |
||
|
13
|
13
6F5-41662-00-00 Bracket 2 |
6F5-41662-00-00 |
from US $17.86 |
||
|
14
|
14
901-0906M-81-00 Bolt |
901-0906M-81-00 |
from US $2.52 |
||
|
15
|
15
65W-44116-00-00 Spring |
65W-44116-00-00 |
from US $4.39 |
||
|
16
|
16
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
17
|
17
65W-44143-00-00 Rod, ShiftS |
65W-44143-00-00 |
from US $41.03 |
||
|
17
|
17
65W-44143-10-00 Rod, ShiftL |
65W-44143-10-00 |
from US $41.03 |
||
|
18
|
18
90170-06015-00 Nut |
90170-06015-00 |
US $9.78 |
||
| replacement | |||||
|
18
|
18
61N-44146-00-00 Connector, Shift Rod 2 |
61N-44146-00-00 |
from US $9.78 |
||
|
19
|
19
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
19
|
19
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
20
|
20
90468-18008-00 Clip |
90468-18008-00 |
from US $1.81 |
||
