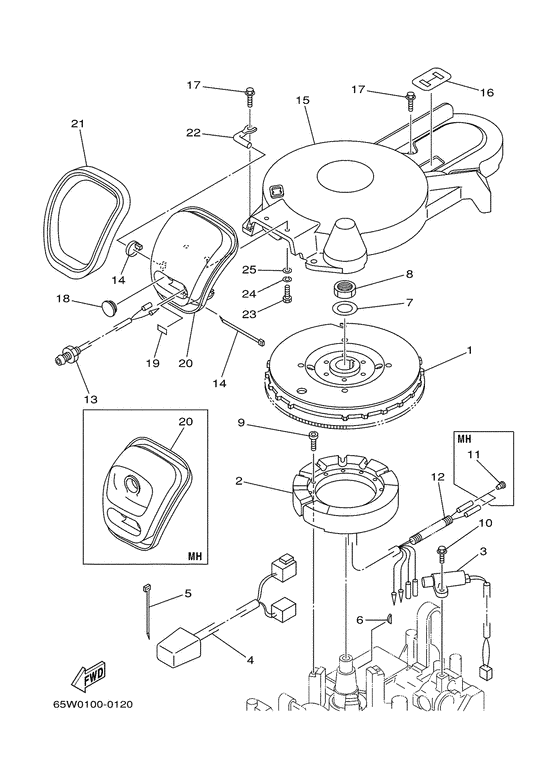

Generator Diagram Yamaha F20 M(E/T/H)S/L
- Year
- 2000
- Model
- F20A
- Model code
- 65W
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- Europe (General) (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03
|
03
65W-85580-00-00 Coil, Pulser |
65W-85580-00-00 |
from US $146.81 |
||
|
04
|
04
67C-85370-00-00 Resistor Assy |
67C-85370-00-00 |
US $100.82 |
||
|
05
|
05
90465-13M18-00 Clamp |
90465-13M18-00 |
from US $1.35 |
||
| replacements | |||||
|
05
|
05
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
05
|
05
90465-13M30-00 Clamp |
90465-13M30-00 |
from US $1.90 |
||
|
06
|
06
65W-11545-00-00 Key, Woodruff |
65W-11545-00-00 |
from US $4.82 |
||
|
07
|
07
90201-21M18-00 Washer, Plate |
90201-21M18-00 |
from US $7.08 |
||
|
08
|
08
90170-20137-00 Nut |
90170-20137-00 |
from US $9.44 |
||
|
10
|
10
97595-05516-00 Bolt, With Washer |
97595-05516-00 |
from US $1.42 |
||
|
12
|
12
90446-10M82-00 Hose |
90446-10M82-00 |
US $3.68 |
||
| replacement | |||||
|
12
|
12
90446-10M86-00 Hose (L140) |
90446-10M86-00 |
from US $3.68 |
||
|
13
|
13
65W-85410-01-00 Emergency Signal Light Assy |
65W-85410-01-00 |
from US $47.79 |
||
|
14
|
14
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
14
|
14
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
14
|
14
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
19
|
19
65W-84342-00-00 Seat, Emblem |
65W-84342-00-00 |
from US $5.24 |
||
|
21
|
21
65W-15762-00-00 Seal, Rubber 2 |
65W-15762-00-00 |
from US $34.85 |
||
|
22
|
22
65W-15771-00-00 Stay 1 |
65W-15771-00-00 |
from US $11.32 |
||
|
23
|
23
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
23
|
23
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
25
|
25
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
25
|
25
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
