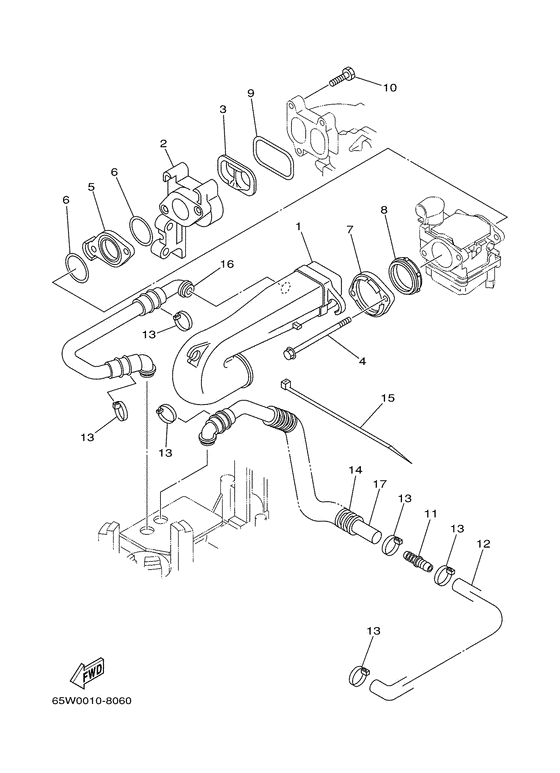

Intake Diagram Yamaha F20 M(E/T/H)S/L
- Year
- 2000
- Model
- F20A
- Model code
- 65W
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- Europe (General) (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
65W-14440-00-00 Silencer Assy, Intake |
65W-14440-00-00 |
from US $232.11 |
||
|
02
|
02
65W-13640-00-00 Manifold |
65W-13640-00-00 |
from US $126.97 |
||
|
03
|
03
65W-13323-00-00 Insert |
65W-13323-00-00 |
from US $8.93 |
||
|
04
|
04
65W-14496-00-00 Bolt |
65W-14496-00-00 |
from US $3.68 |
||
|
05
|
05
65W-14271-00-00 Insulator |
65W-14271-00-00 |
from US $24.23 |
||
|
06
|
06
65W-14198-00-00 Gasket |
65W-14198-00-00 |
from US $2.69 |
||
|
07
|
07
65W-14262-00-00 Flange |
65W-14262-00-00 |
from US $25.36 |
||
|
08
|
08
65W-14457-10-00 Seal |
65W-14457-10-00 |
from US $15.44 |
||
|
09
|
09
65W-13645-00-00 Gasket, Manifold 1 |
65W-13645-00-00 |
from US $3.26 |
||
|
10
|
10
97595-06525-00 Bolt |
97595-06525-00 |
US $1.21 |
||
| replacements | |||||
|
10
|
10
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
10
|
10
97E95-06525-00 Bolt, Hexagon W/w Deep Recess |
97E95-06525-00 |
from US $1.18 |
||
|
11
|
11
65W-24377-00-00 Pipe, Joint 3 |
65W-24377-00-00 |
from US $10.48 |
||
|
12
|
12
65W-15397-10-00 Hose |
65W-15397-10-00 |
from US $21.98 |
||
|
13
|
13
90465-13M36-00 Clamp |
90465-13M36-00 |
US $1.98 |
||
| replacement | |||||
|
13
|
13
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
14
|
14
90446-24M54-00 Hose Protector |
90446-24M54-00 |
from US $9.28 |
||
| replacement | |||||
|
14
|
14
90446-24M83-00 Hose Protector |
90446-24M83-00 |
from US $7.99 |
||
|
15
|
15
90465-11M52-00 Clamp |
90465-11M52-00 |
from US $1.70 |
||
|
16
|
16
65W-15370-00-00 Breather Assy |
65W-15370-00-00 |
from US $46.97 |
||
|
17
|
17
65W-15370-10-00 Breather Assy |
65W-15370-10-00 |
from US $46.97 |
||
