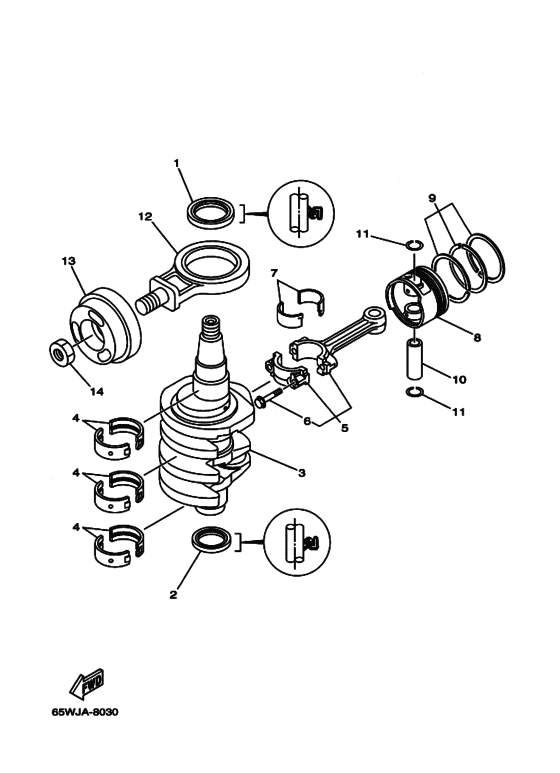

Crankshaft & Piston Diagram Yamaha F20 M(E/T/H)S/L
- Year
- 1998
- Model
- F20A
- Model code
- 65W
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- Europe (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
931-0243M-42-00 Oil Seal |
931-0243M-42-00 |
from US $11.66 |
||
|
2
|
2
931-0235M-47-00 Oil Seal |
931-0235M-47-00 |
from US $15.50 |
||
|
3
|
3
65W-11411-00-00 Crankshaft |
65W-11411-00-00 |
US $1,243.44 |
||
| replacement | |||||
|
3
|
3
65W-11411-01-00 Crankshaft |
65W-11411-01-00 |
from US $1,095.43 |
||
|
4
|
4
62Y-11416-00-00 Plane Bearing, Crankshaft 1 (Ur Brown)UR BROWN |
62Y-11416-00-00 |
from US $11.34 |
||
|
4
|
4
62Y-11416-10-00 Plane Bearing, Crankshaft 1 (Ur Black)UR BLACK |
62Y-11416-10-00 |
US $22.06 |
||
|
4
|
4
62Y-11416-20-00 Plane Bearing, Crankshaft 1 (Ur Blue)UR BLUE |
62Y-11416-20-00 |
from US $11.34 |
||
|
5
|
5
62Y-11650-00-00 Connecting Rod Assembly |
62Y-11650-00-00 |
US $117.02 |
||
| replacement | |||||
|
5
|
5
6C5-11650-10-00 Connecting Rod Assy |
6C5-11650-10-00 |
from US $129.63 |
||
|
6
|
6
62Y-11654-00-00 Bolt, Connecting Rod |
62Y-11654-00-00 |
US $6.66 |
||
| replacement | |||||
|
6
|
6
6C5-11654-00-00 Bolt, Connecting Rod |
6C5-11654-00-00 |
from US $7.51 |
||
|
7
|
7
62Y-11656-00-00 Plane Bearing, Connecting Rod (UR Brown)UR BROWN |
62Y-11656-00-00 |
US $23.58 |
||
|
7
|
7
62Y-11656-10-00 Plane Bearing, Connecting Rod (UR Black)UR BLACK |
62Y-11656-10-00 |
US $23.58 |
||
|
7
|
7
62Y-11656-20-00 Plane Bearing, Connecting Rod (UR Blue)UR BLUE |
62Y-11656-20-00 |
US $23.58 |
||
|
8
|
8
65W-11631-00-96 Piston (Std) |
65W-11631-00-96 |
from US $81.95 |
||
|
8
|
8
65W-11635-00-00 Piston (0.25Mm O/s)0.25MM O/S; AP |
65W-11635-00-00 |
from US $70.70 |
||
|
8
|
8
65W-11636-00-00 Piston (0.50Mm O/s)0.50MM O/S; AP |
65W-11636-00-00 |
from US $81.95 |
||
|
9
|
9
65W-11603-00-00
Piston Ring Set (Std)
|
65W-11603-00-00 |
— | ||
|
9
|
9
65W-11604-00-00
Piston Ring Set (0.25Mm O/s)
0.25MM O/S; AP |
65W-11604-00-00 |
— | ||
|
9
|
9
65W-11605-00-00
Piston Ring Set (0.50Mm O/s)
0.50MM O/S; AP |
65W-11605-00-00 |
— | ||
|
10
|
10
62Y-11633-00-00 Pin, Piston |
62Y-11633-00-00 |
from US $13.14 |
||
|
11
|
11
934-50171-29-00 Circlip |
934-50171-29-00 |
from US $1.39 |
||
|
12
|
12
65W-11665-00-00 Con-Rod Assy, Balance |
65W-11665-00-00 |
from US $268.52 |
||
|
13
|
13
65W-11642-11-00
Piston, Balance
|
65W-11642-11-00 |
— | ||
|
14
|
14
90170-20137-00 Nut |
90170-20137-00 |
from US $9.44 |
||
