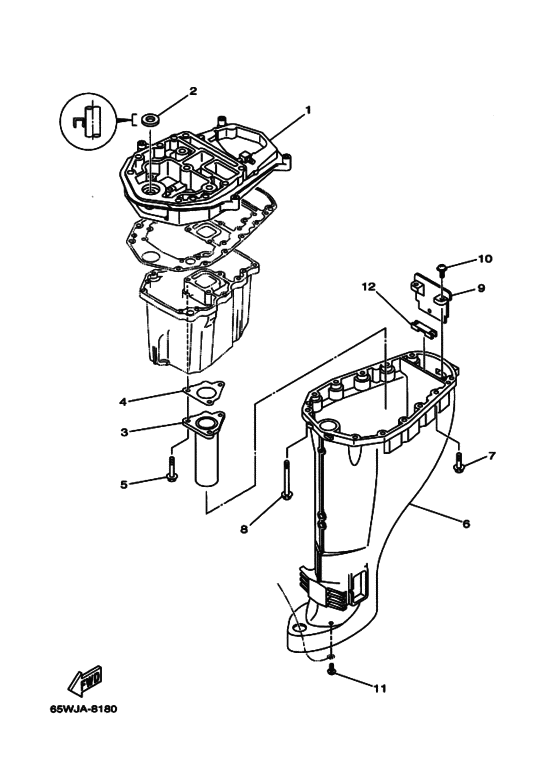

Upper casing Diagram Yamaha F20 M(E/T/H)S/L
- Year
- 1998
- Model
- F20A
- Model code
- 65W
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- Europe (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65W-41137-00-94
Guide, Exhaust
|
65W-41137-00-94 |
— | ||
| replacements | |||||
|
1
|
1
65W-41137-09-94 Guide, Exhaust |
65W-41137-09-94 |
from US $416.02 |
||
|
1
|
1
65W-41137-08-CA Guide, Exhaust |
65W-41137-08-CA |
from US $341.52 |
||
|
2
|
2
931-0416M-01-00
Oil Seal
|
931-0416M-01-00 |
— | ||
| replacement | |||||
|
2
|
2
931-0116M-36-00 Oil Seal |
931-0116M-36-00 |
from US $5.06 |
||
|
3
|
3
65W-41131-00-94
Manifold, Ext. 1
|
65W-41131-00-94 |
— | ||
|
4
|
4
62Y-41133-00-00 Gasket, Exhaust Manifold 1 |
62Y-41133-00-00 |
from US $9.78 |
||
|
5
|
5
97575-06545-00 Bolt, With Washer |
97575-06545-00 |
from US $3.04 |
||
| replacement | |||||
|
5
|
5
970-80060-45-00 Bolt |
970-80060-45-00 |
from US $4.56 |
||
|
6
|
6
65W-45111-00-4D Casing, UpperUR S |
65W-45111-00-4D |
US $488.49 |
||
| replacement | |||||
|
6
|
6
6D5-45111-A0-4D Casing, UpperUR S |
6D5-45111-A0-4D |
US $482.89 |
||
|
6
|
6
65W-45111-10-4D Casing, UpperUR L |
65W-45111-10-4D |
US $640.20 |
||
| replacement | |||||
|
6
|
6
6D5-45111-10-8D Casing, UpperUR L |
6D5-45111-10-8D |
from US $409.80 |
||
|
7
|
7
90119-08M79-00 Bolt, With Washer |
90119-08M79-00 |
US $3.97 |
||
| replacement | |||||
|
7
|
7
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
8
|
8
90119-08M82-00 Bolt, With Washer |
90119-08M82-00 |
from US $7.23 |
||
|
9
|
9
65W-45151-00-00 Cover, Upper Casing |
65W-45151-00-00 |
from US $8.36 |
||
|
10
|
10
97980-05216-00 Screw, With Washer |
97980-05216-00 |
from US $3.12 |
||
|
11
|
11
90157-06M06-00 Screw, Pan Head |
90157-06M06-00 |
from US $1.98 |
||
|
12
|
12
65W-45128-00-00 Seal 2 |
65W-45128-00-00 |
from US $5.95 |
||
