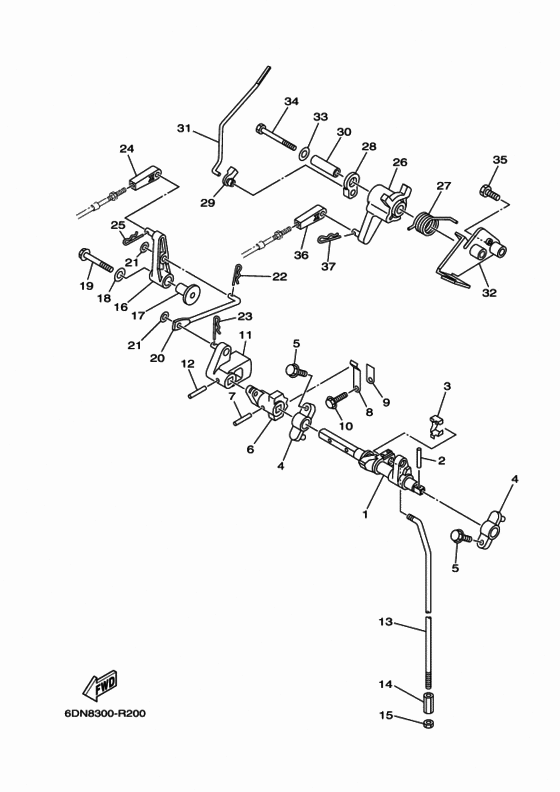

Control Diagram Yamaha F20 ETL
- Year
- 2017
- Model
- F20D
- Model code
- 6DN8
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- Europe (020)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6BL-44121-01-00 Lever, Shift Rod |
6BL-44121-01-00 |
from US $46.67 |
||
|
2
|
2
90254-03M05-00 Pin, Spring |
90254-03M05-00 |
from US $2.55 |
||
|
3
|
3
6AH-26364-00-00 End, Cable 2 |
6AH-26364-00-00 |
from US $3.68 |
||
|
4
|
4
6G1-41662-01-94 Bracket 2 |
6G1-41662-01-94 |
from US $11.23 |
||
|
5
|
5
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
5
|
5
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
5
|
5
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
6
|
6
6BL-44173-00-00 Lever, Shift Control |
6BL-44173-00-00 |
from US $4.82 |
||
|
7
|
7
90254-03M05-00 Pin, Spring |
90254-03M05-00 |
from US $2.55 |
||
|
8
|
8
65W-44116-00-00 Spring |
65W-44116-00-00 |
from US $4.39 |
||
|
9
|
9
66R-44114-00-00 Stopper |
66R-44114-00-00 |
from US $6.94 |
||
|
10
|
10
95895-06014-00 Bolt, Flange |
95895-06014-00 |
US $1.56 |
||
| replacements | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
95D95-06014-00 Bolt, Flange Deep Re |
95D95-06014-00 |
from US $1.07 |
||
|
11
|
11
6BL-44142-00-00 Joint |
6BL-44142-00-00 |
from US $15.02 |
||
|
12
|
12
90254-03M05-00 Pin, Spring |
90254-03M05-00 |
from US $2.55 |
||
|
13
|
13
6BP-44143-10-00 Rod, Shift |
6BP-44143-10-00 |
from US $26.78 |
||
|
14
|
14
90170-06015-00 Nut |
90170-06015-00 |
US $9.78 |
||
| replacement | |||||
|
14
|
14
61N-44146-00-00 Connector, Shift Rod 2 |
61N-44146-00-00 |
from US $9.78 |
||
|
15
|
15
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
15
|
15
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
16
|
16
6BL-44125-00-00 Lever, Shift Rod |
6BL-44125-00-00 |
from US $5.17 |
||
|
17
|
17
90387-06M86-00 Collar |
90387-06M86-00 |
from US $10.20 |
||
|
18
|
18
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.81 |
||
|
19
|
19
97595-06535-00 Bolt, With Washer |
97595-06535-00 |
US $1.07 |
||
| replacement | |||||
|
19
|
19
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $2.02 |
||
|
20
|
20
6BL-44192-00-00 Link, Shift Rod |
6BL-44192-00-00 |
from US $16.59 |
||
|
21
|
21
90201-05M06-00 Washer, Plate |
90201-05M06-00 |
from US $1.98 |
||
|
22
|
22
90468-10005-00 Clip |
90468-10005-00 |
from US $3.40 |
||
|
23
|
23
90468-18001-00 Clip |
90468-18001-00 |
from US $2.55 |
||
|
24
|
24
6FM-48344-00-00 CABLE END, REMOTE CONTROL |
6FM-48344-00-00 |
from US $2.64 |
||
|
25
|
25
90468-18008-00 Clip |
90468-18008-00 |
from US $1.81 |
||
|
26
|
26
6BL-41638-00-00 Pulley |
6BL-41638-00-00 |
from US $11.29 |
||
|
27
|
27
905-08200-40-00 Spring, Torsion |
905-08200-40-00 |
from US $6.53 |
||
|
28
|
28
6DN-41283-00-00 Lever, Free Accel |
6DN-41283-00-00 |
US $3.68 |
||
|
29
|
29
6J8-41262-00-00 Joint, Choke Lever |
6J8-41262-00-00 |
from US $2.02 |
||
|
30
|
30
90387-06139-00 Collar |
90387-06139-00 |
from US $14.96 |
||
|
31
|
31
6DN-41211-00-00 Link, Accel |
6DN-41211-00-00 |
US $19.69 |
||
|
32
|
32
6BL-14571-10-00 Bracket, Throttle |
6BL-14571-10-00 |
from US $45.82 |
||
|
33
|
33
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.81 |
||
|
34
|
34
970-95060-65-00 Bolt |
970-95060-65-00 |
US $3.40 |
||
| replacement | |||||
|
34
|
34
970-80060-65-00 Bolt(Jn5) |
970-80060-65-00 |
US $5.88 |
||
|
35
|
35
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
35
|
35
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
36
|
36
6FM-48344-00-00 CABLE END, REMOTE CONTROL |
6FM-48344-00-00 |
from US $2.64 |
||
|
37
|
37
90468-18008-00 Clip |
90468-18008-00 |
from US $1.81 |
||
