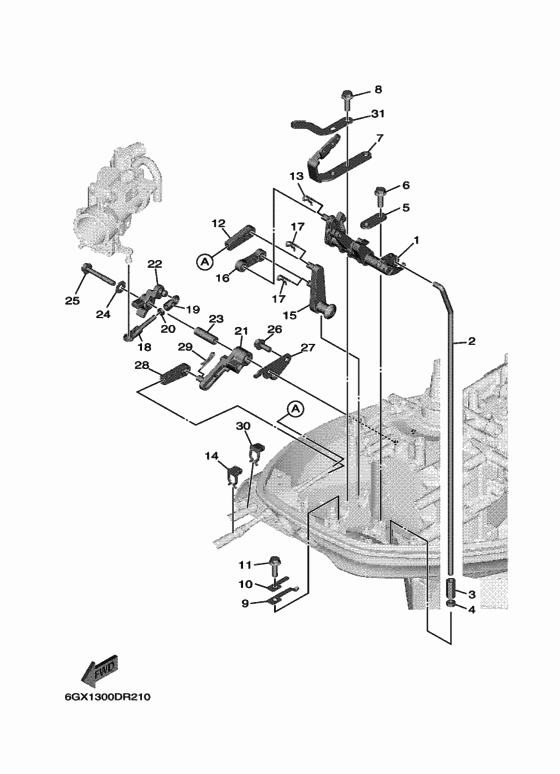

Control Diagram Yamaha F20 ETS/L
- Year
- 2017
- Model
- F20F
- Model code
- 6GX1
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 20
- Sales region
- Europe (020)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6FM-44121-00-00 LEVER, SHIFT ROD |
6FM-44121-00-00 |
from US $36.34 |
||
|
2
|
2
6FM-44143-10-00 ROD, SHIFTL(21.7") |
6FM-44143-10-00 |
from US $18.99 |
||
|
3
|
3
90170-06015-00 Nut |
90170-06015-00 |
US $9.78 |
||
| replacement | |||||
|
3
|
3
61N-44146-00-00 Connector, Shift Rod 2 |
61N-44146-00-00 |
from US $9.78 |
||
|
4
|
4
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
4
|
4
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
5
|
5
6FM-41661-00-00 BRACKET 1 |
6FM-41661-00-00 |
from US $2.41 |
||
|
6
|
6
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
7
|
7
6FM-41662-00-00 BRACKET 2 |
6FM-41662-00-00 |
from US $16.29 |
||
|
8
|
8
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
9
|
9
66R-44116-00-00 Spring |
66R-44116-00-00 |
from US $4.39 |
||
|
10
|
10
66R-44118-00-00 Bracket |
66R-44118-00-00 |
from US $5.24 |
||
|
11
|
11
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
12
|
12
6FM-48344-00-00 CABLE END, REMOTE CONTROL |
6FM-48344-00-00 |
from US $2.64 |
||
|
13
|
13
90468-18008-00 Clip |
90468-18008-00 |
from US $1.81 |
||
|
14
|
14
63D-48538-00-00 Clamp, Cable 1 |
63D-48538-00-00 |
from US $4.08 |
||
|
15
|
15
6FM-44125-00-00 LEVER, SHIFT ROD |
6FM-44125-00-00 |
from US $17.57 |
||
|
16
|
16
6FM-44192-00-00 LINK, SHIFT ROD |
6FM-44192-00-00 |
from US $4.39 |
||
|
17
|
17
90468-18008-00 Clip |
90468-18008-00 |
from US $1.81 |
||
|
18
|
18
682-41237-50-00 Joint, Link |
682-41237-50-00 |
from US $5.40 |
||
|
19
|
19
662-41237-01-00 Joint, Link |
662-41237-01-00 |
US $5.82 |
||
| replacement | |||||
|
19
|
19
6H1-41237-00-00 Joint, Link |
6H1-41237-00-00 |
from US $5.82 |
||
|
20
|
20
95380-05700-00 Nut |
95380-05700-00 |
from US $2.22 |
||
|
21
|
21
6FM-42157-00-00 LEVER, THROTTLE |
6FM-42157-00-00 |
from US $9.21 |
||
|
22
|
22
6GX-41283-00-00 Lever, Free Accel |
6GX-41283-00-00 |
US $9.07 |
||
|
23
|
23
90387-06M59-00 Collar |
90387-06M59-00 |
from US $4.53 |
||
|
24
|
24
90201-06M62-00 Washer, Plate |
90201-06M62-00 |
from US $2.55 |
||
|
25
|
25
95895-06045-00 Bolt, Flange |
95895-06045-00 |
US $1.07 |
||
| replacement | |||||
|
25
|
25
95D95-06045-00 Bolt, Flange Deep Re |
95D95-06045-00 |
from US $1.07 |
||
|
26
|
26
95895-06016-00 Bolt, Flange |
95895-06016-00 |
US $1.07 |
||
| replacements | |||||
|
26
|
26
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
26
|
26
95D95-06016-00 Bolt, Flange Deep Re |
95D95-06016-00 |
from US $1.07 |
||
|
26
|
26
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
27
|
27
6FM-14571-00-00 BRACKET, THROTTLE |
6FM-14571-00-00 |
from US $4.68 |
||
|
28
|
28
6FM-48344-00-00 CABLE END, REMOTE CONTROL |
6FM-48344-00-00 |
from US $2.64 |
||
|
29
|
29
90468-18008-00 Clip |
90468-18008-00 |
from US $1.81 |
||
|
30
|
30
63D-48538-00-00 Clamp, Cable 1 |
63D-48538-00-00 |
from US $4.08 |
||
|
31
|
31
6FM-82398-00-00 PLATE 3 |
6FM-82398-00-00 |
from US $6.80 |
||
