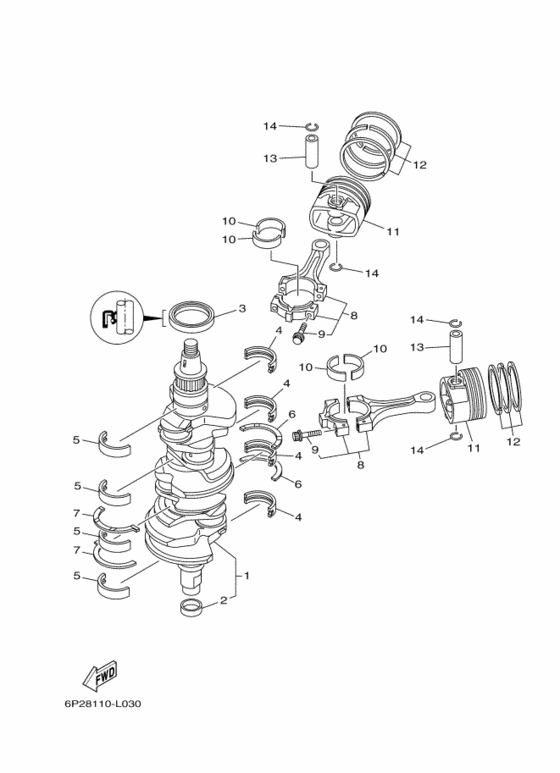

Crankshaft & Piston Diagram Yamaha F200 ETX
- Year
- 2012
- Model
- F200C
- Model code
- 6AL
- Year
- 2012
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 200
- Sales region
- Japan (090)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6P2-11410-10-00 Crankshaft |
6P2-11410-10-00 |
from US $1,786.94 |
||
|
2
|
2
6CB-11478-00-00 Collar．カラ−; |
6CB-11478-00-00 |
from US $57.30 |
||
|
3
|
3
931-02630-08-00 Oil Seal |
931-02630-08-00 |
US $16.78 |
||
| replacement | |||||
|
3
|
3
93102-63004-00 Oil Seal |
93102-63004-00 |
from US $16.78 |
||
|
4
|
4
6P2-11416-00-00 Plane Bearing, Crankshaft 1プレ−ンベアリング，クランクシヤフト １; ＵＲ ＃１ |
6P2-11416-00-00 |
from US $16.15 |
||
|
4
|
4
6P2-11416-10-00 Plane Bearing, Crankshaft 1プレ−ンベアリング，クランクシヤフト １; ＵＲ ＃２ |
6P2-11416-10-00 |
from US $16.51 |
||
|
4
|
4
6P2-11416-20-00 Plane Bearing, Crankshaft 1プレ−ンベアリング，クランクシヤフト １; ＵＲ ＃３ |
6P2-11416-20-00 |
from US $16.15 |
||
|
5
|
5
6P2-11417-00-00 Plane Bearing, Crankshaft 2プレ−ンベアリング，クランクシヤフト ２; ＵＲ ＃１ |
6P2-11417-00-00 |
from US $16.15 |
||
|
5
|
5
6P2-11417-10-00 Plane Bearing, Crankshaft 2プレ−ンベアリング，クランクシヤフト ２; ＵＲ ＃２ |
6P2-11417-10-00 |
from US $16.51 |
||
|
5
|
5
6P2-11417-20-00 Plane Bearing, Crankshaft 2プレ−ンベアリング，クランクシヤフト ２; ＵＲ ＃３ |
6P2-11417-20-00 |
from US $16.15 |
||
|
6
|
6
6AW-11426-00-00
Bearing, Thrust 1
|
6AW-11426-00-00 |
— | ||
|
7
|
7
6AW-11427-00-00
Bearing, Thrust 2
|
6AW-11427-00-00 |
— | ||
|
8
|
8
6P2-11650-00-00 Connecting Rod Assy |
6P2-11650-00-00 |
from US $181.51 |
||
|
9
|
9
63P-11654-10-00 Bolt, Connecting Rod．ボルト，コネクテイングロツド; |
63P-11654-10-00 |
from US $6.80 |
||
|
10
|
10
6P2-11656-00-00 Plane Bearing, Connecting RodＵＲ イエロー |
6P2-11656-00-00 |
US $14.17 |
||
|
10
|
10
6P2-11656-10-00 Plane Bearing, Connecting RodＵＲ グリーン |
6P2-11656-10-00 |
US $14.84 |
||
|
10
|
10
6P2-11656-20-00 Plane Bearing, Connecting RodＵＲ ブルー |
6P2-11656-20-00 |
US $14.17 |
||
|
11
|
11
6P2-11631-10-93 Piston (Std)ＳＴＤ |
6P2-11631-10-93 |
US $133.19 |
||
|
11
|
11
6P2-11635-10-00 Piston (0.25Mm O/s)０．２５ＭＭ Ｏ／Ｓ; ＡＰ |
6P2-11635-10-00 |
from US $140.87 |
||
|
12
|
12
63P-11603-01-00 Piston Ring Set (Std)ＳＴＤ |
63P-11603-01-00 |
from US $60.82 |
||
|
12
|
12
63P-11604-00-00 Piston Ring Set (0.25Mm O/s)０．２５ＭＭ Ｏ／Ｓ; ＡＰ |
63P-11604-00-00 |
from US $59.26 |
||
|
13
|
13
63P-11633-10-00 Pin, Piston |
63P-11633-10-00 |
from US $19.84 |
||
|
14
|
14
63P-11634-00-00 Clip, Piston Pin |
63P-11634-00-00 |
from US $3.04 |
||
