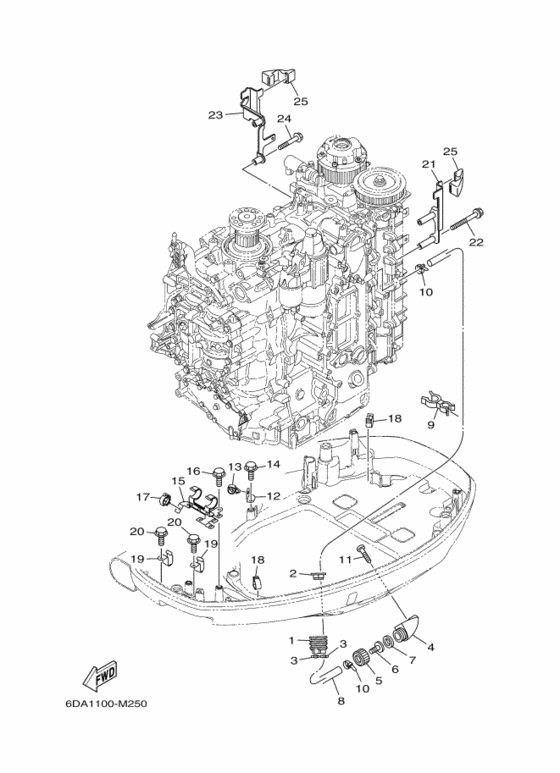

Bottom cowling 3 Diagram Yamaha F200 ETX
- Year
- 2013
- Model
- F200F
- Model code
- 6DA1
- Year
- 2013
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 200
- Sales region
- Canada (020)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H1-42726-21-00 Grommet |
6H1-42726-21-00 |
US $6.24 |
||
| replacement | |||||
|
1
|
1
6H1-42726-22-00 GROMMET |
6H1-42726-22-00 |
from US $6.24 |
||
|
2
|
2
6BG-42384-00-00 Seal, Cap |
6BG-42384-00-00 |
from US $2.83 |
||
|
3
|
3
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
3
|
3
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
3
|
3
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
4
|
4
6AW-12572-00-00 Adapter |
6AW-12572-00-00 |
from US $9.35 |
||
|
5
|
5
6R3-12581-00-00 Joint, Hose 1 |
6R3-12581-00-00 |
from US $3.04 |
||
|
6
|
6
6AW-12582-00-00 Joint, Hose 2 |
6AW-12582-00-00 |
from US $3.26 |
||
|
7
|
7
6R3-12583-00-00 Gasket, Hose Joint |
6R3-12583-00-00 |
from US $1.13 |
||
|
8
|
8
6DA-42541-00-00 Pipe 1 |
6DA-42541-00-00 |
from US $23.52 |
||
|
9
|
9
90464-21256-00 Clamp |
90464-21256-00 |
from US $3.54 |
||
|
10
|
10
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
10
|
10
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
10
|
10
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
11
|
11
97780-60520-00 Screw, Tapping |
97780-60520-00 |
from US $2.02 |
||
|
12
|
12
63P-42756-00-00 Stay, Clamp |
63P-42756-00-00 |
from US $3.26 |
||
|
13
|
13
90464-13249-00 Clamp |
90464-13249-00 |
from US $1.70 |
||
|
14
|
14
95895-06012-00 Bolt, Flange |
95895-06012-00 |
US $1.28 |
||
|
15
|
15
6DA-8366G-00-00 Bracket 3 |
6DA-8366G-00-00 |
from US $28.05 |
||
|
16
|
16
95895-06012-00 Bolt, Flange |
95895-06012-00 |
US $1.28 |
||
|
17
|
17
90464-18246-00 Clamp(4Tr) |
90464-18246-00 |
from US $1.28 |
||
|
18
|
18
90464-18004-00 Clamp |
90464-18004-00 |
from US $2.69 |
||
|
19
|
19
904-62120-13-00 Clamp |
904-62120-13-00 |
from US $5.10 |
||
|
20
|
20
95895-06012-00 Bolt, Flange |
95895-06012-00 |
US $1.28 |
||
|
21
|
21
6DA-11998-00-00 Bracket 1 |
6DA-11998-00-00 |
from US $59.69 |
||
|
22
|
22
95895-06065-00 Bolt, Flange |
95895-06065-00 |
US $2.27 |
||
|
23
|
23
6DA-11999-00-00 Bracket 2 |
6DA-11999-00-00 |
from US $73.64 |
||
|
24
|
24
958-95060-40-00 Bolt, Flange |
958-95060-40-00 |
US $1.98 |
||
|
25
|
25
6CB-42662-00-00 Damper |
6CB-42662-00-00 |
US $7.08 |
||
