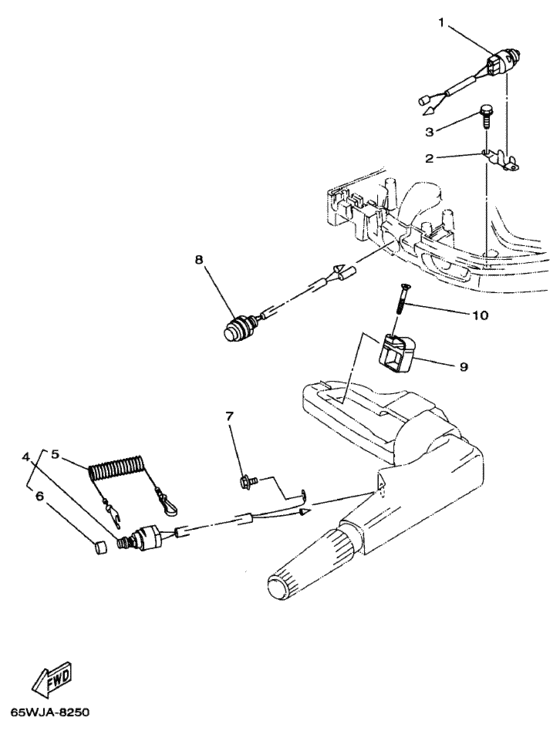

Electrical Diagram Yamaha F25 ES/LH
- Year
- 1998
- Model
- F25
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-82540-00-00 Neutral Switch Assy |
6H3-82540-00-00 |
US $39.24 |
||
| replacement | |||||
|
1
|
1
688-82540-12-00 Neutral Switch Assy |
688-82540-12-00 |
from US $39.24 |
||
|
2
|
2
6J8-82554-00-00 Stay, Neutral Switch |
6J8-82554-00-00 |
from US $12.18 |
||
|
3
|
3
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
4
|
4
65W-82575-00-00 Engine Stop Switch Assy |
65W-82575-00-00 |
US $49.88 |
||
| replacements | |||||
|
4
|
4
6E9-82575-02-00 Engine Stop Switch Assy |
6E9-82575-02-00 |
from US $49.99 |
||
|
4
|
4
65W-82575-01-00 Engine Stop Switch Assy |
65W-82575-01-00 |
from US $49.88 |
||
|
5
|
5
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
6
|
6
689-8257Y-00-00 Cap |
689-8257Y-00-00 |
from US $4.82 |
||
|
7
|
7
975-95065-12-00
Bolt, With Washer
|
975-95065-12-00 |
— | ||
| replacements | |||||
|
7
|
7
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
7
|
7
97E95-06512-00 Bolt, Hexagon W/w De |
97E95-06512-00 |
from US $1.07 |
||
|
7
|
7
97E95-06512-00 Bolt, Hexagon W/w De |
97E95-06512-00 |
from US $1.07 |
||
|
8
|
8
65W-81870-00-00 Starting Switch Assy |
65W-81870-00-00 |
from US $35.24 |
||
|
9
|
9
65W-82594-00-00 Clamp |
65W-82594-00-00 |
from US $6.38 |
||
|
10
|
10
90161-06M00-00 Screw, Tapping |
90161-06M00-00 |
US $2.55 |
||
| replacement | |||||
|
10
|
10
90161-06M03-00 Screw, Tapping(6E7) |
90161-06M03-00 |
from US $2.55 |
||
