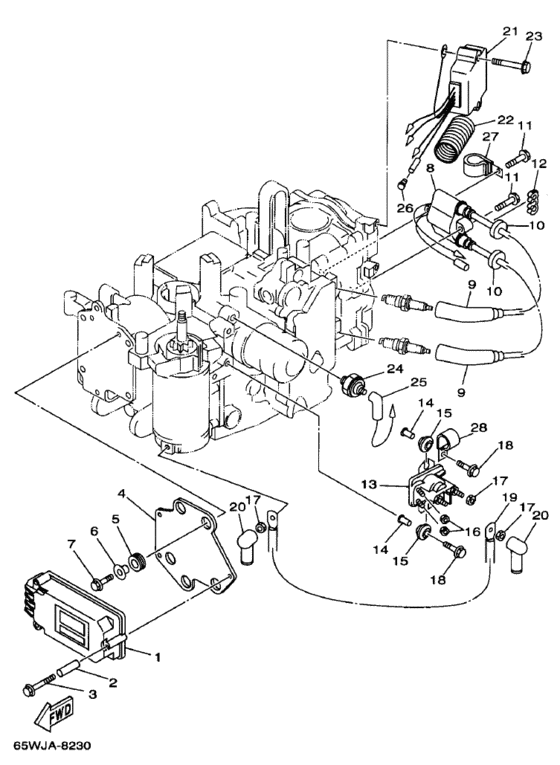

Electrical Diagram Yamaha F25 ES/LH
- Year
- 1998
- Model
- F25
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65W-85540-00-00 C.d.i. Unit Assembly |
65W-85540-00-00 |
US $670.56 |
||
| replacement | |||||
|
1
|
1
65W-85540-20-00 C.d.i. Unit Assy |
65W-85540-20-00 |
from US $661.46 |
||
|
2
|
2
65W-86129-00-00 Collar |
65W-86129-00-00 |
from US $7.37 |
||
|
3
|
3
65W-8252V-00-00 Screw, Special |
65W-8252V-00-00 |
from US $5.53 |
||
|
4
|
4
65W-85542-00-00 Bracket |
65W-85542-00-00 |
from US $64.13 |
||
|
5
|
5
65W-85547-00-00 Damper |
65W-85547-00-00 |
from US $5.53 |
||
|
6
|
6
65W-86129-10-00 Collar |
65W-86129-10-00 |
from US $6.62 |
||
|
7
|
7
65W-8252V-10-00 Screw, Special |
65W-8252V-10-00 |
from US $5.53 |
||
|
8
|
8
65W-85570-00-00 Ignition Coil Assy |
65W-85570-00-00 |
US $140.92 |
||
| replacement | |||||
|
8
|
8
65W-85570-01-00 Ignition Coil Assy |
65W-85570-01-00 |
from US $140.92 |
||
|
9
|
9
6G8-82370-20-00 Plug Cap Assembly |
6G8-82370-20-00 |
from US $27.91 |
||
|
10
|
10
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
11
|
11
97595-06530-00 Bolt, With Washer |
97595-06530-00 |
US $0.79 |
||
| replacement | |||||
|
11
|
11
97E95-06530-00 Bolt, Hexagon W/w De |
97E95-06530-00 |
from US $0.79 |
||
|
12
|
12
90464-07M05-00 Clamp |
90464-07M05-00 |
from US $5.09 |
||
|
13
|
13
65W-81941-00-00 Starter Relay Assy |
65W-81941-00-00 |
from US $59.82 |
||
|
14
|
14
65W-8191C-00-00 Collar |
65W-8191C-00-00 |
from US $5.53 |
||
|
15
|
15
65W-81922-00-00 Grommet |
65W-81922-00-00 |
from US $10.94 |
||
|
16
|
16
65W-8182A-00-00 Nut |
65W-8182A-00-00 |
from US $2.83 |
||
|
17
|
17
65W-8182B-00-00 Nut, Special |
65W-8182B-00-00 |
from US $3.54 |
||
|
18
|
18
97595-06525-00 Bolt |
97595-06525-00 |
US $1.21 |
||
| replacements | |||||
|
18
|
18
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
18
|
18
97E95-06525-00 Bolt, Hexagon W/w Deep Recess |
97E95-06525-00 |
from US $1.18 |
||
|
19
|
19
65W-82117-00-00 Wire, Lead |
65W-82117-00-00 |
from US $21.98 |
||
|
20
|
20
6G5-82119-10-00 Cover, Lead Wire |
6G5-82119-10-00 |
from US $5.53 |
||
|
21
|
21
65W-81960-00-00
Rectifier & Regulator Assy
|
65W-81960-00-00 |
— | ||
| replacement | |||||
|
21
|
21
65W-81960-10-00 Rectifier & Regulator Assy |
65W-81960-10-00 |
from US $357.37 |
||
|
22
|
22
6K3-83557-00-00
Tube
|
6K3-83557-00-00 |
— | ||
| replacement | |||||
|
22
|
22
6G1-83557-00-00 Tube |
6G1-83557-00-00 |
from US $4.11 |
||
|
23
|
23
97595-06540-00 Bolt, With Washer |
97595-06540-00 |
from US $1.07 |
||
|
24
|
24
65W-82504-00-00 Oil Pressure Switch Assy |
65W-82504-00-00 |
from US $49.88 |
||
|
25
|
25
65W-82127-00-00 Wire, Lead 2 |
65W-82127-00-00 |
from US $17.93 |
||
|
26
|
26
703-82119-00-00 Cover, Lead Wire |
703-82119-00-00 |
from US $2.13 |
||
|
27
|
27
65W-24135-00-00
Clamp 1
|
65W-24135-00-00 |
— | ||
|
28
|
28
65W-8339X-00-00 Clamp, Cord |
65W-8339X-00-00 |
from US $2.83 |
||
