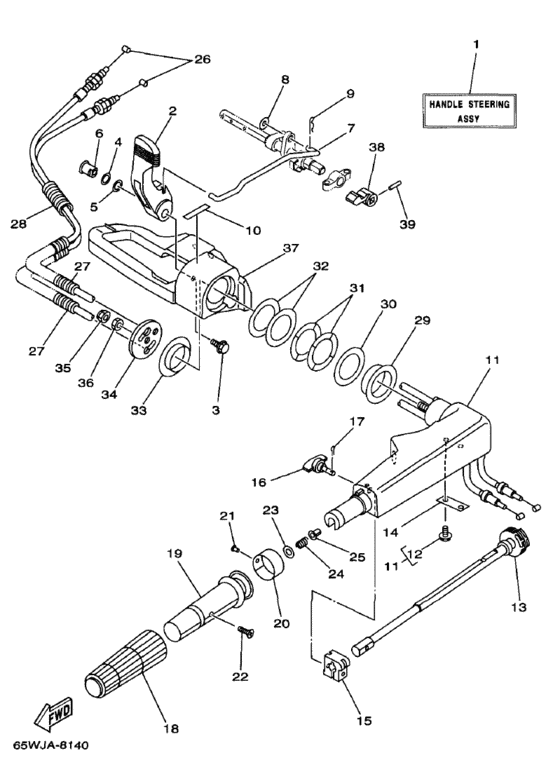

Steering Diagram Yamaha F25 ES/LH
- Year
- 1998
- Model
- F25
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65W-W0084-00-4D Handle Steering AssemblyHandle steering assy fg11 rf20,23, rf.2-7,10-37,fg26 rf4-6 |
65W-W0084-00-4D |
US $794.64 |
||
| replacements | |||||
|
1
|
1
65W-W0084-02-4D Handle Steering Assy |
65W-W0084-02-4D |
US $431.10 |
||
|
1
|
1
65W-W0084-02-8D
Handle Steering Assy
|
65W-W0084-02-8D |
— | ||
|
1
|
1
65W-W0084-03-8D Handle Steering Assy |
65W-W0084-03-8D |
US $687.58 |
||
|
1
|
1
65W-W0084-03-8D Handle Steering Assy |
65W-W0084-03-8D |
US $687.58 |
||
|
2
|
2
65W-44111-00-00 Handle, Gear Shift |
65W-44111-00-00 |
from US $28.66 |
||
|
3
|
3
95895-06016-00 Bolt, Flange |
95895-06016-00 |
US $1.07 |
||
| replacements | |||||
|
3
|
3
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
3
|
3
95D95-06016-00 Bolt, Flange Deep Re |
95D95-06016-00 |
from US $1.07 |
||
|
3
|
3
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
4
|
4
90206-12M00-00 Washer, Wave |
90206-12M00-00 |
from US $3.26 |
||
|
5
|
5
902-0112M-34-00 Washer, Plate |
902-0112M-34-00 |
from US $2.69 |
||
|
6
|
6
65W-42123-00-00 Bolt, Handle Joint |
65W-42123-00-00 |
from US $16.86 |
||
|
7
|
7
65W-44124-00-00 Link, Shift Rod |
65W-44124-00-00 |
from US $27.95 |
||
|
8
|
8
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
9
|
9
90468-18008-00 Clip |
90468-18008-00 |
from US $1.81 |
||
|
10
|
10
6E0-44191-11-00 Indicator, Shift |
6E0-44191-11-00 |
US $4.68 |
||
| replacement | |||||
|
10
|
10
6X3-44191-00-00 Indicator, Shift |
6X3-44191-00-00 |
from US $4.68 |
||
|
11
|
11
65W-42101-00-4D
Handle, Steering
|
65W-42101-00-4D |
— | ||
| replacement | |||||
|
11
|
11
999-99031-28-00
Handle, Steering
|
999-99031-28-00 |
— | ||
|
12
|
12
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
13
|
13
65W-42138-00-00 Lever, Throttle |
65W-42138-00-00 |
from US $27.28 |
||
|
14
|
14
65W-42159-00-00 Stay |
65W-42159-00-00 |
from US $5.81 |
||
|
15
|
15
6G1-42126-00-00 Friction, Steering Handle Grip |
6G1-42126-00-00 |
from US $8.64 |
||
| replacement | |||||
|
15
|
15
6EE-G2126-00-00 Friction, Steering |
6EE-G2126-00-00 |
from US $2.98 |
||
|
16
|
16
65W-42125-00-00 Bolt, Friction Adjusting |
65W-42125-00-00 |
from US $10.63 |
||
|
17
|
17
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.70 |
||
|
18
|
18
6F6-42177-A0-00
Rubber, Handle
|
6F6-42177-A0-00 |
— | ||
| replacements | |||||
|
18
|
18
6G1-42177-00-00
Rubber, Handle
|
6G1-42177-00-00 |
— | ||
|
18
|
18
6G1-42177-01-00 RUBBER, HANDLE |
6G1-42177-01-00 |
from US $11.76 |
||
|
19
|
19
664-42119-00-00 Grip, Steering Handle |
664-42119-00-00 |
from US $21.22 |
||
|
20
|
20
6H2-42137-00-00 Indicator, Throttle |
6H2-42137-00-00 |
from US $10.06 |
||
| replacement | |||||
|
20
|
20
6H2-42137-10-00 Indicator, Throttle |
6H2-42137-10-00 |
US $4.82 |
||
|
20
|
20
6J0-42137-00-00 Indicator, Throttle |
6J0-42137-00-00 |
US $3.54 |
||
| replacement | |||||
|
20
|
20
6J0-42137-10-00 Indicator, Throttle |
6J0-42137-10-00 |
from US $3.54 |
||
|
21
|
21
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $2.22 |
||
|
22
|
22
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
22
|
22
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.52 |
||
|
23
|
23
92903-10600-00 Washer, Plate |
92903-10600-00 |
US $1.07 |
||
| replacement | |||||
|
23
|
23
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
24
|
24
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
25
|
25
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
26
|
26
65W-26311-00-00 Cable, Throttle 1 |
65W-26311-00-00 |
from US $24.94 |
||
|
27
|
27
90446-10M86-00 Hose (L140) |
90446-10M86-00 |
from US $3.68 |
||
|
28
|
28
90446-14M88-00 Hose |
90446-14M88-00 |
from US $3.83 |
||
|
29
|
29
90386-40MA0-00 Bush |
90386-40MA0-00 |
US $3.68 |
||
| replacement | |||||
|
29
|
29
66R-42171-00-00 Bushing |
66R-42171-00-00 |
from US $2.70 |
||
|
30
|
30
90201-43M00-00 Washer, Plate |
90201-43M00-00 |
from US $2.70 |
||
|
31
|
31
90206-43M22-00 Washer, Wave |
90206-43M22-00 |
from US $9.07 |
||
|
32
|
32
90202-43M57-00 Washer, Plate |
90202-43M57-00 |
from US $2.02 |
||
|
33
|
33
90386-40M99-00 Bush |
90386-40M99-00 |
from US $2.36 |
||
|
34
|
34
65W-42131-00-00 Cover, Handle Steering |
65W-42131-00-00 |
US $6.94 |
||
| replacement | |||||
|
34
|
34
65W-42131-01-00 Cover, Handle Steering |
65W-42131-01-00 |
from US $6.94 |
||
|
35
|
35
901-85080-57-00
Nut, Self-Locking
|
901-85080-57-00 |
— | ||
| replacement | |||||
|
35
|
35
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
36
|
36
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
36
|
36
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
36
|
36
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
37
|
37
65W-42121-00-4D Bracket |
65W-42121-00-4D |
US $101.55 |
||
| replacement | |||||
|
37
|
37
65W-42121-01-8D BRACKET |
65W-42121-01-8D |
from US $101.55 |
||
|
38
|
38
65W-44173-00-00 Lever, Shift Control |
65W-44173-00-00 |
US $10.63 |
||
| replacement | |||||
|
38
|
38
65W-44173-01-00 Lever, Shift Control |
65W-44173-01-00 |
from US $9 |
||
|
39
|
39
91690-30320-00 Pin, Spring |
91690-30320-00 |
US $2.55 |
||
| replacement | |||||
|
39
|
39
90254-03M05-00 Pin, Spring |
90254-03M05-00 |
from US $2.55 |
||
