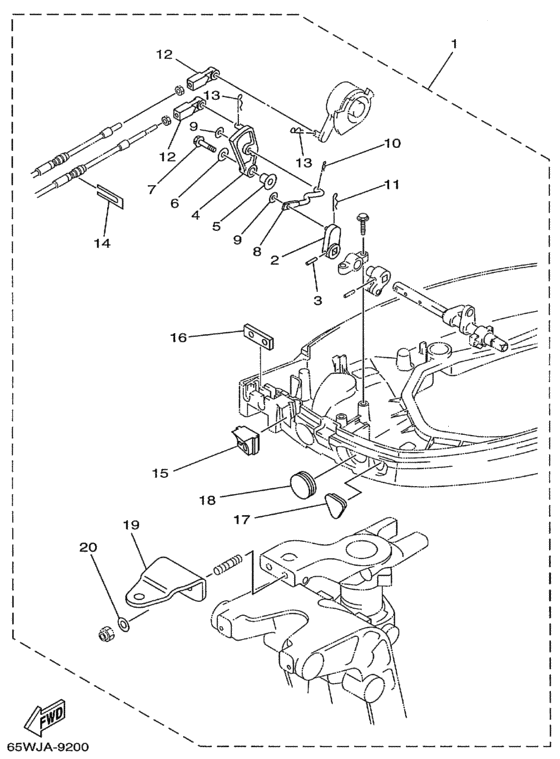

Remote control attachment Diagram Yamaha F25 ES/LH
- Year
- 1999
- Model
- F25
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65W-48501-00-00 Remote Cont. Attachment Assy |
65W-48501-00-00 |
US $219.67 |
||
|
2
|
2
65W-44142-00-00 Joint |
65W-44142-00-00 |
from US $11.76 |
||
|
3
|
3
91690-30320-00 Pin, Spring |
91690-30320-00 |
US $2.55 |
||
| replacement | |||||
|
3
|
3
90254-03M05-00 Pin, Spring |
90254-03M05-00 |
from US $2.55 |
||
|
4
|
4
65W-44125-00-00 Lever, Shift Rod |
65W-44125-00-00 |
from US $7.65 |
||
|
5
|
5
90387-06M29-00 Collar |
90387-06M29-00 |
from US $5.81 |
||
|
6
|
6
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.81 |
||
|
7
|
7
97595-06525-00 Bolt |
97595-06525-00 |
US $1.21 |
||
| replacements | |||||
|
7
|
7
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
7
|
7
97E95-06525-00 Bolt, Hexagon W/w Deep Recess |
97E95-06525-00 |
from US $1.18 |
||
|
8
|
8
65W-44192-00-00 Joint, Rod 1 |
65W-44192-00-00 |
from US $21.39 |
||
|
9
|
9
90201-05M06-00 Washer, Plate |
90201-05M06-00 |
from US $1.98 |
||
|
10
|
10
90468-10005-00 Clip |
90468-10005-00 |
from US $3.40 |
||
|
11
|
11
90468-18008-00 Clip |
90468-18008-00 |
from US $1.81 |
||
|
12
|
12
663-48344-00-00
Cable End, Remote Control
|
663-48344-00-00 |
— | ||
| replacement | |||||
|
12
|
12
6FM-48344-00-00 CABLE END, REMOTE CONTROL |
6FM-48344-00-00 |
from US $2.64 |
||
|
13
|
13
90468-18008-00 Clip |
90468-18008-00 |
from US $1.81 |
||
|
14
|
14
6H3-48538-00-00 Clamp, Cable 1 |
6H3-48538-00-00 |
from US $3.38 |
||
|
15
|
15
65W-42725-20-00 Grommet |
65W-42725-20-00 |
US $9.07 |
||
| replacements | |||||
|
15
|
15
65W-42725-21-00 Grommet |
65W-42725-21-00 |
US $9.07 |
||
|
15
|
15
65W-42725-22-00 Grommet |
65W-42725-22-00 |
US $19.85 |
||
|
16
|
16
62Y-42727-00-00 Grommet |
62Y-42727-00-00 |
US $7.37 |
||
|
17
|
17
65W-26326-10-00 Grommet |
65W-26326-10-00 |
US $7.93 |
||
|
18
|
18
65W-42726-10-00 Grommet |
65W-42726-10-00 |
US $3.54 |
||
|
19
|
19
65W-48511-00-00 Hook, Steering |
65W-48511-00-00 |
US $22.39 |
||
| replacement | |||||
|
19
|
19
65W-48511-01-00 Hook, Steering |
65W-48511-01-00 |
from US $22.39 |
||
|
20
|
20
90201-10120-00 Washer, Plate |
90201-10120-00 |
US $3.12 |
||
| replacement | |||||
|
20
|
20
90201-10049-00 Washer, Plate |
90201-10049-00 |
from US $2.75 |
||
