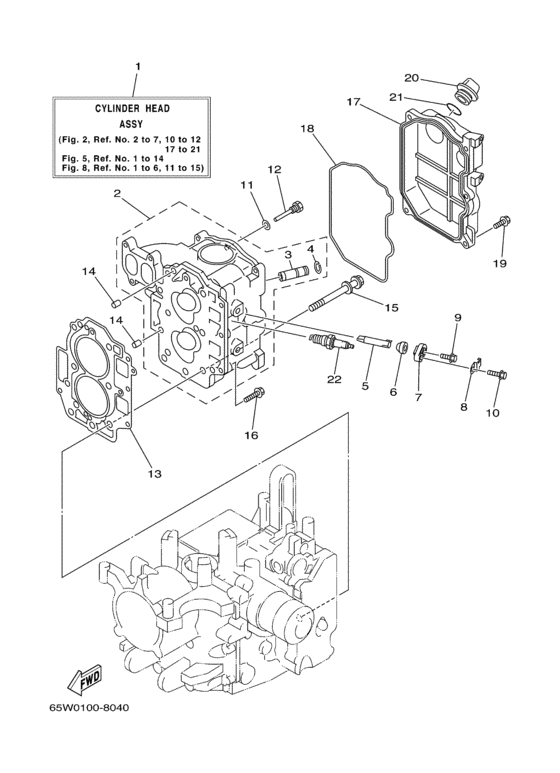

Cylinder crankcase Diagram Yamaha F25 ES/LH
- Year
- 2000
- Model
- F25
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65W-W009A-12-4D Cylinder Head Complete |
65W-W009A-12-4D |
US $1,856.56 |
||
| replacement | |||||
|
1
|
1
65W-W009A-16-1S Cylinder Head Complete |
65W-W009A-16-1S |
from US $1,829.26 |
||
|
2
|
2
65W-11111-02-94 Head, Cylinder 1 |
65W-11111-02-94 |
US $1,356.93 |
||
| replacement | |||||
|
2
|
2
65W-11111-20-1S Head, Cylinder 1 |
65W-11111-20-1S |
US $1,356.93 |
||
|
3
|
3
62Y-11133-10-00 Guide, Valve 1 |
62Y-11133-10-00 |
US $12.61 |
||
| replacements | |||||
|
3
|
3
62Y-11133-30-00 Guide, Intake Valve |
62Y-11133-30-00 |
US $12.61 |
||
|
3
|
3
62Y-11133-31-00 Guide, Valve 1 |
62Y-11133-31-00 |
from US $13.31 |
||
|
4
|
4
93450-09M01-00 Circlip |
93450-09M01-00 |
from US $1.49 |
||
|
5
|
5
62Y-11325-00-00 Anode |
62Y-11325-00-00 |
from US $8.60 |
||
|
6
|
6
66M-11328-00-00 Grommet, Anode |
66M-11328-00-00 |
US $1.94 |
||
|
7
|
7
66M-11327-00-94 Cover, Anode |
66M-11327-00-94 |
from US $5.24 |
||
|
8
|
8
66M-12535-00-00 Plate |
66M-12535-00-00 |
from US $3.54 |
||
|
9
|
9
97595-05512-00 Bolt, With Washer |
97595-05512-00 |
from US $1.28 |
||
| replacement | |||||
|
9
|
9
97095-05012-00 Bolt |
97095-05012-00 |
from US $1.55 |
||
|
10
|
10
97513-06520-00 Bolt, With Washer |
97513-06520-00 |
from US $1.78 |
||
| replacement | |||||
|
10
|
10
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
11
|
11
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
12
|
12
90109-06M65-00 Bolt |
90109-06M65-00 |
from US $22.67 |
||
|
13
|
13
65W-11181-10-00 Gasket, Cylinder Head 1 |
65W-11181-10-00 |
US $79.72 |
||
| replacement | |||||
|
13
|
13
65W-11181-30-00 Gasket, Cylinder Head 1 |
65W-11181-30-00 |
from US $63.96 |
||
|
14
|
14
99530-08012-00 Pin, Dowel |
99530-08012-00 |
from US $1.18 |
||
|
15
|
15
90119-09M00-00 Bolt, With Washer |
90119-09M00-00 |
from US $8.19 |
||
|
16
|
16
97513-06525-00 Bolt, With Washer |
97513-06525-00 |
from US $1.84 |
||
|
17
|
17
65W-11191-00-94 Cover, Cylinder Head 1 |
65W-11191-00-94 |
US $96.09 |
||
| replacement | |||||
|
17
|
17
65W-11191-00-1S
Cover, Cylinder Head 1
|
65W-11191-00-1S |
— | ||
|
18
|
18
65W-11356-00-00 Seal, Cylinder 2 |
65W-11356-00-00 |
from US $27.43 |
||
|
19
|
19
97513-06520-00 Bolt, With Washer |
97513-06520-00 |
from US $1.78 |
||
| replacement | |||||
|
19
|
19
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
20
|
20
6G8-15363-00-00 Plug, Oil |
6G8-15363-00-00 |
from US $8.05 |
||
|
21
|
21
932-1024M-79-00
O-Ring
|
932-1024M-79-00 |
— | ||
| replacements | |||||
|
21
|
21
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $3.04 |
||
|
21
|
21
93210-24800-00 O-Ring |
93210-24800-00 |
from US $2.29 |
||
|
22
|
22
NGK-DPR6E-A9-00
Plug, Spark (Ngk Dpr6Ea-9)
|
NGK-DPR6E-A9-00 |
— | ||
| replacement | |||||
|
22
|
22
DPR-6EA90-00-00 Plug, Spark (Ngk Dpr6Eb) |
DPR-6EA90-00-00 |
US $68.90 |
||
