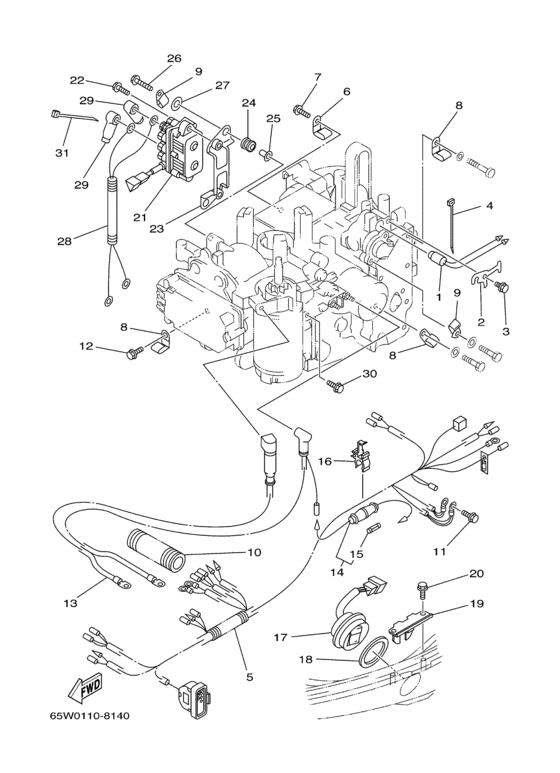

Electrical Diagram Yamaha F25 ES/LH
- Year
- 2000
- Model
- F25
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65W-85790-00-00 Thermosensor Assy |
65W-85790-00-00 |
from US $73.10 |
||
|
2
|
2
65W-85757-00-00 Retainer |
65W-85757-00-00 |
from US $11.62 |
||
|
3
|
3
975-95065-12-00
Bolt, With Washer
|
975-95065-12-00 |
— | ||
| replacements | |||||
|
3
|
3
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
3
|
3
97E95-06512-00 Bolt, Hexagon W/w De |
97E95-06512-00 |
from US $1.07 |
||
|
3
|
3
97E95-06512-00 Bolt, Hexagon W/w De |
97E95-06512-00 |
from US $1.07 |
||
|
4
|
4
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
4
|
4
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
4
|
4
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
5
|
5
65W-82590-00-00 Wire Harness Assy |
65W-82590-00-00 |
US $207.96 |
||
|
5
|
5
65W-82590-40-00 Wire Harness Assy |
65W-82590-40-00 |
from US $338.38 |
||
|
5
|
5
65W-82590-20-00 Wire Harness Assy (10P)10P |
65W-82590-20-00 |
US $207.96 |
||
|
5
|
5
65W-82590-30-00 Wire Harness Assy (10P)10P |
65W-82590-30-00 |
US $207.96 |
||
|
6
|
6
90465-08M08-00 Clamp |
90465-08M08-00 |
from US $11.05 |
||
|
7
|
7
97595-06516-00 Bolt, With Washer |
97595-06516-00 |
US $2.55 |
||
| replacement | |||||
|
7
|
7
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
8
|
8
90465-08M08-00 Clamp |
90465-08M08-00 |
from US $11.05 |
||
|
9
|
9
90465-06M88-00 Clamp |
90465-06M88-00 |
from US $8.05 |
||
|
10
|
10
6N7-83557-00-00 Tube (I.dia:22Mm) |
6N7-83557-00-00 |
from US $4.11 |
||
|
11
|
11
97595-06516-00 Bolt, With Washer |
97595-06516-00 |
US $2.55 |
||
| replacement | |||||
|
11
|
11
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
12
|
12
97595-05516-00 Bolt, With Washer |
97595-05516-00 |
from US $1.42 |
||
|
13
|
13
65W-82105-00-00 Battery Cable |
65W-82105-00-00 |
US $161.65 |
||
| replacements | |||||
|
13
|
13
66T-82105-J1-00 Battery Cable |
66T-82105-J1-00 |
US $161.65 |
||
|
13
|
13
66T-82105-J2-00 Battery Cable |
66T-82105-J2-00 |
from US $160.05 |
||
|
14
|
14
6G8-82150-00-00 Fuse Holder Assy |
6G8-82150-00-00 |
US $20.83 |
||
|
15
|
15
663-82151-00-00 Fuse (12V-20A)12V-20A |
663-82151-00-00 |
US $1.81 |
||
| replacements | |||||
|
15
|
15
682-82151-01-00 Fuse (20A)12V-20A |
682-82151-01-00 |
US $1.81 |
||
|
15
|
15
682-82151-02-00 FUSE12V-20A |
682-82151-02-00 |
from US $1.81 |
||
|
16
|
16
6G5-82152-00-00 Holder, Fuse |
6G5-82152-00-00 |
from US $2.36 |
||
|
17
|
17
6H1-82563-10-00 Trim & Tilt Switch Assy |
6H1-82563-10-00 |
US $95.47 |
||
| replacements | |||||
|
17
|
17
6H1-82563-11-00 Trim & Tilt Switch Assy |
6H1-82563-11-00 |
from US $95.47 |
||
|
17
|
17
6R3-82563-01-00 Trim & Tilt Switch Assy |
6R3-82563-01-00 |
from US $78.10 |
||
|
18
|
18
6E5-82587-00-00 Gasket |
6E5-82587-00-00 |
US $5.58 |
||
|
19
|
19
62Y-83614-00-00 Bracket |
62Y-83614-00-00 |
from US $7.07 |
||
|
20
|
20
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
21
|
21
61A-81950-00-00 Relay Assy |
61A-81950-00-00 |
US $243.16 |
||
| replacement | |||||
|
21
|
21
61A-81950-01-00 Relay Assy |
61A-81950-01-00 |
from US $243.16 |
||
|
22
|
22
97575-06520-00 Bolt, With Washer |
97575-06520-00 |
US $1.07 |
||
| replacement | |||||
|
22
|
22
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
23
|
23
65W-81948-00-00
Bracket
|
65W-81948-00-00 |
— | ||
|
24
|
24
6A0-82317-00-00 Damper, Ignition Coil |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
24
|
24
6A0-82317-01-00 DAMPER IGNITION COIL |
6A0-82317-01-00 |
from US $2.36 |
||
|
25
|
25
624-42542-00-00 Collar |
624-42542-00-00 |
US $6.23 |
||
| replacement | |||||
|
25
|
25
90387-06119-00 Collar |
90387-06119-00 |
from US $3.26 |
||
|
26
|
26
95895-06030-00 Bolt, Flange |
95895-06030-00 |
US $2.13 |
||
|
27
|
27
90201-12M16-00 Washer, Plate |
90201-12M16-00 |
from US $2.70 |
||
|
28
|
28
65W-81949-00-00 Wire, Lead |
65W-81949-00-00 |
from US $33.81 |
||
|
29
|
29
682-82119-01-00 Cover, Lead Wire |
682-82119-01-00 |
US $5.53 |
||
| replacement | |||||
|
29
|
29
6G5-82119-10-00 Cover, Lead Wire |
6G5-82119-10-00 |
from US $5.53 |
||
|
30
|
30
97575-06516-00 Bolt, With Washer |
97575-06516-00 |
US $1.07 |
||
| replacement | |||||
|
30
|
30
97E75-06516-00 Bolt, Hexagon W/w Deep Recess |
97E75-06516-00 |
from US $1.07 |
||
|
31
|
31
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
31
|
31
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
31
|
31
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
