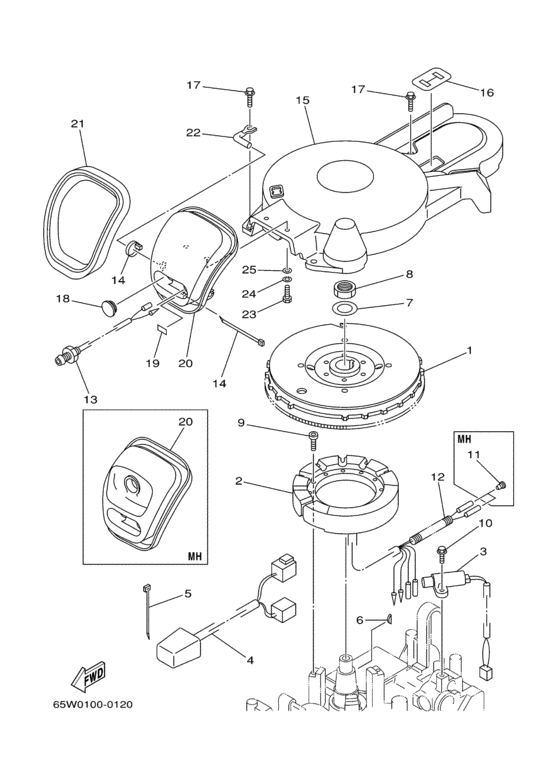

Generator Diagram Yamaha F25 ES/LH
- Year
- 2000
- Model
- F25
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65W-85550-01-00 Rotor Assy |
65W-85550-01-00 |
from US $557.04 |
||
|
2
|
2
65W-85510-00-00 Stator Assy |
65W-85510-00-00 |
from US $362.82 |
||
|
2
|
2
65W-85510-10-00 Stator Assy |
65W-85510-10-00 |
from US $349.81 |
||
|
3
|
3
65W-85580-00-00 Coil, Pulser |
65W-85580-00-00 |
from US $146.81 |
||
|
4
|
4
67C-85370-00-00 Resistor Assy |
67C-85370-00-00 |
US $100.82 |
||
|
5
|
5
90465-13M18-00 Clamp |
90465-13M18-00 |
from US $1.35 |
||
| replacements | |||||
|
5
|
5
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
5
|
5
90465-13M30-00 Clamp |
90465-13M30-00 |
from US $1.90 |
||
|
6
|
6
65W-11545-00-00 Key, Woodruff |
65W-11545-00-00 |
from US $4.82 |
||
|
7
|
7
90201-21M18-00 Washer, Plate |
90201-21M18-00 |
from US $7.08 |
||
|
8
|
8
90170-20137-00 Nut |
90170-20137-00 |
from US $9.44 |
||
|
9
|
9
91380-05025-00 Bolt |
91380-05025-00 |
from US $3.12 |
||
|
9
|
9
91380-05030-00 Bolt |
91380-05030-00 |
from US $2.13 |
||
|
10
|
10
97595-05516-00 Bolt, With Washer |
97595-05516-00 |
from US $1.42 |
||
|
11
|
11
703-82119-00-00 Cover, Lead Wire |
703-82119-00-00 |
from US $2.13 |
||
|
12
|
12
90446-10M82-00 Hose |
90446-10M82-00 |
US $3.68 |
||
| replacement | |||||
|
12
|
12
90446-10M86-00 Hose (L140) |
90446-10M86-00 |
from US $3.68 |
||
|
13
|
13
65W-85410-01-00 Emergency Signal Light Assy |
65W-85410-01-00 |
from US $47.79 |
||
|
14
|
14
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
14
|
14
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
14
|
14
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
15
|
15
65W-81337-00-00
Cover, Flywheel
|
65W-81337-00-00 |
— | ||
|
16
|
16
65W-81639-00-00 Cover |
65W-81639-00-00 |
from US $6.02 |
||
|
17
|
17
97595-06525-00 Bolt |
97595-06525-00 |
US $1.21 |
||
| replacements | |||||
|
17
|
17
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
17
|
17
97E95-06525-00 Bolt, Hexagon W/w Deep Recess |
97E95-06525-00 |
from US $1.18 |
||
|
18
|
18
6G1-42725-00-00 Passe-Fil |
6G1-42725-00-00 |
US $5.24 |
||
|
19
|
19
65W-84342-00-00 Seat, Emblem |
65W-84342-00-00 |
from US $5.24 |
||
|
20
|
20
65W-15758-00-00 Guide, Rope |
65W-15758-00-00 |
US $39.44 |
||
|
20
|
20
65W-15758-10-00
Guide, Rope
|
65W-15758-10-00 |
— | ||
|
21
|
21
65W-15762-00-00 Seal, Rubber 2 |
65W-15762-00-00 |
from US $34.85 |
||
|
22
|
22
65W-15771-00-00 Stay 1 |
65W-15771-00-00 |
from US $11.32 |
||
|
23
|
23
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
23
|
23
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
25
|
25
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
25
|
25
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
