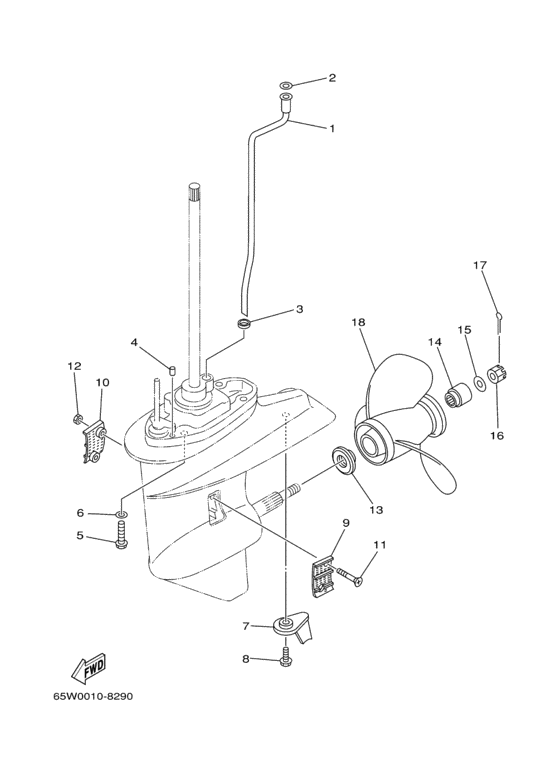

Lower casing drive Diagram Yamaha F25 ES/LH
- Year
- 2000
- Model
- F25
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65W-44361-00-00
Tube, Water
|
65W-44361-00-00 |
— | ||
| replacement | |||||
|
1
|
1
65W-44361-02-00 Tube, Water 1 |
65W-44361-02-00 |
from US $38.41 |
||
|
1
|
1
65W-44361-10-00 Tube, Water 1 |
65W-44361-10-00 |
from US $51.67 |
||
| replacement | |||||
|
1
|
1
65W-44361-12-00 Tube, Water 1 |
65W-44361-12-00 |
from US $38.41 |
||
|
2
|
2
90202-12060-00 Washer, Plate |
90202-12060-00 |
from US $2.77 |
||
|
3
|
3
904-30120-72-00 Gasket |
904-30120-72-00 |
from US $3.38 |
||
|
4
|
4
93606-11M24-00 Pin, Dowel |
93606-11M24-00 |
from US $3.38 |
||
|
5
|
5
90105-10M12-00 Bolt, Flange |
90105-10M12-00 |
from US $7.65 |
||
|
6
|
6
92995-10600-00 Washer, Plate |
92995-10600-00 |
US $0.90 |
||
| replacement | |||||
|
6
|
6
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
7
|
7
61N-45371-00-00 Tab-Trim |
61N-45371-00-00 |
from US $18.70 |
||
|
8
|
8
90119-06M48-00 Bolt, With Washer |
90119-06M48-00 |
from US $4.68 |
||
|
9
|
9
6L2-45214-00-00 Cover, Water Inlet 1 |
6L2-45214-00-00 |
from US $7.23 |
||
|
10
|
10
6L2-45215-00-00 Cover, Water Inlet 2 |
6L2-45215-00-00 |
from US $7.23 |
||
|
11
|
11
90151-05M05-00 Screw, Countersunk |
90151-05M05-00 |
from US $1.70 |
||
|
12
|
12
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
12
|
12
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2.36 |
||
|
13
|
13
6L2-45987-01-00 Spacer 1 |
6L2-45987-01-00 |
from US $28.76 |
||
|
14
|
14
689-45997-00-00 Spacer 2 |
689-45997-00-00 |
from US $16.16 |
||
|
15
|
15
92990-14200-00 Washer, Plain |
92990-14200-00 |
from US $1.42 |
||
|
16
|
16
90171-14013-00 Nut, Castle |
90171-14013-00 |
from US $8.78 |
||
|
17
|
17
91490-30022-00 Pin, Cotter |
91490-30022-00 |
from US $1.13 |
||
| replacement | |||||
|
17
|
17
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
18
|
18
664-45972-00-98 Propeller (3X9-1/8"x12"-F)3X9-1/8"X12"-F |
664-45972-00-98 |
US $710.16 |
||
| replacement | |||||
|
18
|
18
664-45972-00-00 Propeller (3X9-1/8"x12"-F)3X9-1/8"X12"-F |
664-45972-00-00 |
from US $710.16 |
||
|
18
|
18
664-45970-00-98 Propeller (3X9-1/8"x13"-F)3X9-1/8"X13"-F |
664-45970-00-98 |
US $710.16 |
||
| replacement | |||||
|
18
|
18
664-45970-00-00 Propeller (3X9-1/8"x13"-F)3X9-1/8"X13"-F |
664-45970-00-00 |
from US $710.16 |
||
|
18
|
18
664-45945-00-EL Propeller (3X9-7/8"x10-1/2"-F)3X9-7/8"X10-1/2"-F |
664-45945-00-EL |
US $216.91 |
||
| replacement | |||||
|
18
|
18
664-45945-00-00 Propeller (3X9-7/8"x10-1/2"-F)3X9-7/8"X10-1/2"-F |
664-45945-00-00 |
from US $216.91 |
||
|
18
|
18
664-45947-01-EL Propeller (3X9-7/8"x11-1/4"-F)3X9-7/8"X11-1/4"-F |
664-45947-01-EL |
US $216.91 |
||
| replacement | |||||
|
18
|
18
664-45947-01-00 Propeller (3X9-7/8"x11-1/4"-F)3X9-7/8"X11-1/4"-F |
664-45947-01-00 |
from US $216.91 |
||
|
18
|
18
664-45954-00-EL Propeller (3X9-7/8"x12"-F)3X9-7/8"X12"-F |
664-45954-00-EL |
US $216.91 |
||
| replacement | |||||
|
18
|
18
664-45954-01-00 Propeller (3X9-7/8"x12"-F)3X9-7/8"X12"-F |
664-45954-01-00 |
from US $216.91 |
||
|
18
|
18
664-45949-02-EL
Propeller (3X9-7/8"x13"-F)
3X9-7/8"X13"-F |
664-45949-02-EL |
— | ||
| replacement | |||||
|
18
|
18
664-45949-02-00 Propeller (3X9-7/8"x13"-F)3X9-7/8"X13"-F |
664-45949-02-00 |
from US $236.93 |
||
|
18
|
18
664-45952-00-EL Propeller (3X9-7/8"x14"-F)3X9-7/8"X14"-F |
664-45952-00-EL |
US $216.91 |
||
| replacement | |||||
|
18
|
18
664-45952-00-00 Propeller (3X9-7/8"x14"-F)3X9-7/8"X14"-F |
664-45952-00-00 |
from US $216.91 |
||
|
18
|
18
664-45943-01-EL Propeller (3X9-7/8"x8"-F)3X9-7/8"X8"-F |
664-45943-01-EL |
US $216.91 |
||
| replacement | |||||
|
18
|
18
664-45943-01-00 Propeller (3X9-7/8"x8"-F)3X9-7/8"X8"-F |
664-45943-01-00 |
from US $216.91 |
||
|
18
|
18
664-45941-01-EL Propeller (3X9-7/8"x9"-F)3X9-7/8"X9"-F |
664-45941-01-EL |
US $216.91 |
||
| replacement | |||||
|
18
|
18
664-45941-01-00 Propeller (3X9-7/8"x9"-F)3X9-7/8"X9"-F |
664-45941-01-00 |
from US $216.91 |
||
