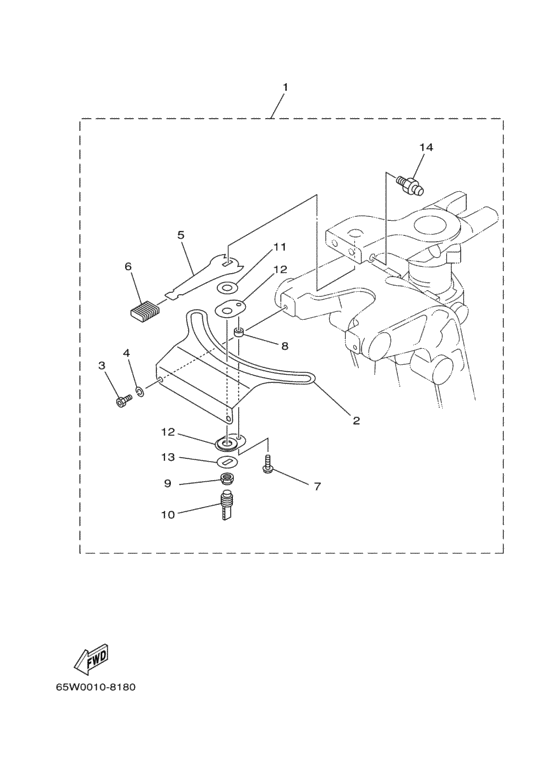

Steering Diagram Yamaha F25 ES/LH
- Year
- 2000
- Model
- F25
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65W-42508-00-00 Steering Friction Assy |
65W-42508-00-00 |
US $230.73 |
||
|
2
|
2
65W-42527-00-00 Plate, Friction |
65W-42527-00-00 |
from US $68.67 |
||
|
3
|
3
90109-06M50-00 Bolt |
90109-06M50-00 |
from US $4.39 |
||
|
4
|
4
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
5
|
5
65W-42561-00-00 Knob, Steering Lock |
65W-42561-00-00 |
from US $7.37 |
||
|
6
|
6
689-43633-00-00 Cover, Tilt Lever |
689-43633-00-00 |
US $4.11 |
||
|
7
|
7
97595-05516-00 Bolt, With Washer |
97595-05516-00 |
from US $1.42 |
||
|
8
|
8
90387-05M11-00 Collar |
90387-05M11-00 |
US $6.43 |
||
| replacement | |||||
|
8
|
8
903-87050-54-00 Collar |
903-87050-54-00 |
from US $6.80 |
||
|
9
|
9
90185-10M14-00 Nut, Self-Locking |
90185-10M14-00 |
from US $14.59 |
||
|
10
|
10
65W-42562-00-00 Shaft, Steering Lock |
65W-42562-00-00 |
from US $13.46 |
||
|
11
|
11
90202-10M56-00 Washer, Plate |
90202-10M56-00 |
from US $1.70 |
||
|
12
|
12
65W-42528-00-00 Plate, Friction |
65W-42528-00-00 |
from US $22.39 |
||
|
13
|
13
90209-10M26-00 Washer |
90209-10M26-00 |
from US $1.84 |
||
|
14
|
14
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
