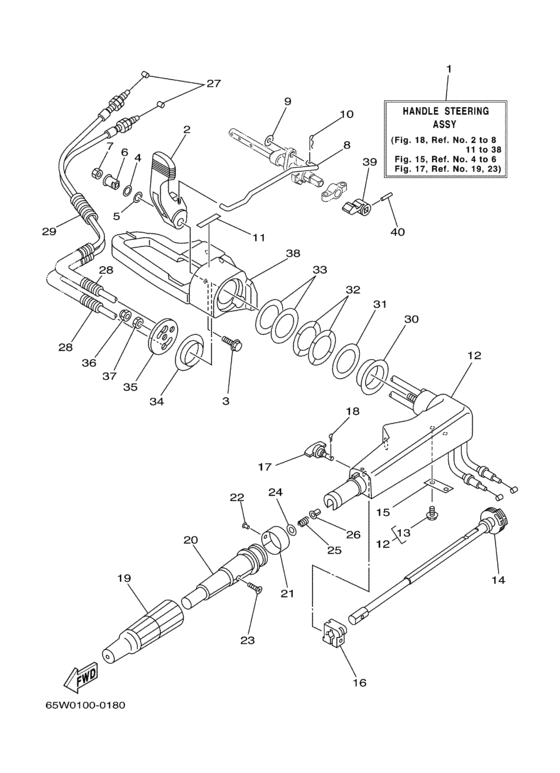

Steering Diagram Yamaha F25 ES/LH
- Year
- 2000
- Model
- F25
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65W-W0084-01-4D Handle Steering Assy |
65W-W0084-01-4D |
US $794.64 |
||
| replacements | |||||
|
1
|
1
65W-W0084-02-4D Handle Steering Assy |
65W-W0084-02-4D |
US $431.10 |
||
|
1
|
1
65W-W0084-02-8D
Handle Steering Assy
|
65W-W0084-02-8D |
— | ||
|
1
|
1
65W-W0084-03-8D Handle Steering Assy |
65W-W0084-03-8D |
US $687.58 |
||
|
2
|
2
65W-44111-00-00 Handle, Gear Shift |
65W-44111-00-00 |
from US $28.66 |
||
|
3
|
3
90119-06M85-00 Bolt, With Washer |
90119-06M85-00 |
from US $4.11 |
||
|
4
|
4
90206-12M00-00 Washer, Wave |
90206-12M00-00 |
from US $3.26 |
||
|
5
|
5
90201-12M07-00 Washer, Plate |
90201-12M07-00 |
from US $1.98 |
||
|
6
|
6
65W-42123-00-00 Bolt, Handle Joint |
65W-42123-00-00 |
from US $16.86 |
||
|
7
|
7
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
8
|
8
65W-44124-00-00 Link, Shift Rod |
65W-44124-00-00 |
from US $27.95 |
||
|
9
|
9
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
10
|
10
90468-18008-00 Clip |
90468-18008-00 |
from US $1.81 |
||
|
11
|
11
6E0-44191-11-00 Indicator, Shift |
6E0-44191-11-00 |
US $4.68 |
||
| replacement | |||||
|
11
|
11
6X3-44191-00-00 Indicator, Shift |
6X3-44191-00-00 |
from US $4.68 |
||
|
12
|
12
65W-42101-01-4D Handle, Steering |
65W-42101-01-4D |
US $96.16 |
||
|
13
|
13
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
14
|
14
65W-42138-00-00 Lever, Throttle |
65W-42138-00-00 |
from US $27.28 |
||
|
15
|
15
65W-42159-00-00 Stay |
65W-42159-00-00 |
from US $5.81 |
||
|
16
|
16
6G1-42126-00-00 Friction, Steering Handle Grip |
6G1-42126-00-00 |
from US $8.64 |
||
| replacement | |||||
|
16
|
16
6EE-G2126-00-00 Friction, Steering |
6EE-G2126-00-00 |
from US $2.98 |
||
|
17
|
17
65W-42125-00-00 Bolt, Friction Adjusting |
65W-42125-00-00 |
from US $10.63 |
||
|
18
|
18
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.70 |
||
|
19
|
19
66M-42177-00-00 Rubber, Handle |
66M-42177-00-00 |
US $22.39 |
||
|
20
|
20
66M-42119-00-00 Grip, Steering Handle |
66M-42119-00-00 |
US $27.61 |
||
| replacement | |||||
|
20
|
20
66M-42119-01-00 Grip, Steering Handle |
66M-42119-01-00 |
from US $28.17 |
||
|
21
|
21
6J0-42137-00-00 Indicator, Throttle |
6J0-42137-00-00 |
US $3.54 |
||
| replacement | |||||
|
21
|
21
6J0-42137-10-00 Indicator, Throttle |
6J0-42137-10-00 |
from US $3.54 |
||
|
22
|
22
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $2.22 |
||
|
23
|
23
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
23
|
23
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.52 |
||
|
24
|
24
92903-10600-00 Washer, Plate |
92903-10600-00 |
US $1.07 |
||
| replacement | |||||
|
24
|
24
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
25
|
25
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
26
|
26
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
27
|
27
65W-26311-00-00 Cable, Throttle 1 |
65W-26311-00-00 |
from US $24.94 |
||
|
28
|
28
90446-10M86-00 Hose (L140) |
90446-10M86-00 |
from US $3.68 |
||
|
29
|
29
90446-14M88-00 Hose |
90446-14M88-00 |
from US $3.83 |
||
|
30
|
30
90386-40MA0-00 Bush |
90386-40MA0-00 |
US $3.68 |
||
| replacement | |||||
|
30
|
30
66R-42171-00-00 Bushing |
66R-42171-00-00 |
from US $2.70 |
||
|
31
|
31
90201-43M00-00 Washer, Plate |
90201-43M00-00 |
from US $2.70 |
||
|
32
|
32
90206-43M22-00 Washer, Wave |
90206-43M22-00 |
from US $9.07 |
||
|
33
|
33
90202-43M57-00 Washer, Plate |
90202-43M57-00 |
from US $2.02 |
||
|
34
|
34
90386-40M99-00 Bush |
90386-40M99-00 |
from US $2.36 |
||
|
35
|
35
65W-42131-01-00 Cover, Handle Steering |
65W-42131-01-00 |
from US $6.94 |
||
|
36
|
36
95780-10300-00 Nut, Flange |
95780-10300-00 |
from US $5.71 |
||
|
37
|
37
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
38
|
38
65W-42121-01-4D Bracket |
65W-42121-01-4D |
US $101.55 |
||
| replacement | |||||
|
38
|
38
65W-42121-01-8D BRACKET |
65W-42121-01-8D |
from US $101.55 |
||
|
39
|
39
65W-44173-00-00 Lever, Shift Control |
65W-44173-00-00 |
US $10.63 |
||
| replacement | |||||
|
39
|
39
65W-44173-01-00 Lever, Shift Control |
65W-44173-01-00 |
from US $9 |
||
|
40
|
40
90254-03M05-00 Pin, Spring |
90254-03M05-00 |
from US $2.55 |
||
