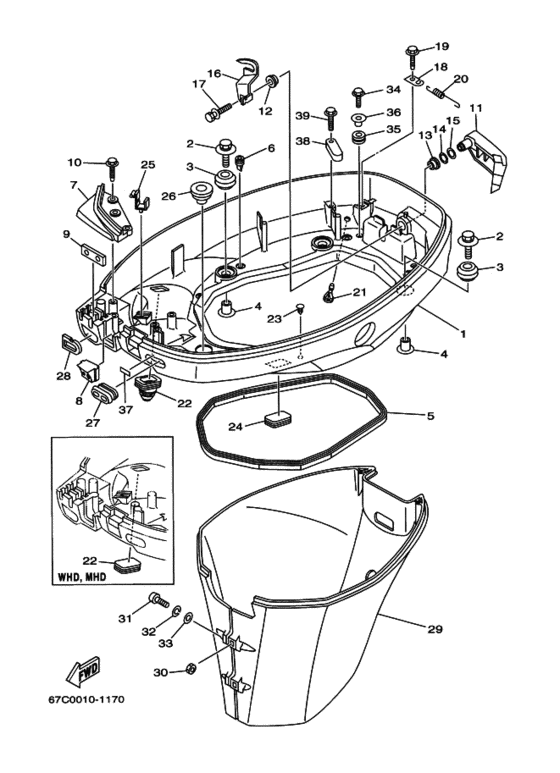

Bottom cowling assy Diagram Yamaha F30 M(E/W/H/D/T)S/L/X
- Year
- 2001
- Model
- F30A
- Model code
- 69H
- Year
- 2001
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 30
- Sales region
- Japan (205)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67C-42710-01-4D Bottom Cowling Assyボトムカウリングアセンブリ; 参照; ＵＲ ＷＨＴ，ＷＨＤ，ＭＨＤ ＊２ |
67C-42710-01-4D |
US $573.87 |
||
| replacement | |||||
|
1
|
1
67C-42710-02-4D Bottom Cowling Assyボトムカウリングアセンブリ; 参照; ＵＲ ＷＨＴ，ＷＨＤ，ＭＨＤ ＊２ |
67C-42710-02-4D |
from US $457.04 |
||
|
1
|
1
67C-42710-11-4D Bottom Cowling Assyボトムカウリングアセンブリ; 参照; ＵＲ ＥＴ ＊１ |
67C-42710-11-4D |
from US $531.05 |
||
| replacement | |||||
|
1
|
1
67C-42710-12-8D Bottom Cowling Assyボトムカウリングアセンブリ; 参照; ＵＲ ＥＴ ＊１ |
67C-42710-12-8D |
US $543.08 |
||
|
2
|
2
90119-06M08-00 Bolt, With Washerボルト，ウイズワツシヤ; |
90119-06M08-00 |
from US $4.39 |
||
| replacement | |||||
|
2
|
2
90119-06295-00 Bolt, With Washerボルト，ウイズワツシヤ; |
90119-06295-00 |
from US $4.86 |
||
|
3
|
3
90480-09M12-00 Grommet |
90480-09M12-00 |
from US $2.36 |
||
|
4
|
4
90387-06M69-00 Collarカラー; |
90387-06M69-00 |
from US $4.11 |
||
|
5
|
5
62Y-42716-00-00 Rubber, Seal 1ラバー，シール １; |
62Y-42716-00-00 |
US $15.58 |
||
|
6
|
6
65W-42717-00-00 Rubber, Seal 2ラバー，シール ２; |
65W-42717-00-00 |
from US $3.97 |
||
|
7
|
7
67C-42738-00-4D Plate, Fittingプレート，フイツテイング; |
67C-42738-00-4D |
US $29.19 |
||
| replacement | |||||
|
7
|
7
67C-42738-00-8D Plate, Fittingプレート，フイツテイング; |
67C-42738-00-8D |
from US $29.19 |
||
|
8
|
8
62Y-42725-00-00 Grommetグロメツト; ＵＲ ＥＴ |
62Y-42725-00-00 |
US $12.47 |
||
|
8
|
8
62Y-42725-20-00 Grommetグロメツト; ＵＲ ＷＨＴ，ＷＨＤ |
62Y-42725-20-00 |
US $9.63 |
||
|
8
|
8
67C-42725-00-00 GrommetＵＲ ＭＨＤ |
67C-42725-00-00 |
from US $12.04 |
||
|
9
|
9
62Y-42727-00-00 Grommetグロメツト; |
62Y-42727-00-00 |
US $7.37 |
||
|
10
|
10
901-0906M-81-00 Bolt |
901-0906M-81-00 |
from US $2.52 |
||
|
11
|
11
67C-42815-00-4D Lever, Clampレバー，クランプ; |
67C-42815-00-4D |
US $21.68 |
||
| replacement | |||||
|
11
|
11
67C-42815-00-8D Lever, Clampレバー，クランプ; |
67C-42815-00-8D |
from US $21.68 |
||
|
12
|
12
90386-12M37-00 Bush |
90386-12M37-00 |
from US $7.79 |
||
|
13
|
13
90386-12MA2-00 Bush |
90386-12MA2-00 |
from US $2.55 |
||
|
14
|
14
902-06120-52-00 Washer, Waveワツシヤ，ウエイブ; |
902-06120-52-00 |
from US $2.70 |
||
|
15
|
15
90201-12M07-00 Washer, Plateワツシヤ，プレート; |
90201-12M07-00 |
from US $1.98 |
||
|
16
|
16
67C-42816-00-00 Lever, Clampレバー，クランプ; |
67C-42816-00-00 |
US $37.45 |
||
| replacements | |||||
|
16
|
16
67C-42816-01-00 Lever, Clampレバー，クランプ; |
67C-42816-01-00 |
from US $36.14 |
||
|
16
|
16
999-99032-58-00 Clamp Leverレバー，クランプ; |
999-99032-58-00 |
US $37.45 |
||
|
17
|
17
90119-06M73-00 Bolt, With Washerボルト，ウイズワツシヤ; |
90119-06M73-00 |
from US $4.12 |
||
| replacements | |||||
|
17
|
17
970-80060-12-00 Boltボルト，ウイズワツシヤ; |
970-80060-12-00 |
from US $2.22 |
||
|
17
|
17
90119-06273-00 ボルト，ウイズワツシヤ; |
90119-06273-00 |
from US $3.40 |
||
|
18
|
18
66T-43144-00-00 Hook, Spring |
66T-43144-00-00 |
from US $3.97 |
||
|
19
|
19
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
20
|
20
90506-18M40-00 Spring, Tension |
90506-18M40-00 |
from US $6.11 |
||
|
21
|
21
6H3-44391-01-00
Nipple, Hose
ニツプル，ホース; |
6H3-44391-01-00 |
— | ||
| replacement | |||||
|
21
|
21
6BL-44391-00-00 Nipple, Hoseニツプル，ホース; |
6BL-44391-00-00 |
from US $0.91 |
||
|
22
|
22
688-42726-10-00 Grommetグロメツト; ＵＲ ＥＴ |
688-42726-10-00 |
US $5 |
||
|
22
|
22
6H1-42726-10-00 Grommetグロメツト; ＵＲ ＷＨＴ |
6H1-42726-10-00 |
from US $6.52 |
||
|
22
|
22
6H4-42726-00-00 Grommetグロメツト; ＵＲ ＷＨＤ，ＭＨＤ |
6H4-42726-00-00 |
US $4.38 |
||
|
23
|
23
90338-07004-00 Plug |
90338-07004-00 |
from US $2.27 |
||
|
24
|
24
6H4-42726-00-00 Grommetグロメツト; ＥＴ，ＷＨＴ |
6H4-42726-00-00 |
US $4.38 |
||
|
25
|
25
904-6409M-13-00
Clamp
|
904-6409M-13-00 |
— | ||
| replacement | |||||
|
25
|
25
90464-15M08-00 Clamp |
90464-15M08-00 |
from US $1.94 |
||
|
26
|
26
676-42727-00-00 Grommetグロメツト; |
676-42727-00-00 |
US $6.94 |
||
|
27
|
27
6H3-42727-00-00 Grommetグロメツト; ＥＴ |
6H3-42727-00-00 |
US $6.38 |
||
|
28
|
28
61N-24329-00-00 Sealシール; |
61N-24329-00-00 |
US $3.26 |
||
| replacement | |||||
|
28
|
28
61N-24329-01-00 Sealシール; |
61N-24329-01-00 |
from US $3.26 |
||
|
29
|
29
67C-42741-10-4D Apron |
67C-42741-10-4D |
US $186.52 |
||
| replacement | |||||
|
29
|
29
67C-42741-10-8D Apron |
67C-42741-10-8D |
from US $177.08 |
||
|
30
|
30
95380-06600-00 Nut, Hexagonナツト，ヘキサゴン; |
95380-06600-00 |
from US $1.18 |
||
|
31
|
31
97880-06025-00 Screw, Pan Head |
97880-06025-00 |
US $1.07 |
||
| replacement | |||||
|
31
|
31
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
32
|
32
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
32
|
32
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
33
|
33
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
34
|
34
95895-06016-00 Bolt, Flange |
95895-06016-00 |
US $1.07 |
||
| replacements | |||||
|
34
|
34
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
34
|
34
95D95-06016-00 Bolt, Flange Deep Re |
95D95-06016-00 |
from US $1.07 |
||
|
34
|
34
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
35
|
35
90480-13M24-00 Grommet |
90480-13M24-00 |
from US $5.13 |
||
|
36
|
36
90387-06M40-00 Collarカラー; |
90387-06M40-00 |
US $12.63 |
||
|
37
|
37
67C-85415-00-00 Mark, Signal LampＷＨＴ，ＷＨＤ，ＭＨＤ |
67C-85415-00-00 |
from US $2.83 |
||
|
38
|
38
6E5-82588-00-00 Plateプレート; |
6E5-82588-00-00 |
from US $5.97 |
||
|
39
|
39
901-0906M-81-00 Bolt |
901-0906M-81-00 |
from US $2.52 |
||
