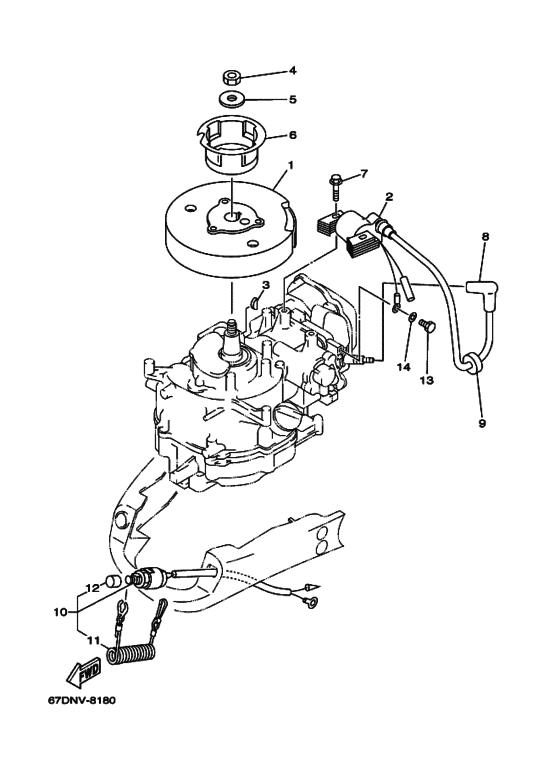

Generatrice Diagram Yamaha F4 MHS/L
- Year
- 1998
- Model
- F4A
- Model code
- 67D
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 4
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67D-85650-00-00 Rotor Assy |
67D-85650-00-00 |
from US $315.09 |
||
|
2
|
2
67D-85640-00-00 T.c.i. Unit Assy |
67D-85640-00-00 |
from US $142.30 |
||
|
3
|
3
90280-04M06-00 Key, Woodruff |
90280-04M06-00 |
from US $5.13 |
||
|
4
|
4
90170-10M33-00 Nut |
90170-10M33-00 |
from US $3.26 |
||
|
5
|
5
90201-105A2-00 Washer, Plate (4X7) |
90201-105A2-00 |
from US $1.70 |
||
|
6
|
6
67D-15723-00-00 Pulley, Starter |
67D-15723-00-00 |
from US $21.39 |
||
|
7
|
7
90105-06M24-00 Bolt, Washer Based |
90105-06M24-00 |
from US $2.16 |
||
|
8
|
8
6E3-82370-20-00
Plug Cap Assy
|
6E3-82370-20-00 |
— | ||
| replacement | |||||
|
8
|
8
6E3-82370-21-00 Plug Cap Assy |
6E3-82370-21-00 |
from US $15.53 |
||
|
9
|
9
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
10
|
10
67D-82575-00-00 Engine Stop Switch Assy |
67D-82575-00-00 |
from US $109.15 |
||
|
11
|
11
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
12
|
12
689-8257Y-00-00 Cap |
689-8257Y-00-00 |
from US $4.82 |
||
|
13
|
13
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
13
|
13
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
14
|
14
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
