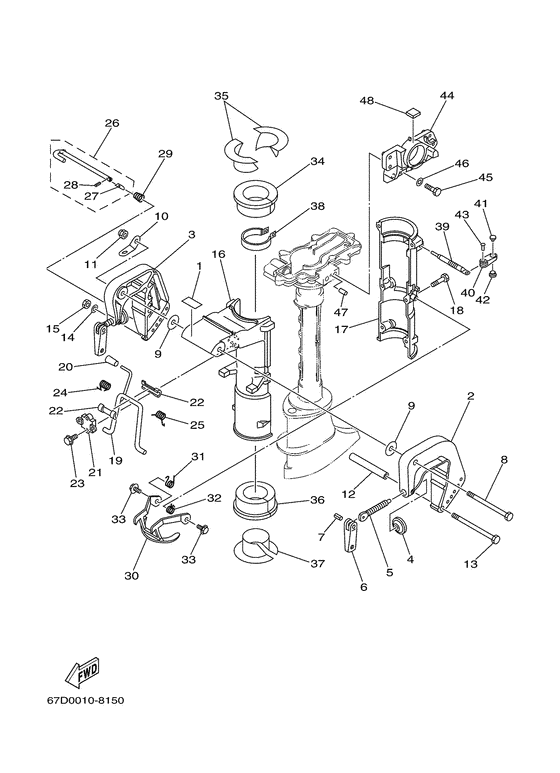

Bracket 1 Diagram Yamaha F4 MHS/L
- Year
- 2000
- Model
- F4A
- Model code
- 67D
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 4
- Sales region
- Europe (General) (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
67D-24591-01-00 Emblem, Fuel Cock |
67D-24591-01-00 |
US $7.78 |
||
|
02
|
02
6E0-43111-02-4D
Bracket, Clamp 1
|
6E0-43111-02-4D |
— | ||
| replacement | |||||
|
02
|
02
6E0-43111-02-8D BRACKET, CLAMP 1 |
6E0-43111-02-8D |
from US $104.38 |
||
|
03
|
03
6E0-43112-01-4D
Bracket, Clamp 2
|
6E0-43112-01-4D |
— | ||
| replacement | |||||
|
03
|
03
6E0-43112-01-8D BRACKET, CLAMP 2 |
6E0-43112-01-8D |
from US $104.38 |
||
|
04
|
04
620-43114-00-00
Pad, Transom Clamp
|
620-43114-00-00 |
— | ||
| replacement | |||||
|
04
|
04
648-43114-01-00 Pad, Transom Clamp |
648-43114-01-00 |
from US $5.74 |
||
|
05
|
05
6E0-43116-01-00 Screw, Transom Clamp |
6E0-43116-01-00 |
from US $14.84 |
||
|
06
|
06
6E0-43118-01-00
Handle, Transom Clamp
|
6E0-43118-01-00 |
— | ||
| replacements | |||||
|
06
|
06
6L8-G3118-01-00 Handle Transom Clamp |
6L8-G3118-01-00 |
US $11.93 |
||
|
06
|
06
6EE-G3118-00-00 Handle, Transom Clamp |
6EE-G3118-00-00 |
from US $6.89 |
||
|
07
|
07
90243-04M01-00 Pin |
90243-04M01-00 |
from US $2.64 |
||
|
08
|
08
90101-08M07-00 Bolt |
90101-08M07-00 |
from US $11.76 |
||
|
09
|
09
90202-08M58-00 Washer, Plate |
90202-08M58-00 |
from US $4.82 |
||
|
10
|
10
6A1-43113-01-00 Plate, Clamp Bracket |
6A1-43113-01-00 |
from US $6.94 |
||
|
11
|
11
901-85080-57-00
Nut, Self-Locking
|
901-85080-57-00 |
— | ||
| replacement | |||||
|
11
|
11
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
12
|
12
903-8706M-11-00
Collar
|
903-8706M-11-00 |
— | ||
| replacement | |||||
|
12
|
12
6EE-G3122-00-00 Collar Clamp Brack |
6EE-G3122-00-00 |
US $23.80 |
||
|
13
|
13
90101-06335-00 Bolt |
90101-06335-00 |
from US $8.22 |
||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
15
|
15
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
16
|
16
67D-43311-00-4D Bracket, Swivel 1 |
67D-43311-00-4D |
US $190.66 |
||
| replacement | |||||
|
16
|
16
6EE-G3311-00-8D BRACKET, SWIVEL 1 |
6EE-G3311-00-8D |
from US $187.52 |
||
|
17
|
17
67D-43312-00-4D Bracket, Swivel 2 |
67D-43312-00-4D |
US $77.78 |
||
| replacements | |||||
|
17
|
17
6EE-G3312-00-4D Bracket, Swivel 2 |
6EE-G3312-00-4D |
US $77.78 |
||
|
17
|
17
6EE-G3312-00-8D BRACKET, SWIVEL 2 |
6EE-G3312-00-8D |
from US $77.78 |
||
|
18
|
18
958-95060-35-00
Bolt, Flange
|
958-95060-35-00 |
— | ||
| replacement | |||||
|
18
|
18
95880-06035-00 Bolt, Flange |
95880-06035-00 |
from US $1.70 |
||
|
19
|
19
6E0-43181-00-00 Lever, Tilt Stop 1 |
6E0-43181-00-00 |
from US $30.89 |
||
|
20
|
20
6E0-43632-00-00 Knob, Tilt |
6E0-43632-00-00 |
from US $4.68 |
||
|
21
|
21
6E0-43313-00-94 Bracket, Swivel 3 |
6E0-43313-00-94 |
from US $11.33 |
||
|
22
|
22
620-43189-00-00 Bushing |
620-43189-00-00 |
from US $6.52 |
||
|
23
|
23
95895-06020-00 Bolt, Flange |
95895-06020-00 |
US $1.42 |
||
| replacements | |||||
|
23
|
23
95880-06020-00 Bolt, Flange(Jk3) |
95880-06020-00 |
from US $1.56 |
||
|
23
|
23
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
23
|
23
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
24
|
24
90508-16020-00 Spring, Torsion |
90508-16020-00 |
from US $6.80 |
||
|
25
|
25
90508-16021-00 Spring, Torsion |
90508-16021-00 |
from US $4.11 |
||
|
26
|
26
6E0-43160-01-00 Tilt Rod Assy |
6E0-43160-01-00 |
from US $30.98 |
||
|
27
|
27
689-43165-00-00 Plate, Tilt Lock |
689-43165-00-00 |
from US $5.95 |
||
| replacement | |||||
|
27
|
27
6EE-G3165-00-00 Plate, Tilt Lock |
6EE-G3165-00-00 |
from US $5.38 |
||
|
28
|
28
91690-30008-00 Pin, Spring |
91690-30008-00 |
from US $1.56 |
||
|
29
|
29
90502-08M05-00 Spring, Conical |
90502-08M05-00 |
from US $1.94 |
||
|
30
|
30
6E0-43614-00-5B Plate, Tilt Lock |
6E0-43614-00-5B |
US $37.17 |
||
| replacement | |||||
|
30
|
30
6E0-43614-00-CA Plate, Tilt Lock |
6E0-43614-00-CA |
from US $37.17 |
||
|
31
|
31
90508-14M10-00 Spring, Torsion |
90508-14M10-00 |
from US $4.11 |
||
|
32
|
32
905-0814M-11-00 Spring, Torsion |
905-0814M-11-00 |
from US $3.12 |
||
|
33
|
33
95895-06010-00 Bolt, Flange |
95895-06010-00 |
US $2.13 |
||
| replacement | |||||
|
33
|
33
95880-06010-00 Bolt, Flange |
95880-06010-00 |
from US $1.56 |
||
|
34
|
34
67D-42537-00-00
Bushing, Pivot Shaft
|
67D-42537-00-00 |
— | ||
| replacement | |||||
|
34
|
34
6EE-G2537-00-00 Bushing, Pivot Sha |
6EE-G2537-00-00 |
from US $22.88 |
||
|
35
|
35
67D-42539-00-00 Bushing, Pivot Shaft |
67D-42539-00-00 |
from US $11.02 |
||
| replacement | |||||
|
35
|
35
6EE-G2539-00-00 Bushing, Pivot Shaft |
6EE-G2539-00-00 |
from US $8.60 |
||
|
36
|
36
67D-42538-00-00 Bushing, Pivot Shaft |
67D-42538-00-00 |
US $28.34 |
||
| replacement | |||||
|
36
|
36
68D-G2538-00-00 Bushing, Pivot Shaft |
68D-G2538-00-00 |
from US $28.34 |
||
|
37
|
37
67D-42549-00-00
Bushing, Pivot Shaft
|
67D-42549-00-00 |
— | ||
| replacement | |||||
|
37
|
37
68D-G2549-00-00 Bushing, Pivot Shaft |
68D-G2549-00-00 |
from US $15.44 |
||
|
38
|
38
6E0-42528-03-00 Plate, Friction |
6E0-42528-03-00 |
US $12.04 |
||
| replacement | |||||
|
38
|
38
6E0-42528-04-00 Plate, Friction |
6E0-42528-04-00 |
from US $12.04 |
||
|
39
|
39
6L5-42529-01-00 Screw, Friction Piece |
6L5-42529-01-00 |
from US $10.20 |
||
|
40
|
40
6L5-42561-00-00 Knob, Steering Lock |
6L5-42561-00-00 |
from US $6.23 |
||
|
41
|
41
6L5-44196-00-00 Indicator 3 |
6L5-44196-00-00 |
from US $1.98 |
||
|
42
|
42
6L5-44197-00-00 Indicator 4 |
6L5-44197-00-00 |
from US $2.13 |
||
|
43
|
43
90266-04M05-00 Rivet |
90266-04M05-00 |
from US $1.84 |
||
|
44
|
44
67D-42511-00-4D Bracket, Steering |
67D-42511-00-4D |
US $109.56 |
||
| replacement | |||||
|
44
|
44
68D-G2511-00-4D Bracket, Steering |
68D-G2511-00-4D |
from US $109.56 |
||
|
45
|
45
97075-08030-00 Bolt |
97075-08030-00 |
US $2.91 |
||
| replacement | |||||
|
45
|
45
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
46
|
46
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
46
|
46
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
47
|
47
93604-12M07-00 Pin, Dowel |
93604-12M07-00 |
US $1.94 |
||
| replacement | |||||
|
47
|
47
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.94 |
||
|
48
|
48
67D-42662-00-00 Damper |
67D-42662-00-00 |
US $4 |
||
