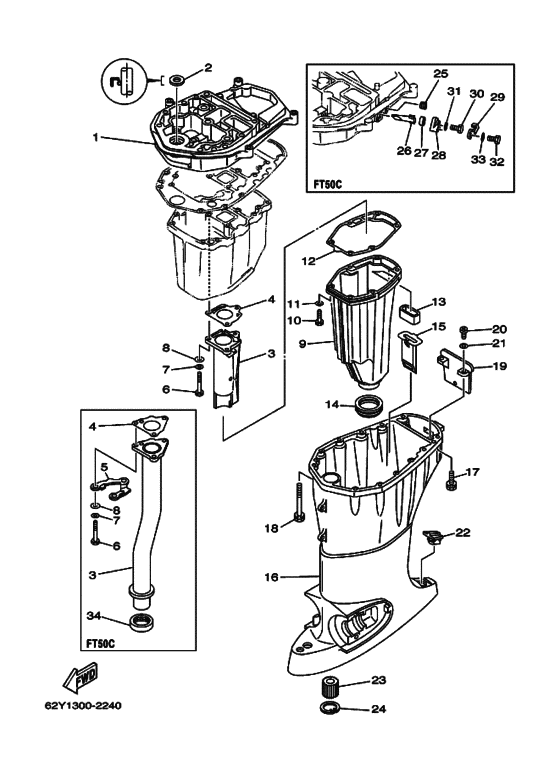

Upper casing Diagram Yamaha F50 E(D/T/H)L/X
- Year
- 2002
- Model
- F50A
- Model code
- 62Y
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 50
- Sales region
- Europe (090)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62Y-41137-10-94 Guide, ExhaustF40A,F50A |
62Y-41137-10-94 |
US $629.64 |
||
| replacement | |||||
|
1
|
1
62Y-41137-11-CA Guide, ExhaustF40A,F50A |
62Y-41137-11-CA |
from US $223.70 |
||
|
2
|
2
93103-18011-00 Oil Seal |
93103-18011-00 |
from US $24.14 |
||
|
3
|
3
67C-41131-00-5B Manifold, Ext. 1F40A,F50A |
67C-41131-00-5B |
US $186.52 |
||
| replacement | |||||
|
3
|
3
67C-41131-00-CA Manifold, Ext. 1F40A,F50A |
67C-41131-00-CA |
from US $204.51 |
||
|
4
|
4
67C-41133-00-00 Gasket, Exhaust Manifold 1F40A,F50A |
67C-41133-00-00 |
from US $8.05 |
||
|
6
|
6
97075-06050-00 Bolt |
97075-06050-00 |
US $3.26 |
||
| replacement | |||||
|
6
|
6
970-80060-50-00 Bolt |
970-80060-50-00 |
from US $3.26 |
||
|
7
|
7
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
8
|
8
90201-06015-00 Washer, Plate |
90201-06015-00 |
from US $1.94 |
||
|
9
|
9
62Y-14711-00-5B Muffler 1F40A,F50A |
62Y-14711-00-5B |
US $131.80 |
||
| replacement | |||||
|
9
|
9
62Y-14711-00-CA Muffler 1F40A,F50A |
62Y-14711-00-CA |
US $131.80 |
||
|
10
|
10
97075-06025-00 Bolt |
97075-06025-00 |
US $1.35 |
||
| replacement | |||||
|
10
|
10
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
11
|
11
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
12
|
12
62Y-41134-01-00 Gasket, Exhaust Manifold |
62Y-41134-01-00 |
US $12.91 |
||
| replacement | |||||
|
12
|
12
6BG-41134-00-00 Gasket, Exhaust Manifold |
6BG-41134-00-00 |
from US $12.91 |
||
|
13
|
13
62Y-45127-00-00 Seal |
62Y-45127-00-00 |
US $5.13 |
||
|
14
|
14
663-45123-00-00 Gasket, Muffler |
663-45123-00-00 |
from US $20.94 |
||
|
16
|
16
62Y-45111-21-4D Casing, Upper |
62Y-45111-21-4D |
US $644.16 |
||
| replacement | |||||
|
16
|
16
62Y-45111-21-8D Casing, Upper |
62Y-45111-21-8D |
from US $644.16 |
||
|
17
|
17
90119-08M79-00 Bolt, With Washer |
90119-08M79-00 |
US $3.97 |
||
| replacement | |||||
|
17
|
17
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
18
|
18
90119-08M82-00 Bolt, With Washer |
90119-08M82-00 |
from US $7.23 |
||
|
19
|
19
62Y-45151-00-00 Cover, Upper Casing |
62Y-45151-00-00 |
from US $4.68 |
||
|
20
|
20
97880-05016-00 Screw, Pan Head |
97880-05016-00 |
US $1.42 |
||
| replacement | |||||
|
20
|
20
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
21
|
21
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
22
|
22
6H3-45155-00-00 Cap |
6H3-45155-00-00 |
US $2.41 |
||
| replacements | |||||
|
22
|
22
6C5-45155-00-00 Cap |
6C5-45155-00-00 |
from US $2.64 |
||
|
22
|
22
6C5-45155-01-00 CAP |
6C5-45155-01-00 |
US $2.64 |
||
|
22
|
22
6C5-45155-02-00 Cap |
6C5-45155-02-00 |
from US $2.64 |
||
|
22
|
22
6C5-45155-02-00 Cap |
6C5-45155-02-00 |
from US $2.64 |
||
|
23
|
23
62Y-45318-00-00
Bushing, Drive Shaft
|
62Y-45318-00-00 |
— | ||
|
24
|
24
93420-36M01-00 Circlip |
93420-36M01-00 |
from US $6.06 |
||
