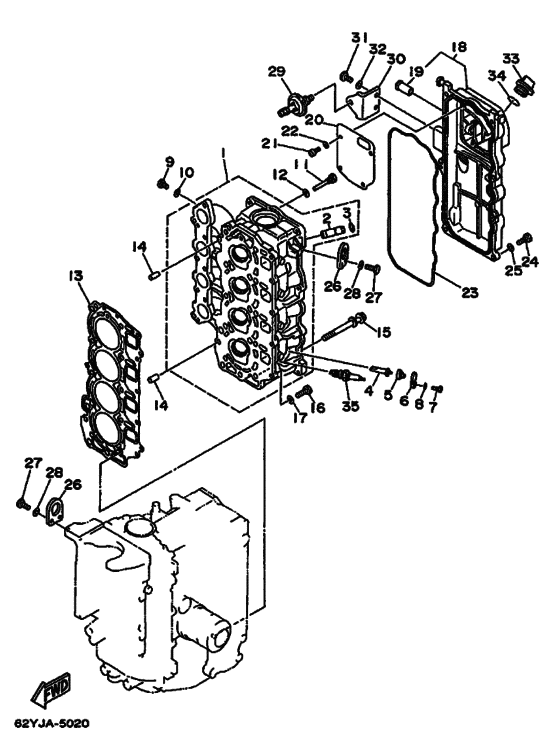

Cylinder & crankcase 2 Diagram Yamaha F50 E(D/T/H)L/X
- Year
- 1995
- Model
- F50A
- Model code
- 62Y
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 50
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62Y-11111-00-94
Head, Cylinder 1
|
62Y-11111-00-94 |
— | ||
| replacement | |||||
|
1
|
1
62Y-11111-12-94
Head, Cylinder 1
|
62Y-11111-12-94 |
— | ||
|
2
|
2
62Y-11133-10-00 Guide, Valve 1 |
62Y-11133-10-00 |
US $12.61 |
||
| replacements | |||||
|
2
|
2
62Y-11133-30-00 Guide, Intake Valve |
62Y-11133-30-00 |
US $12.61 |
||
|
2
|
2
62Y-11133-31-00 Guide, Valve 1 |
62Y-11133-31-00 |
from US $13.31 |
||
|
3
|
3
93450-09M01-00 Circlip |
93450-09M01-00 |
from US $1.49 |
||
|
4
|
4
6J8-11325-00-00 Anode |
6J8-11325-00-00 |
from US $6.39 |
||
|
5
|
5
62Y-11328-00-00 Grommet, Anode |
62Y-11328-00-00 |
US $6.94 |
||
|
6
|
6
6H3-11327-00-94 Cover, Anode |
6H3-11327-00-94 |
from US $18.99 |
||
|
7
|
7
97013-06020-00 Bolt |
97013-06020-00 |
from US $1.42 |
||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
9
|
9
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
9
|
9
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
10
|
10
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
11
|
11
90109-06M65-00 Bolt |
90109-06M65-00 |
from US $22.67 |
||
|
12
|
12
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
13
|
13
62Y-11181-00-00 Gasket, Cylinder Head 1 |
62Y-11181-00-00 |
from US $62.18 |
||
|
14
|
14
995-10080-12-00
Pin, Dowel
|
995-10080-12-00 |
— | ||
| replacement | |||||
|
14
|
14
91808-12024-00 Pin, Dowel |
91808-12024-00 |
from US $1.84 |
||
|
15
|
15
90119-09M00-00 Bolt, With Washer |
90119-09M00-00 |
from US $8.19 |
||
|
16
|
16
97013-06025-00 Bolt |
97013-06025-00 |
from US $1.48 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
18
|
18
62Y-11191-00-9M Cover, Cylinder Head 1 |
62Y-11191-00-9M |
US $183.75 |
||
| replacements | |||||
|
18
|
18
62Y-11191-01-9S Cover, Cylinder Head 1 |
62Y-11191-01-9S |
US $183.75 |
||
|
18
|
18
62Y-11191-02-9S Cover, Cylinder Head |
62Y-11191-02-9S |
from US $152.98 |
||
|
19
|
19
62Y-14485-00-00 Pipe, Joint |
62Y-14485-00-00 |
from US $14.03 |
||
|
20
|
20
62Y-11168-00-00 Cover, Breather |
62Y-11168-00-00 |
from US $5.38 |
||
|
21
|
21
98507-04010-00 Screw, Pan Head |
98507-04010-00 |
from US $1.39 |
||
|
22
|
22
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
23
|
23
62Y-11356-00-00 Seal, Cylinder 2 |
62Y-11356-00-00 |
from US $15.50 |
||
|
24
|
24
97013-06020-00 Bolt |
97013-06020-00 |
from US $1.42 |
||
|
25
|
25
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
26
|
26
62Y-11119-00-00 Hanger, Engine |
62Y-11119-00-00 |
from US $10.34 |
||
|
27
|
27
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
27
|
27
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
29
|
29
62Y-14368-00-00
Diaphragm Assembly 1
|
62Y-14368-00-00 |
— | ||
| replacement | |||||
|
29
|
29
62Y-14368-01-00
Diaphragm Assy 1
|
62Y-14368-01-00 |
— | ||
|
30
|
30
62Y-14413-00-00
Stay
|
62Y-14413-00-00 |
— | ||
|
31
|
31
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
31
|
31
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
32
|
32
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
33
|
33
6G8-15363-00-00 Plug, Oil |
6G8-15363-00-00 |
from US $8.05 |
||
|
34
|
34
932-1024M-79-00
O-Ring
|
932-1024M-79-00 |
— | ||
| replacements | |||||
|
34
|
34
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $3.04 |
||
|
34
|
34
93210-24800-00 O-Ring |
93210-24800-00 |
from US $2.29 |
||
|
35
|
35
94701-00375-00 Plug, Spark (Ngk Dpr6Ea-9) |
94701-00375-00 |
US $8.42 |
||
| replacement | |||||
|
35
|
35
DPR-6EA90-00-00 Plug, Spark (Ngk Dpr6Eb) |
DPR-6EA90-00-00 |
US $68.90 |
||
