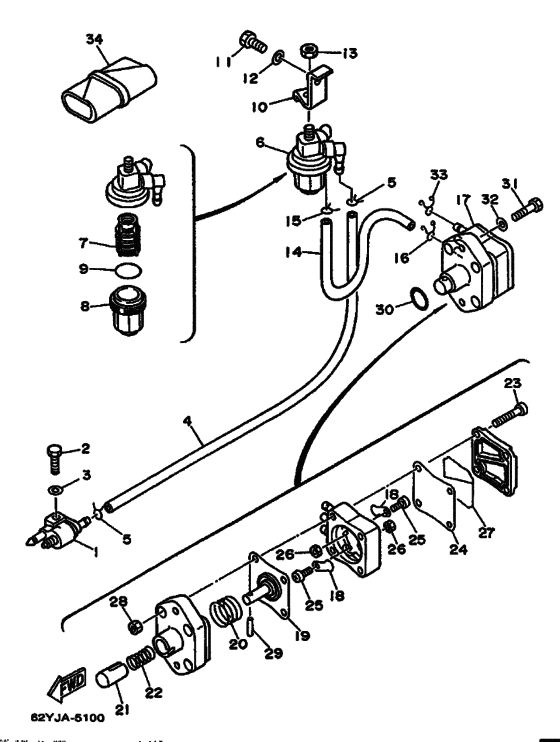

Fuel Diagram Yamaha F50 E(D/T/H)L/X
- Year
- 1995
- Model
- F50A
- Model code
- 62Y
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 50
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-24304-02-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-02-00 |
US $29.47 |
||
| replacements | |||||
|
1
|
1
6G1-24304-10-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-10-00 |
US $32.74 |
||
|
1
|
1
6G1-24304-11-00 FUEL PIPE JOINT COMP 1 |
6G1-24304-11-00 |
from US $26.03 |
||
|
2
|
2
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
2
|
2
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
3
|
3
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
4
|
4
90445-10M34-00 Hose (L550) |
90445-10M34-00 |
from US $38.27 |
||
| replacement | |||||
|
4
|
4
90445-10MA9-00 Hose (L1040) |
90445-10MA9-00 |
from US $38.27 |
||
|
5
|
5
90467-09M03-00 Clip |
90467-09M03-00 |
US $1.84 |
||
| replacement | |||||
|
5
|
5
90467-09M09-00 Clip(6K8) |
90467-09M09-00 |
from US $1.71 |
||
|
6
|
6
61N-24560-00-00 Filter Assy |
61N-24560-00-00 |
US $41.86 |
||
| replacement | |||||
|
6
|
6
61N-24560-10-00 Filter Assy |
61N-24560-10-00 |
from US $25.92 |
||
|
7
|
7
61N-24563-00-00 Element, Filter |
61N-24563-00-00 |
from US $7.49 |
||
| replacement | |||||
|
7
|
7
61N-24563-10-00 Element, Filter |
61N-24563-10-00 |
from US $7.49 |
||
|
8
|
8
61N-24521-00-00 Cup, Filter |
61N-24521-00-00 |
from US $13.46 |
||
|
9
|
9
93210-32738-00 O-Ring |
93210-32738-00 |
from US $1.39 |
||
|
10
|
10
62Y-24566-00-00 Bracket, Filter |
62Y-24566-00-00 |
US $9.35 |
||
| replacement | |||||
|
10
|
10
62Y-24566-01-00 Bracket, Filter |
62Y-24566-01-00 |
from US $9.35 |
||
|
11
|
11
97095-08014-00 Bolt |
97095-08014-00 |
US $1.07 |
||
| replacements | |||||
|
11
|
11
97D95-08014-00 Bolt, Hexagon Deep R |
97D95-08014-00 |
from US $1.07 |
||
|
11
|
11
97D95-08014-00 Bolt, Hexagon Deep R |
97D95-08014-00 |
from US $1.07 |
||
|
12
|
12
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
13
|
13
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
13
|
13
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
13
|
13
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
14
|
14
90445-10M48-00 Hose |
90445-10M48-00 |
US $6.38 |
||
| replacements | |||||
|
14
|
14
90445-10M43-00 Hose (L400) |
90445-10M43-00 |
from US $6.94 |
||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
90467-09M03-00 Clip |
90467-09M03-00 |
US $1.84 |
||
| replacement | |||||
|
15
|
15
90467-09M09-00 Clip(6K8) |
90467-09M09-00 |
from US $1.71 |
||
|
16
|
16
90467-10M04-00 Clip |
90467-10M04-00 |
from US $2.91 |
||
|
17
|
17
62Y-24410-00-00 Fuel Pump Assembly |
62Y-24410-00-00 |
US $142.30 |
||
| replacement | |||||
|
17
|
17
62Y-24410-04-00 Fuel Pump Assy |
62Y-24410-04-00 |
from US $127.17 |
||
|
18
|
18
6A0-24421-00-00 Valve, Check |
6A0-24421-00-00 |
US $20.69 |
||
| replacement | |||||
|
18
|
18
62Y-24421-01-00 Valve, Check |
62Y-24421-01-00 |
from US $8.08 |
||
|
19
|
19
62Y-24411-00-00 Diaphragm |
62Y-24411-00-00 |
US $70.60 |
||
| replacement | |||||
|
19
|
19
62Y-24411-02-00 Diaphragm |
62Y-24411-02-00 |
from US $78.30 |
||
|
20
|
20
62Y-24423-00-00 Spring, Diaphragm |
62Y-24423-00-00 |
from US $7.08 |
||
|
21
|
21
62Y-13131-00-00 Plunger |
62Y-13131-00-00 |
from US $45.56 |
||
|
22
|
22
62Y-24454-00-00 Spring |
62Y-24454-00-00 |
from US $6.94 |
||
|
23
|
23
62Y-24444-00-00
Screw
|
62Y-24444-00-00 |
— | ||
|
24
|
24
62Y-24471-00-00 Diaphragm |
62Y-24471-00-00 |
from US $19.33 |
||
|
25
|
25
6A0-14325-00-00 Screw, Pan Head |
6A0-14325-00-00 |
from US $4.11 |
||
|
26
|
26
95380-03600-00 Nut |
95380-03600-00 |
from US $1.56 |
||
|
27
|
27
62Y-24452-00-00 Packing |
62Y-24452-00-00 |
from US $14.45 |
||
|
28
|
28
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
29
|
29
62Y-24374-00-00 Pin |
62Y-24374-00-00 |
US $6.80 |
||
| replacement | |||||
|
29
|
29
62Y-24374-01-00 Pin |
62Y-24374-01-00 |
from US $6.80 |
||
|
30
|
30
932-1024M-79-00
O-Ring
|
932-1024M-79-00 |
— | ||
| replacements | |||||
|
30
|
30
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $3.04 |
||
|
30
|
30
93210-24800-00 O-Ring |
93210-24800-00 |
from US $2.29 |
||
|
31
|
31
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
31
|
31
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
32
|
32
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
33
|
33
90467-10M04-00 Clip |
90467-10M04-00 |
from US $2.91 |
||
|
34
|
34
62Y-28100-00-00 Tool Kit |
62Y-28100-00-00 |
US $37.17 |
||
